Off-(On) Vandal Resistant 19mm Metal Push Button Switch SPST

Off-(On) Vandal Resistant 19mm Metal Push Button Switch SPST
Off-(On) Vandal Resistant 19mm Metal Push Button Switch SPST
Off-(On) Vandal Resistant 19mm Metal Push Button Switch SPST
Off-(On) Vandal Resistant 19mm Metal Push Button Switch SPST
Off-(On) Vandal Resistant 19mm Metal Push Button Switch SPST
0 reviews - Write a review
from
$3.33
Ex Tax: $3.33
25 or more $2.90
100 or more $2.62
250 or more $2.40
500 or more $2.22
  • Stock: In Stock
  • Model: SCJ011581
  • SKU: SCJ011581
Products Sold: 0
Product Views: 22
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
Contact ConfigurationSPST
Contact Rating4A 125VAC, 2A 250VAC
Current Rating4A
IlluminatedNo
Electrical Life50,000 Cycles
Mounting StylePanel
Number of Poles1
Number of Positions2
Operating Temperature-25°C to +85°C
Panel Cut Out19mm
Switch OperationOff-(On)
Terminal TypeScrew
Voltage Rating250VAC
  • Description

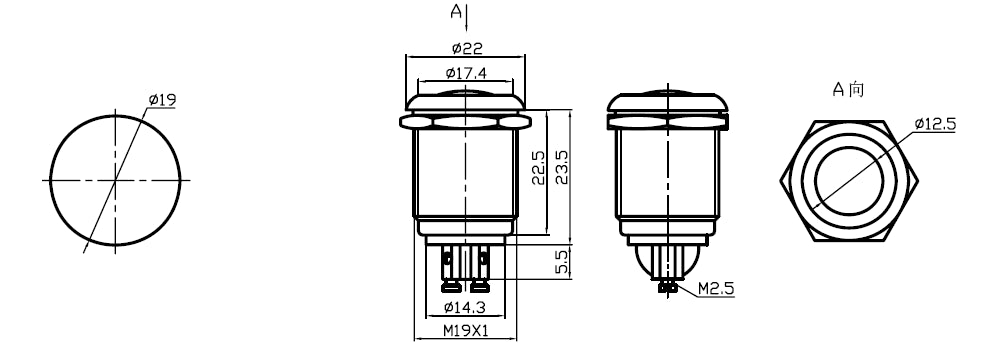

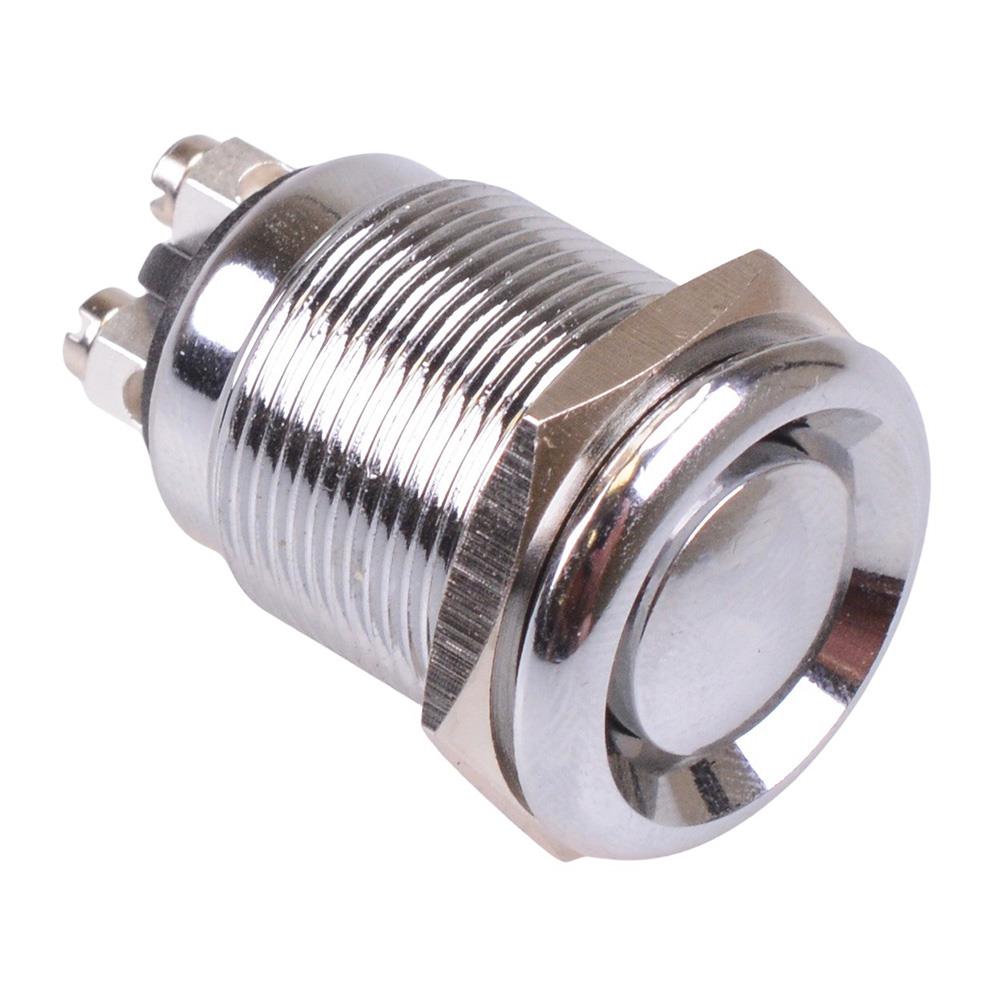

Momentary anti vandal push button switch featuring a metal body and screw terminals. The switch features a recessed design and requires a 19mm panel cut-out diameter, suitable for a wide range of applications including automotive.

  • Off-(On) momentary action
  • SPST contacts
  • Rating: 4A 125VAC, 2A 250VAC
  • Metal body
  • Screw terminals
  • Panel cut-out: 19mm
  • Diameter: 22mm

    • Off-(On) Vandal Resistant 19mm Metal Push Button Switch SPST

    Off-(On) Vandal Resistant 19mm Metal Push Button Switch SPST
