On-Off Latching 12mm Flat Push Button Switch Stainless Steel IP65

On-Off Latching 12mm Flat Push Button Switch Stainless Steel IP65 1

Buy Now

Specifications

Attributes List
Actuation	Latching
MOQ	1
Contact Configuration	SPST
Contact Rating	2A 250VAC
Current Rating	2A
Illuminated	No
Electrical Life	50,000 Cycles
Material	Stainless Steel
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +65°C
Panel Cut Out	12mm
Panel Thickness	14mm Max
Switch Operation	On-Off
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

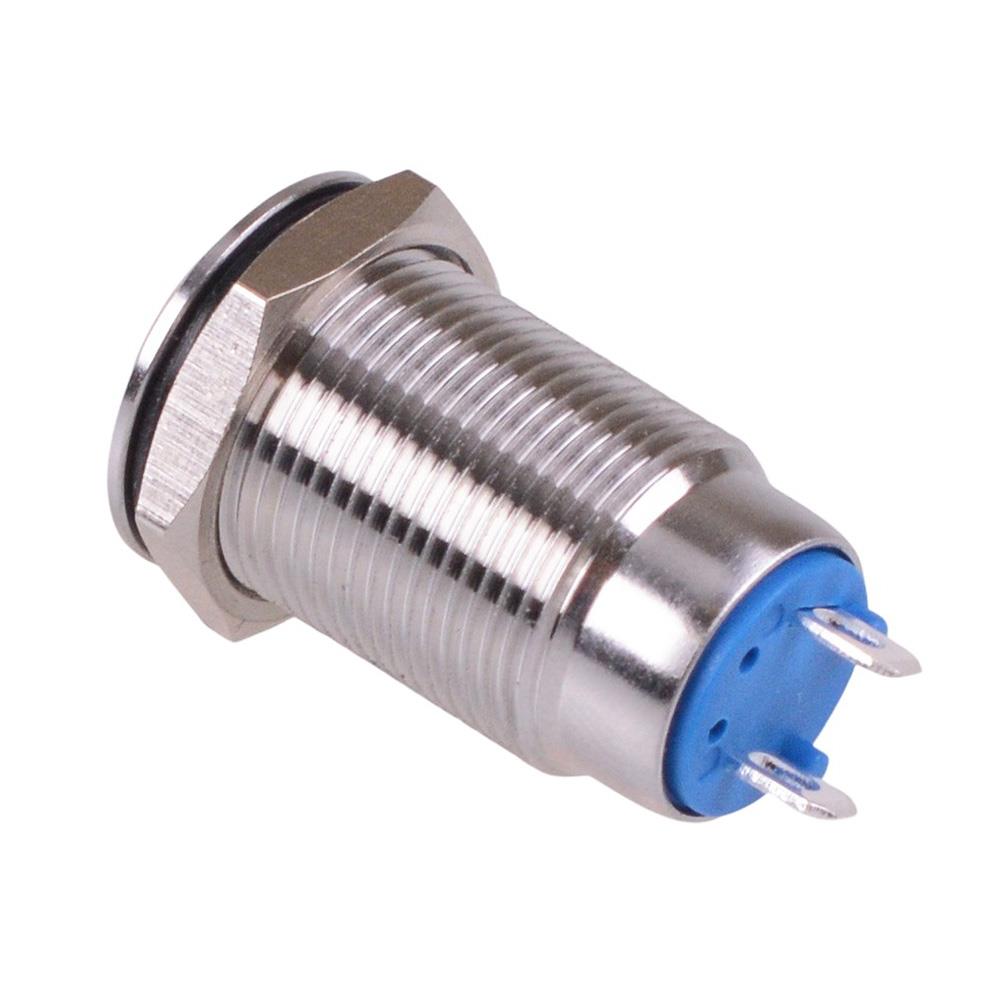

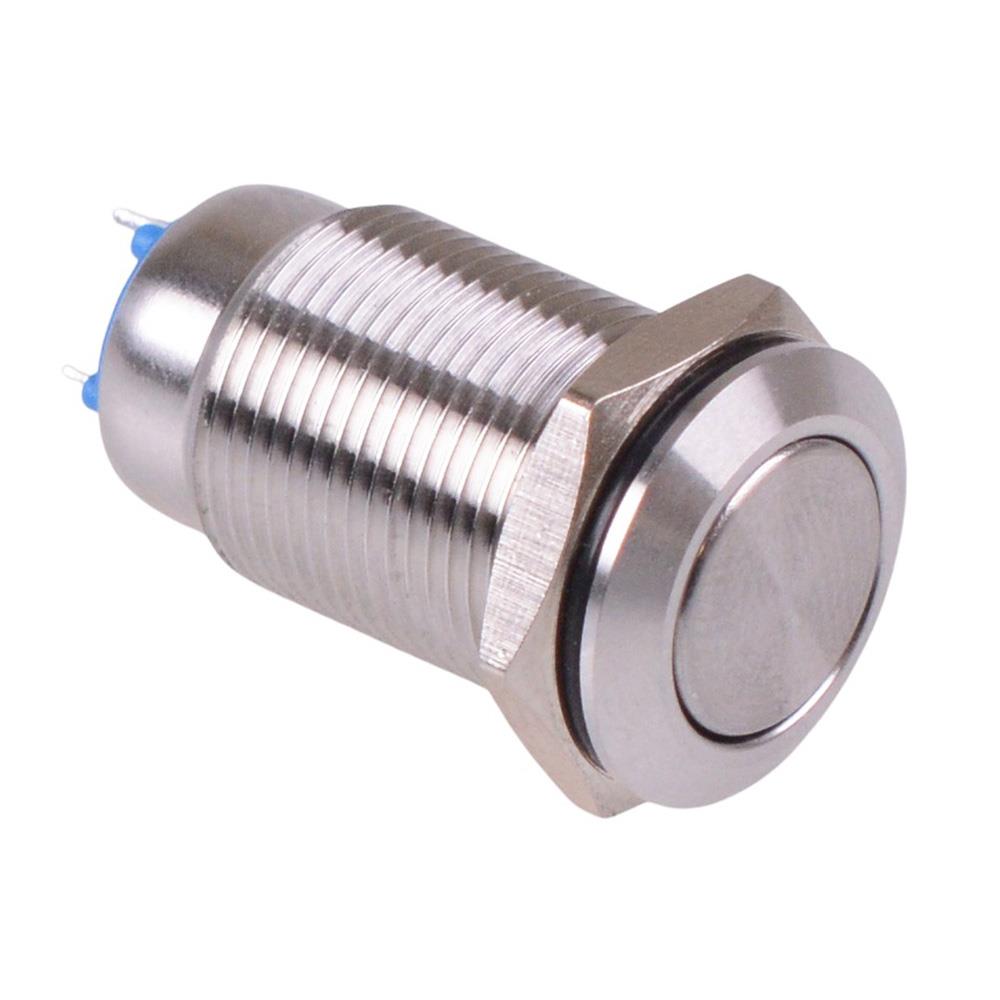

On-Off Latching 12mm Flat Push Button Switch Stainless Steel IP65

Latching push button switch featuring SPST contacts and stainless steel housing with a flat button. The switch featuring IP65 protection rating and solder/quick connect terminals, suitable for a wide range of applications including control panels, automotive, appliances, industrial etc.

Off-On operation

SPST contacts

Stainless steel housing

2.8x0.5mm solder / quick connect terminals

IP65 protection rating

Rating: 2A 250V

Panel thickness: 14mm max

Panel cut-out: 12mm

Dimensions: 25.95 x 13.8mm (height x diameter)
