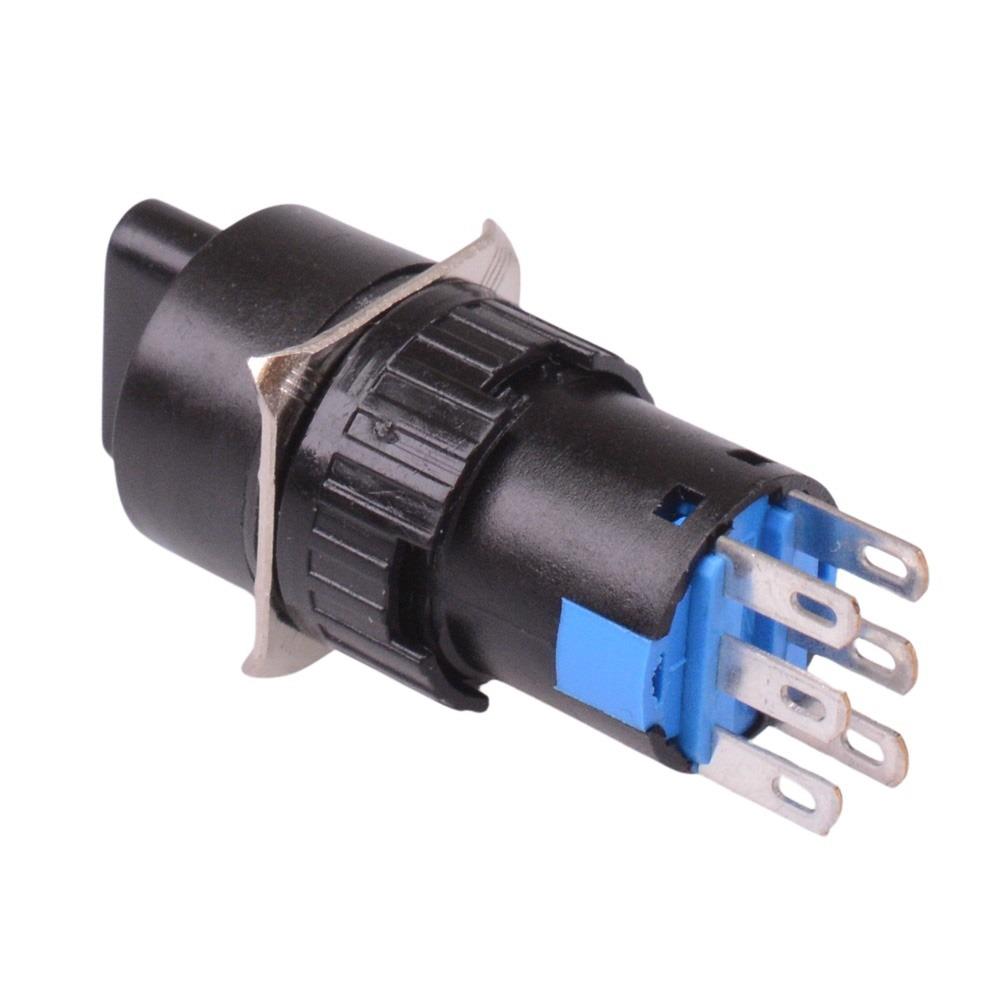

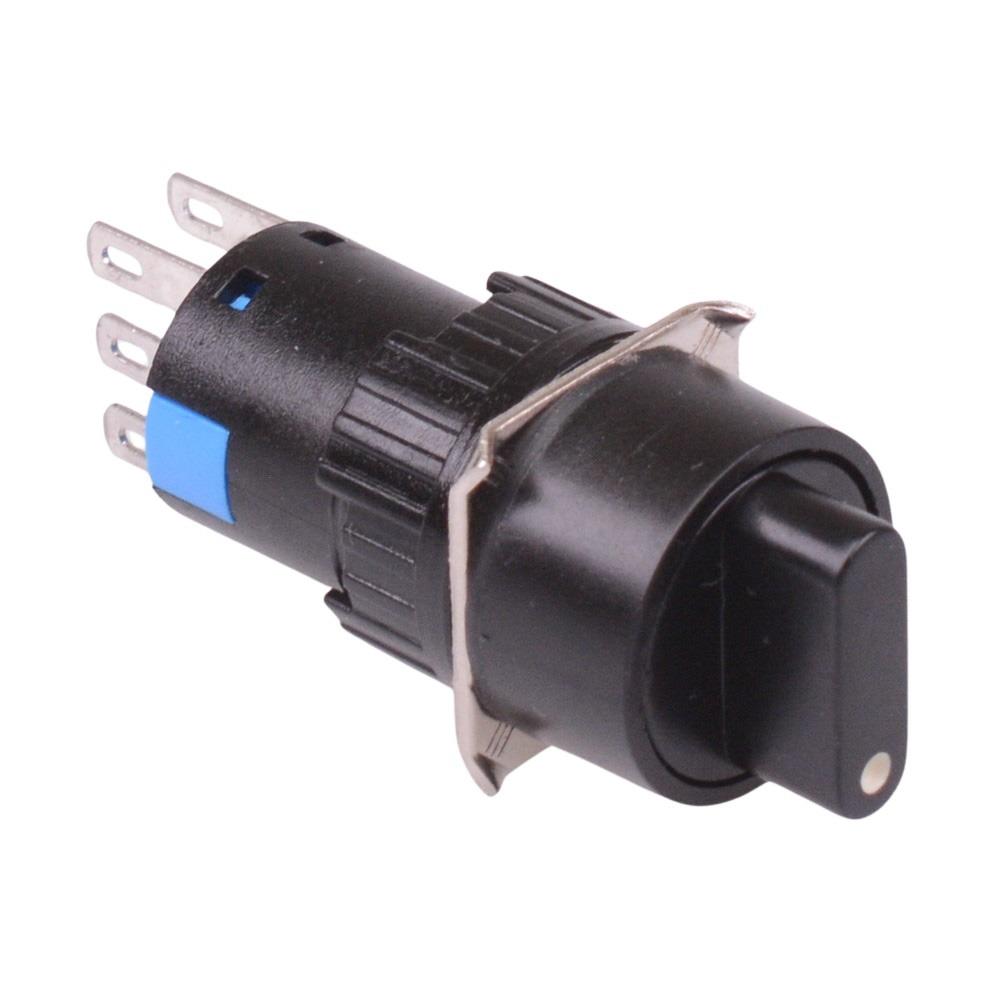

On-Off-On 3 Position 16mm Latching Selector Switch 2NO/2NC 3A 250V

On-Off-On 3 Position 16mm Latching Selector Switch 2NO/2NC 3A 250V
On-Off-On 3 Position 16mm Latching Selector Switch 2NO/2NC 3A 250V
On-Off-On 3 Position 16mm Latching Selector Switch 2NO/2NC 3A 250V
On-Off-On 3 Position 16mm Latching Selector Switch 2NO/2NC 3A 250V
On-Off-On 3 Position 16mm Latching Selector Switch 2NO/2NC 3A 250V
0 reviews - Write a review
from
$3.17
Ex Tax: $3.17
25 or more $2.76
100 or more $2.51
250 or more $2.29
500 or more $2.13
  • Stock: In Stock
  • Model: SCJ013397
  • SKU: SCJ013397
Products Sold: 0
Product Views: 20
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationLatching
MOQ1
ColourBlack
Contact ConfigurationSPDT
Contact Rating3A 250VAC
Current Rating3A
IlluminatedNo
Electrical Life10,000 Cycles
Key Index Angle45°
Mounting StylePanel Mount
Number of Positions3
Operating Temperature-25°C to +85°C
Panel Cut Out16.2mm
Terminal TypeQuick connect
Voltage Rating250VAC
  • Description
3 position round latching industrial selector switch featuring DPDT contacts, suitable for 16.2mm panel cut-outs. The switch is designed for a wide range of applications including control panels, automation, factories and general purpose uses..

  • Latching operation
  • 3 positions, 45° each turn
  • 2NO/2NC DPDT contacts
  • Contact rating: 3A 250V
  • Panel cut-out: 16.2mm
  • Panel thickness: 0.5-6mm
  • 2.8x0.5mm solder/quick-connect terminals
  • Dimensions: 39 x 18mm (height x diameter)

    • On-Off-On 3 Position 16mm Latching Selector Switch 2NO/2NC 3A 250V

    On-Off-On 3 Position 16mm Latching Selector Switch 2NO/2NC 3A 250V
