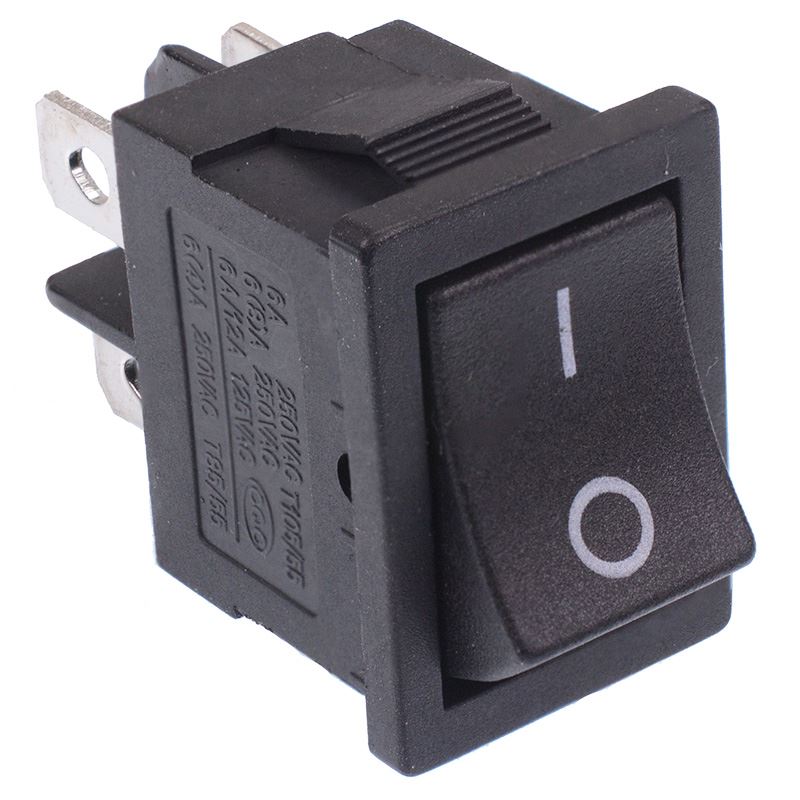

On-Off Rectangle Rocker Switch 4-Terminals DPST

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPST
Contact Rating	6A 250VAC
Current Rating	6A
Illuminated	No
Electrical Life	10,000 Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	19.2 x 13mm
Switch Operation	On-Off
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Rectangle rocker switch with DPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.

On-off action

DPST contacts

4.8mm quick connect terminals

Panel cut-out: 19.2 x 13mm

Dimensions: 28 x 21 x 15mm (Height x Length x Width)

Maximum current: 6A

Maximum voltage: 250VAC
