On-On 19mm Latching Vandal Resistant Push Button Switch SPDT 21A

On-On 19mm Latching Vandal Resistant Push Button Switch SPDT 21A
On-On 19mm Latching Vandal Resistant Push Button Switch SPDT 21A
On-On 19mm Latching Vandal Resistant Push Button Switch SPDT 21A
On-On 19mm Latching Vandal Resistant Push Button Switch SPDT 21A
On-On 19mm Latching Vandal Resistant Push Button Switch SPDT 21A
0 reviews - Write a review
from
$16.83
Ex Tax: $16.83
10 or more $14.98
25 or more $14.14
50 or more $13.29
100 or more $12.62
  • Stock: In Stock
  • Model: SCJ013748
  • SKU: SCJ013748
Products Sold: 0
Product Views: 120
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationLatching
Contact ConfigurationSPDT
Contact Rating21A 250VAC
Current Rating21A
IlluminatedNo
Electrical Life50,000+ Cycles
Illumination ColourNon Illuminated
MaterialStainless Steel
Mounting StylePanel
Number of Positions2
Protection LevelIP65
Operating Temperature-25°C to +85°C
Panel Cut Out19mm
Switch OperationOn-On
Terminal TypeQuick Connect
Voltage Rating250VAC
  • Description

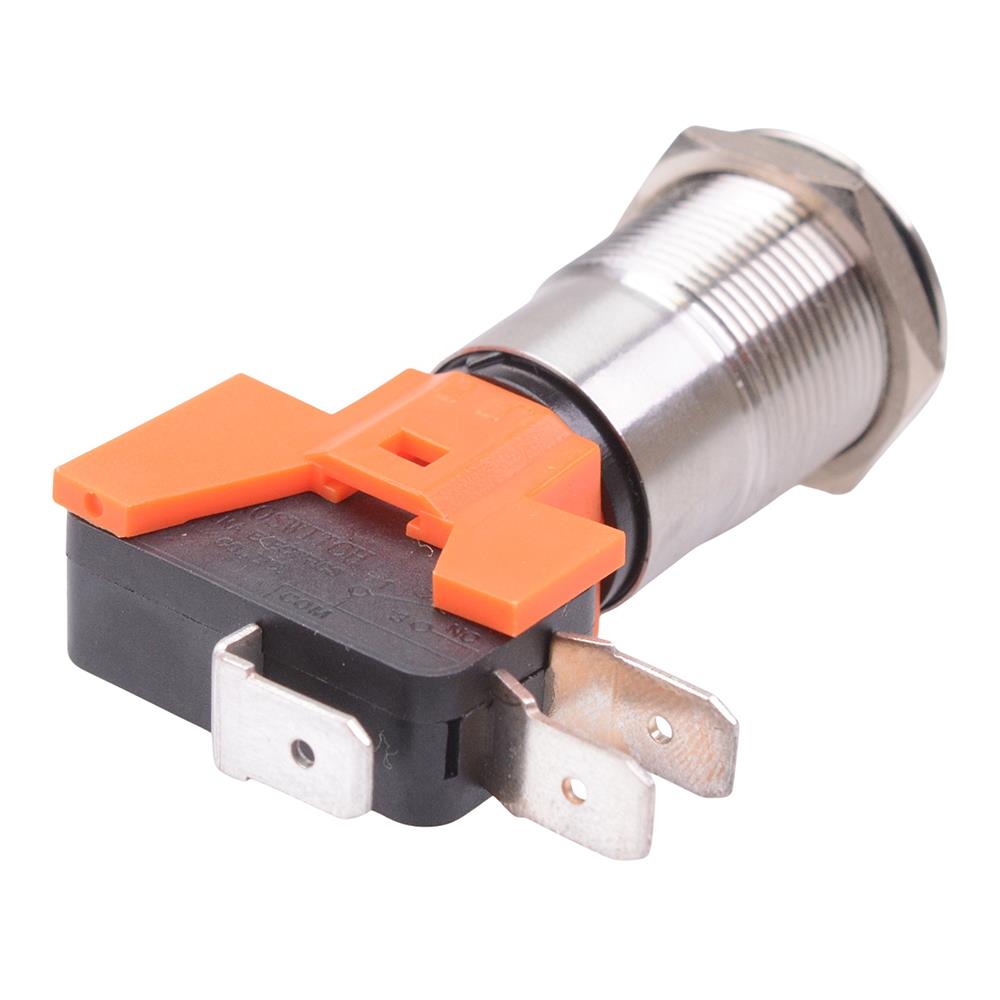

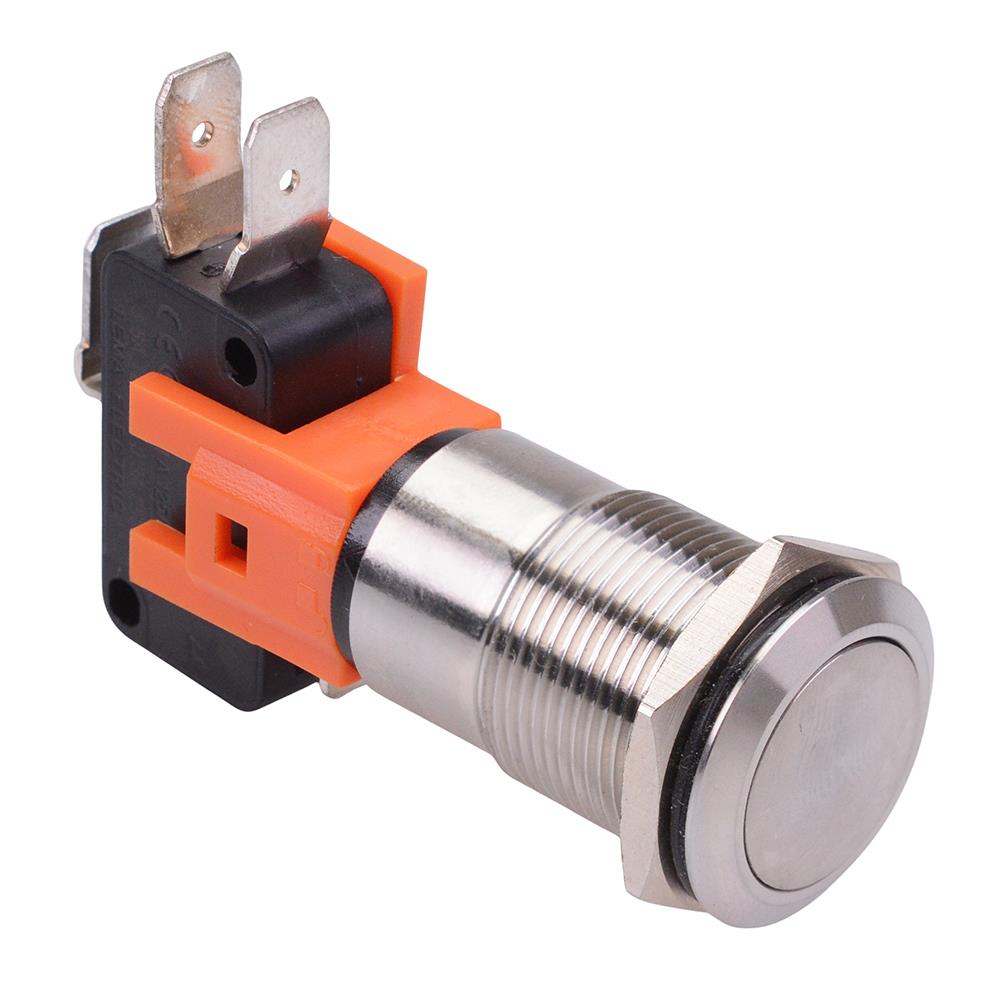

Latching 19mm vandal resistant push button switch featuring a 21A current rating and IP65 protection level. The switch features SPDT contacts and a removable microswitch making it suitable for high current 12V applications including automotive.

  • Latching On-On action
  • NO/NC contacts
  • IP65 protection rating
  • 19mm panel cut-out diameter
  • Stainless steel body
  • Removable microswitch
  • 6.35mm quick connect terminals
  • Rating: 21A 250VAC

    • On-On 19mm Latching Vandal Resistant Push Button Switch SPDT 21A

    On-On 19mm Latching Vandal Resistant Push Button Switch SPDT 21A
