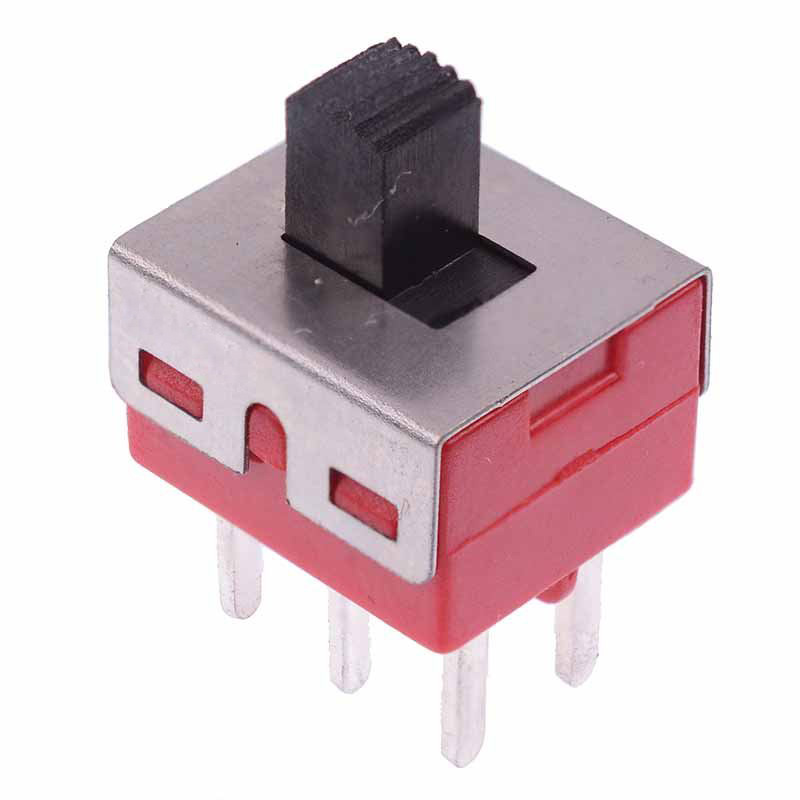

On-On Mini PCB Slide Switch DPDT 5A

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPDT
Contact Rating	2A 250VAC, 5A 125VAC / 28VDC
Current Rating	5A
Electrical Life	30,000 Cycles
Material	DAP & Stainless Steel
Mounting Style	PCB
Number of Poles	2
Number of Positions	2
Operating Temperature	-30°C to +85°C
Pitch	4.7mm
Switch Operation	On-On
Terminal Type	PCB
Voltage Rating	250VAC

Description

On-On miniature slide switch featuring DPDT contacts and PCB solder terminals. The switch features a 5A current rating making them ideal for higher current applications requiring a small packaged switch.

On-On action

DPDT contacts

Solder terminals

5mm knob height

Rating: 2A 250VAC, 5A 125VAC / 28VDC

PCB pitch: 4.7mm

Dimensions: 12.8 x 11.5 x 19.2mm (Length x Width x Height)
