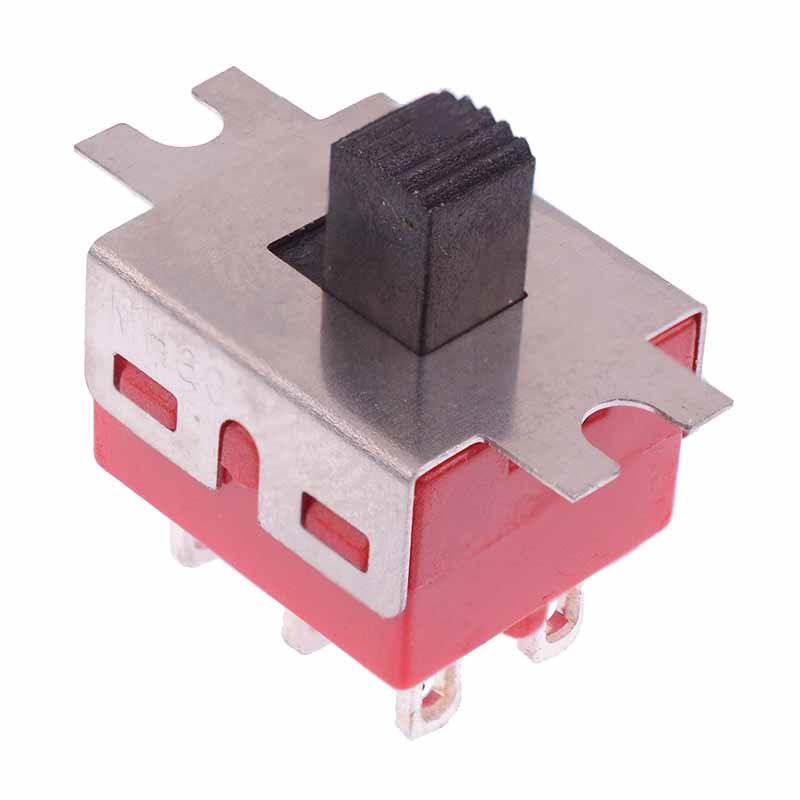

On-On Mini Slide Switch DPDT 5A
from
$1.08
Ex Tax: $1.08
25 or more $0.94
100 or more $0.86
250 or more $0.77
500 or more $0.72
- Stock: In Stock
- Model: SCJ010476
- SKU: SCJ010476
Products Sold: 0
Product Views: 28
Ask a Question About This Product
- Specifications
Attributes List | |
Actuation | Latching |
Contact Configuration | DPDT |
Contact Rating | 2A 250VAC, 5A 125VAC / 28VDC |
Current Rating | 5A |
Electrical Life | 30,000 Cycles |
Material | DAP & Stainless Steel |
Mounting Style | Panel |
Number of Poles | 2 |
Number of Positions | 2 |
Operating Temperature | -30°C to +85°C |
Switch Operation | On-On |
Terminal Type | Solder |
Voltage Rating | 250VAC |
- Description
On-On miniature slide switch featuring DPDT contacts and solder terminals. The switch features a 5A current rating making them ideal for higher current applications requiring a small packaged switch.
On-On action DPDT contacts Solder terminals 5mm knob height Rating: 2A 250VAC, 5A 125VAC / 28VDC Mounting hole pitch: 17.5mm Dimensions: 19.56 x 11.43 x 16.6mm (Length x Width x Height)
- Reviews
