On-(On) Momentary 16mm Vandal Push Button Switch SPDT

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPDT
Contact Rating	5A 250VAC
Current Rating	3A
Illuminated	No
Electrical Life	50,000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +85°C
Panel Cut Out	16mm
Switch Operation	On-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

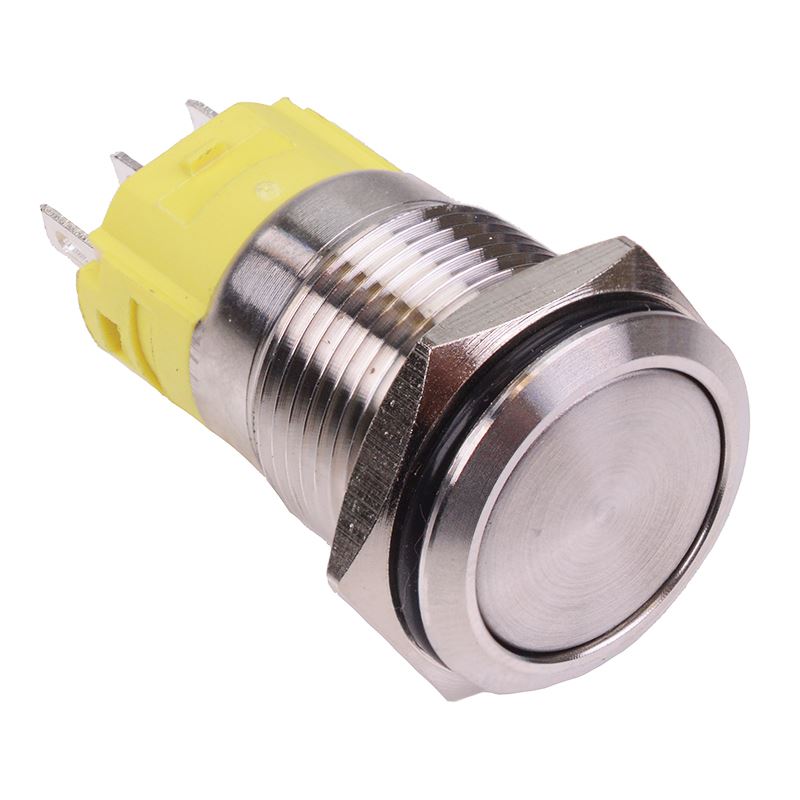

Momentary vandal resistant push button switch manufactured from stainless steel, featuring SPDT contacts. The switch features IP65 protection rating and 5A current rating, suitable for a wide range of applications.

Momentary On-(On) action

IP65 protection rating

16mm panel cut-out diameter

NO/NC contacts

2.8mm terminals

Rating: 5A 250VAC

Dimensions: 35.2 x 18mm (length x diameter)
