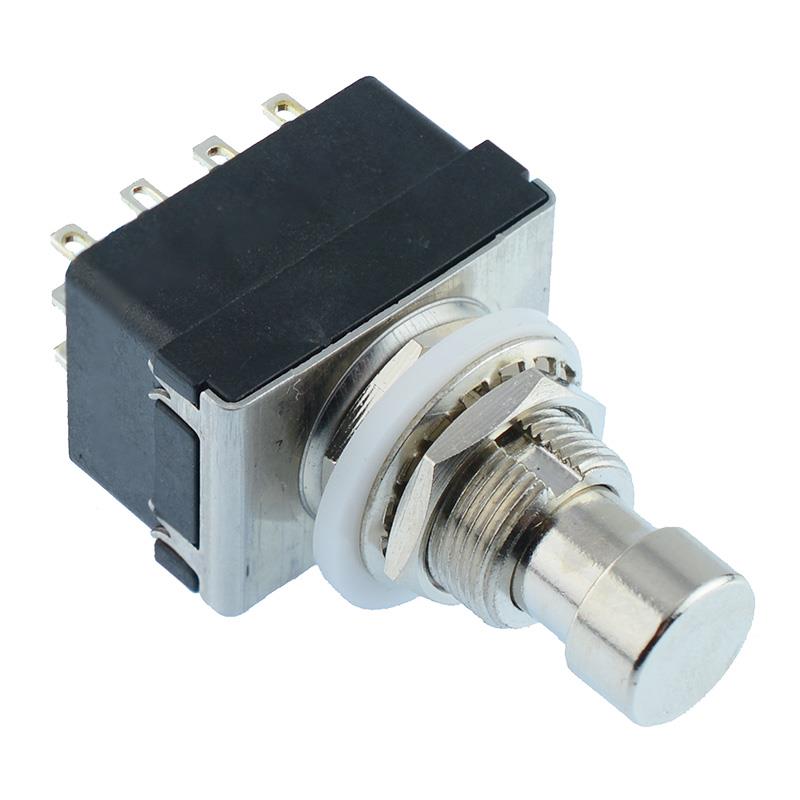

On-(On) Momentary Foot Switch 4PDT

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	4PDT
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	No
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	6mm
Switch Operation	On-(On)
Terminal Type	Solder
Voltage Rating	250VAC

Description

4PDT footswitch with a momentary push button action, ideal for machinery and music applications including foot pedals.

4PDT contacts

Momentary On-(On) action

Solder terminals

Suitable for panel mounting and secured by nut

Panel cut-out: 12mm

Dimensions: 42.1 x 17.1 x 23.3m (Height x Width x Length)

Maximum Panel Thickness: 4mm
