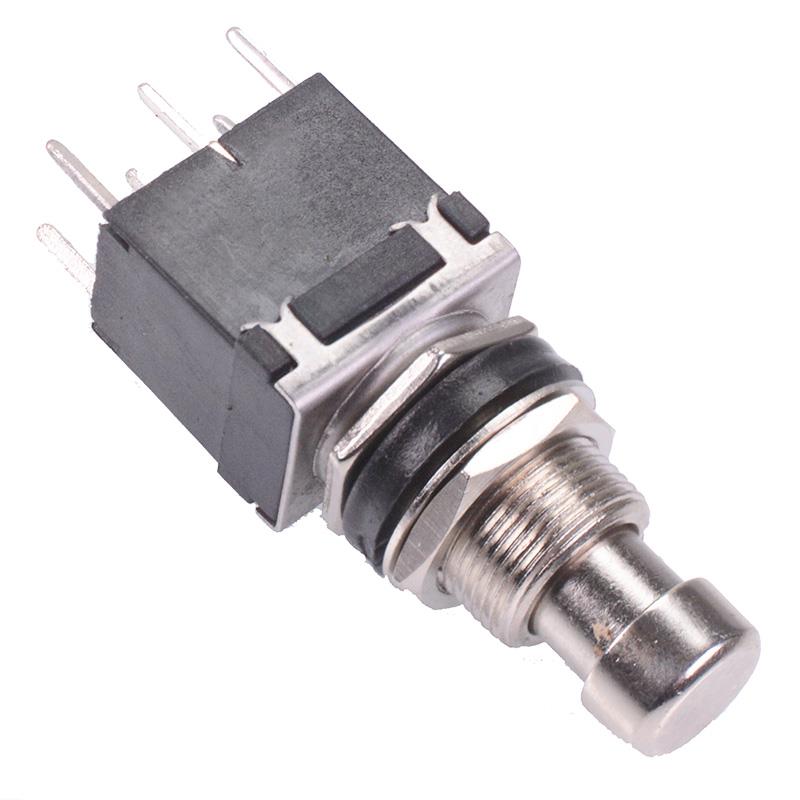

On-On PCB Push Button Foot Switch DPDT

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPDT
Contact Rating	2A 250VAC, 4A 125VAC
Current Rating	4A @ 125VAC
Illuminated	No
Electrical Life	50,000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	PCB
Number of Poles	2
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	12mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	250VAC

Description

Latching foot switch featuring PCB terminals and DPDT contacts suitable for panel mounting making it ideal for music applications.

DPDT contacts

On-On operation

PCB terminals

Requires 12mm panel cut-out

2A maximum current

250VAC maximum voltage

Dimensions: 50 x 12.2 x 17.2mm (Height x Width x Length)

Maximum Panel Thickness: 4mm
