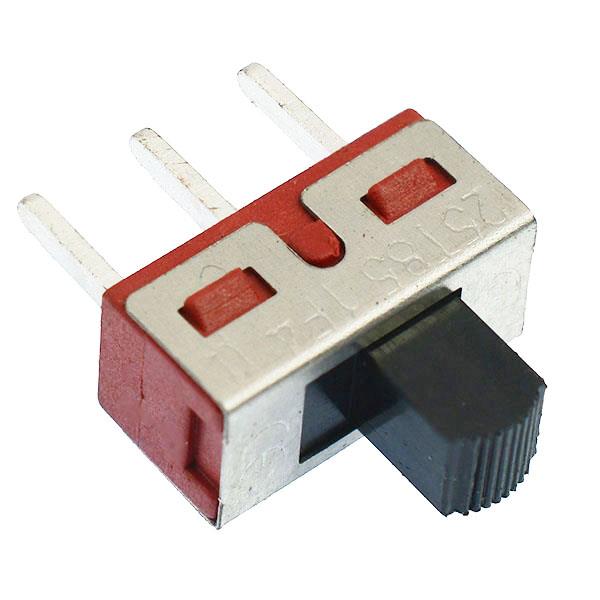

On-On PCB Slide Switch SPDT 0.3A 50VDC

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Rating	0.3A 50VDC
Current Rating	0.3A
Electrical Life	10,000 Cycles
Mounting Style	PCB
Number of Poles	1
Number of Positions	2
Switch Operation	On-On
Terminal Type	PCB
Voltage Rating	50VDC

Description

On-On vertical slide switch featuring SPDT contacts, suitable for PCB mounting.

On-On operation

SPDT contacts

Rating: 0.3A 50VDC

Actuator height: 5mm

Terminal pitch: 4.7mm

Dimensions: 7 x 12.8 x 18.8mm (Width x Length x Height)
