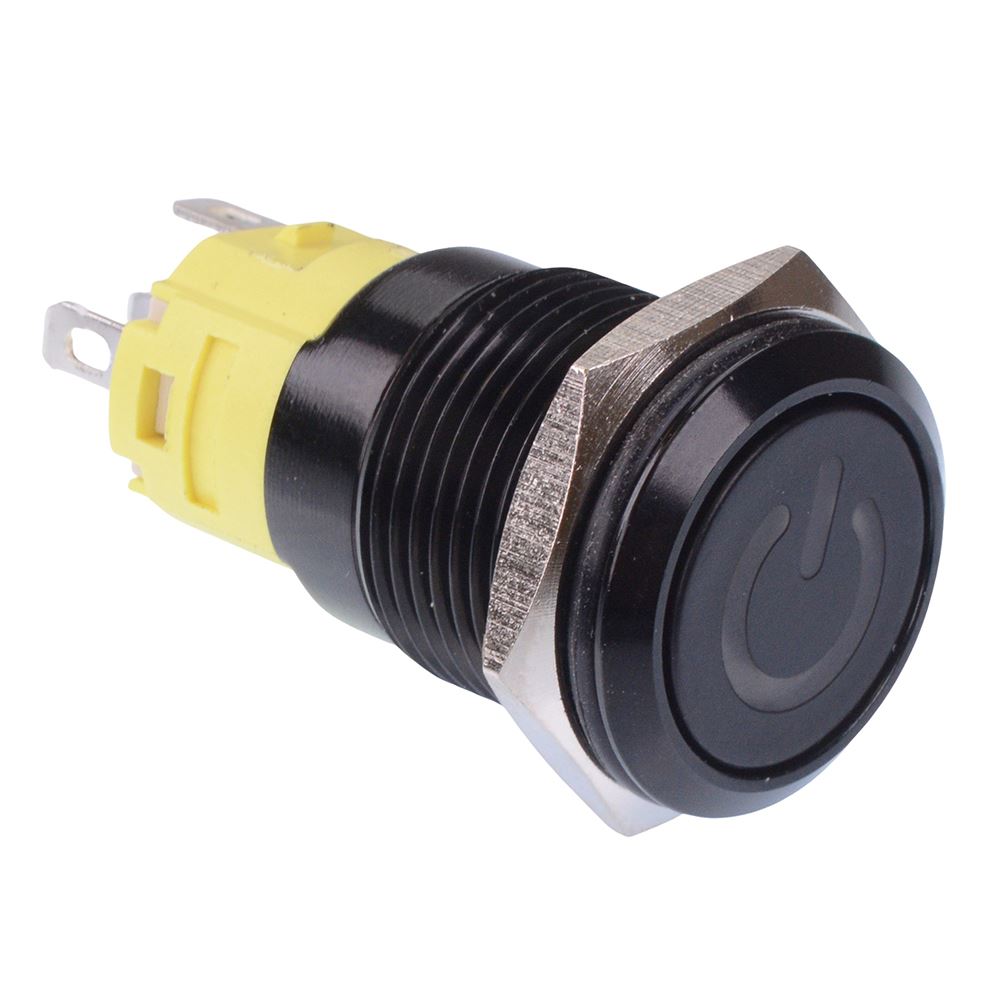

Orange LED 12V Latching Power Symbol 16mm Push Switch NO/NC

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	Yes
Electrical Life	50,000 Cycles
Illumination Colour	Orange
Illumination Voltage	12VDC
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to 85°C
Panel Cut Out	16mm
Switch Operation	On-On
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Vandal resistant push button switch manufactured from stainless steel, featuring a orange power symbol LED and NO/NC contacts. The switch features IP65 protection and is suitable for 12V applications.

Latching On-On action

Orange LED

12V illumination voltage

IP65 protection rating

16mm panel cut-out diameter

NO/NC contacts

2.8mm terminals

Rating: 3A 250VAC
