Orange LED 16mm Latching Vandal Push Button Switch 3A SPDT

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Orange
Contact Configuration	SPDT
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	Yes
Electrical Life	50,000+ Cycles
Illumination Colour	Orange
Illumination Voltage	12VDC
Material	Stainless Steel
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-20°C to +55°C
Panel Cut Out	16mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	250VAC

Description

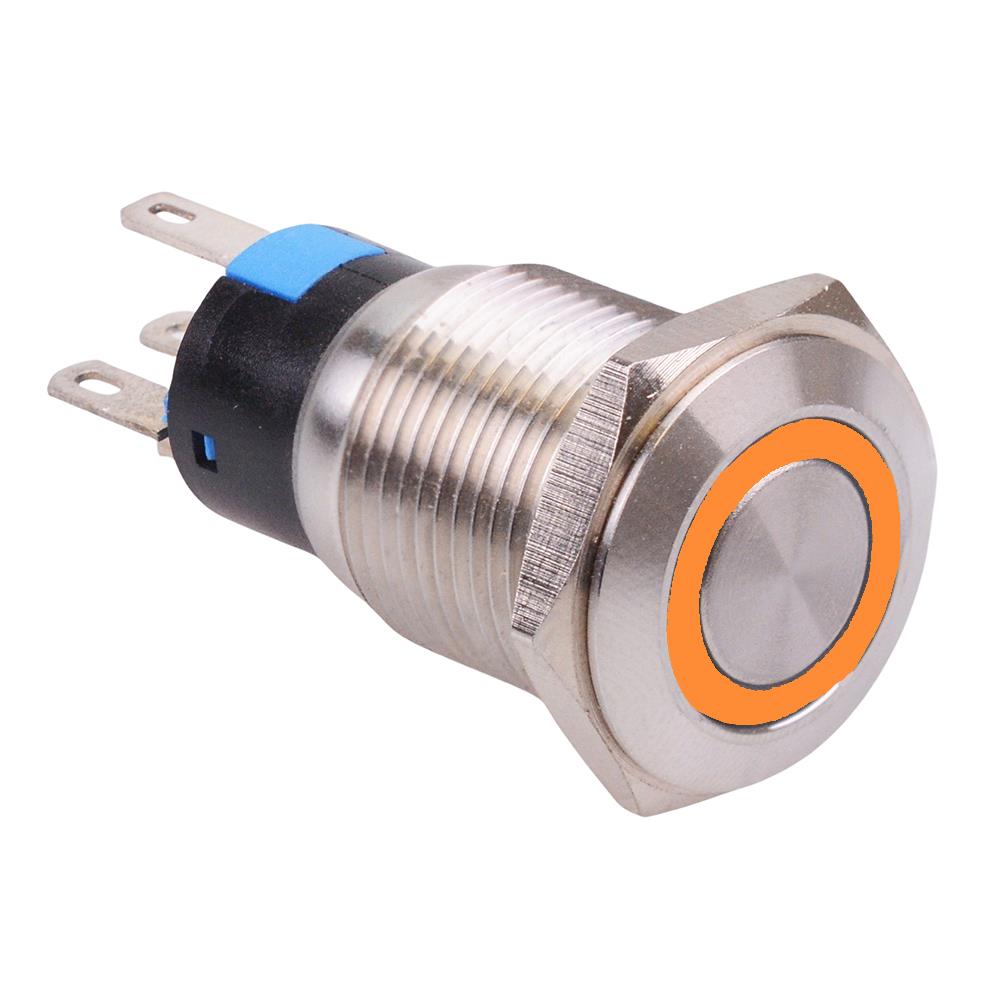

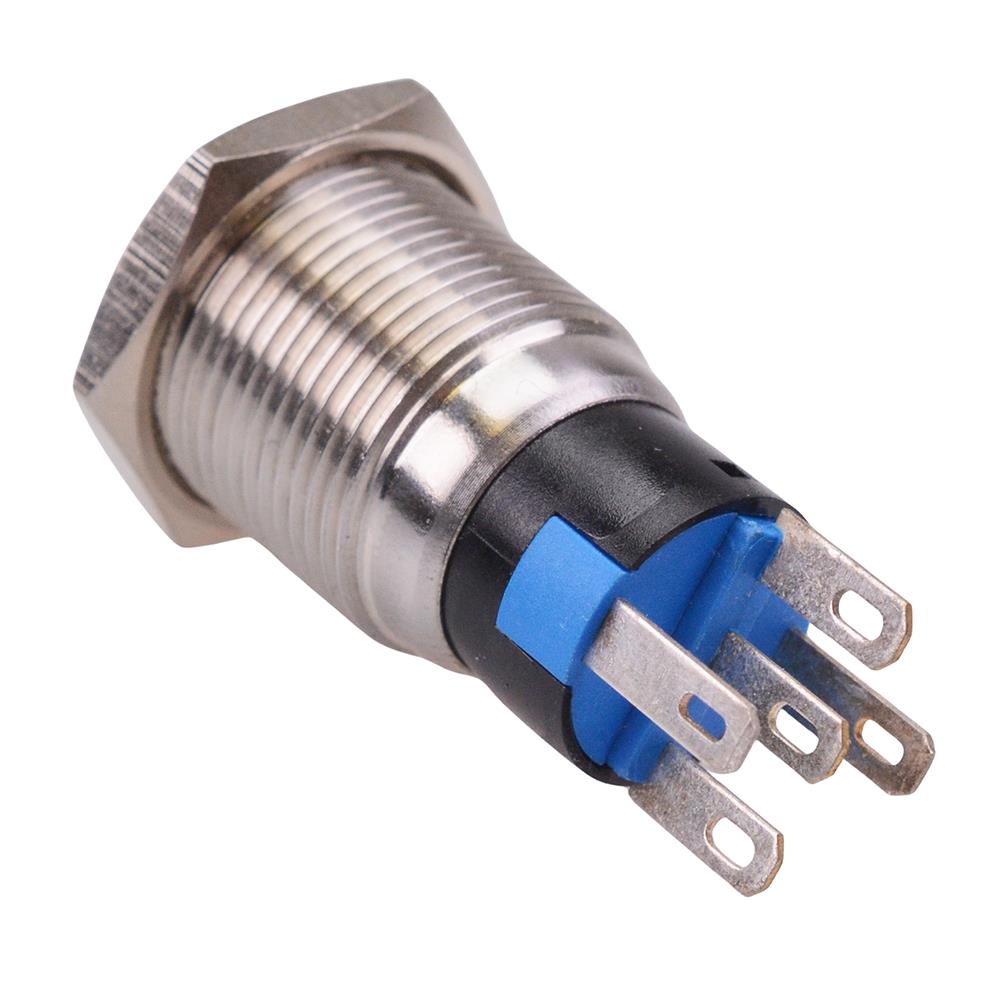

Orange LED 16mm Latching Vandal Push Button Switch 3A SPDT

Orange LED latching vandal resistant switch featuring a stainless steel, suitable for a 16mm panel cut-out. The switch features a flush actuator and is suitable for 12V applications where an attractive tamper proof switch is required.

Latching action

SPDT NO/NC contacts

Orange LED 12V illumination

Stainless steel construction

Panel cut-out: 16mm

Panel thickness: 10mm max

Rating: 3A 250VAC

2.8x0.8mm terminals
