Arm Drilling Tapping Machine 16mm Small Hole CNC Automatic Drilling M20 Tapping Universal Type Custom-make

Buy Now

Specifications

Industry-specific attributes
Type	arm drilling tapping machine
Max. Drilling Dia. (mm)	16
Other attributes
Condition	New
Range of Spindle Speed(r.p.m)	1 - 1400 r.p.m
CNC or Not	CNC
Place of Origin	Zhejiang, China
Weight (KG)	268 KG
Key Selling Points	Automatic
Showroom Location	None
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Core Components	Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure vessel, Engine
Drilling Speed	0-1400r/min
Model Number	N74
Voltage	220V-50HZ
Dimension(LWH)	12507701200mm
Power (kW)	1.1
Product name:	Flexible arm air tapping machine
max.tapping diameter	M5-M20
Swing	580mm-1200mm
Application	Small Hole
Function	tapping holes
Spindle travel:	1200mm
Weight	268KG
Color	custom-make
Power(W)	1100
Packaging and delivery
Selling Units:	Single item
Single package size:	50X50X50 cm
Single gross weight:	50.000 kg
Packaging Details	wooden case

Video

Description

Product Description

Product Application

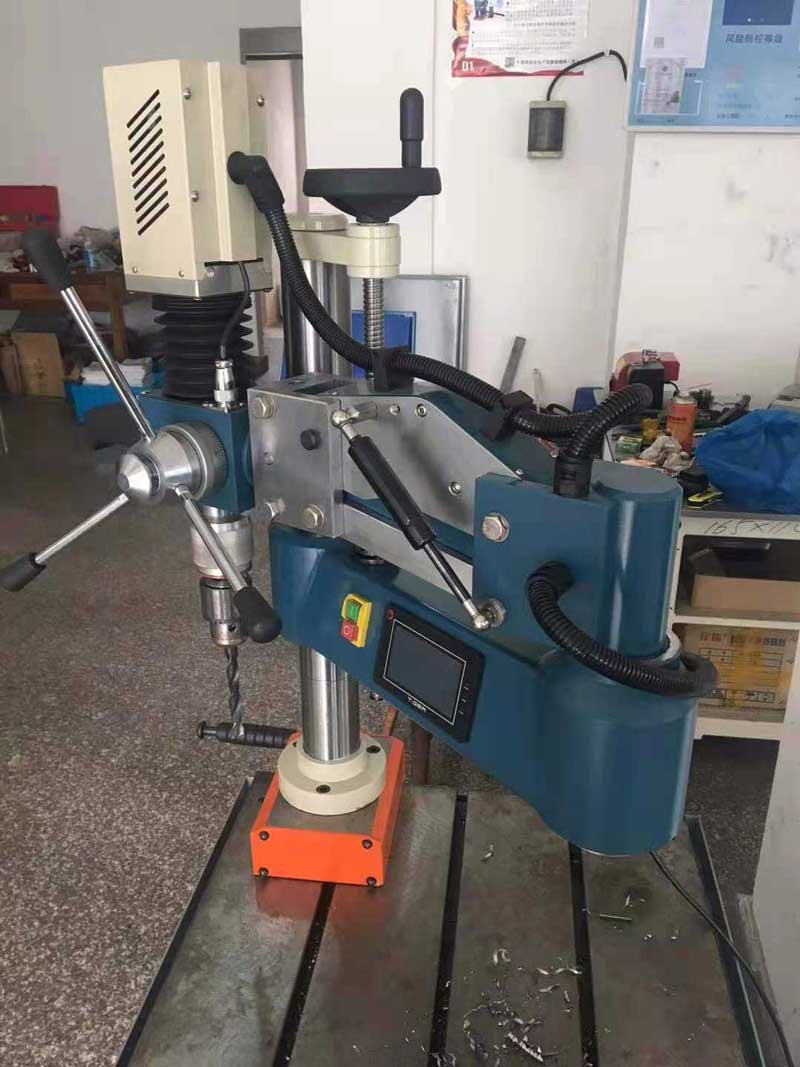

Arm Drilling Tapping Machine 16mm Drilling M20 Tapping Universal Type

- Lightweight tapping machine that can be easily relocated. The most convenient and easy to use model.

- High speed, Wide range of adjustments of tapping speed.

- Quick change chuck – 3-5 seconds. Reducing operation time and increasing productivity.

- Minimum noise, vibration and electricity consumption

Model	3mm-16mm, M5-M20
Power Suppy	ACC220V 50/60Hz
Power of servomotor	1100W
Mar.Tapping Speed	1400RPM
Working Area	Horizontal:1700mm
Vertical	850mm Adjustable
Tapping Capacity	M5-M20,3mm-16mm

Working Pieces
