Product Description
High Precision Single Point Open Type Power Press
Pneumatic punch presses use the high-pressure gas produced by compressors to force metal into molds for wafer processing,stamping,embossing, etc.
● Steel plates welded as machine body, treated to remove internal stress, marked with high rigidity;
● Crankshaft longitudinally arranged, compact structure and beautiful outlook;
● Hexagonal guide rails of extra length, guide in high precision;
● PLC-controlled electric circuit, safety duplex valve for air pipelines, flexible and highly sensitive in movement,safe and reliable, single time, inching and continuous operations for options, conforming to the safety standard for stamping machines;
● Hydraulic overload protection device and rigid protection device to prevent damage of the machine tools due to overload;
● Combined-type pneumatic friction clutch-brake, steady engagement, low noise level;
Professional stamping automation equipment
The machine body is welded of quality and treated by tension elimination, improve stability and reliability of precision of the machine.
Crank, gear, connect bar are oxidized hardening and milled, having super comrehensive mechanical perfor-mance and durable function.
Reasonable structural design, is convenient for au-tomatic production and line production.
Used reliable high intensity clutch/brake and twin electromagnetic valve, overloading protector can guar-antee safe production all-around.
Adopt safety double solenoid valve and hydraulic overload protection device to ensure production and operation safety.
The mold bearing large impact loading as well as pressing of eccentric mold.
Adopted closed electric loop circuit, have compatible with any automatic equipments.
Main Parameter
Model | Unit | SYA-25 | SYA-35 | SYA-45 | SYA-60 | ||||
V | H | V | H | V | H | V | H | ||
Capacity | Ton | 25 | 35 | 45 | 60 | ||||
Rated tonnage point | mm | 3.2 | 1.6 | 3.2 | 1.6 | 3.2 | 1.6 | 4 | 2 |
Stroke | mm | 70 | 30 | 70 | 40 | 80 | 50 | 120 | 60 |
Speed changing | s.p.m | 60-140 | 130-200 | 40-120 | 110-180 | 40-100 | 110-150 | 35-90 | 80-120 |
Die height | mm | 195 | 215 | 220 | 235 | 250 | 265 | 310 | 340 |
Slide adjustment | mm | 50 | 55 | 60 | 75 | ||||
Slide area | mm | 470ｘ230ｘ50 | 520ｘ250ｘ50 | 560ｘ300ｘ60 | 700ｘ360ｘ70 | ||||
Bolster area | mm | 680ｘ300ｘ70 | 800ｘ400ｘ70 | 850ｘ440ｘ80 | 900ｘ500ｘ80 | ||||
Shank hole | mm | ∅38.1 | ∅38.1 | ∅38.1 | ∅50 | ||||
Main motor | kw.p | 3.7ｘ4 | 3.7ｘ4 | 5.5ｘ4 | 5.5ｘ4 | ||||
Slide adjust device | HP | 手动 manual operation | |||||||
Air pressure | kg/cm2 | 6 | |||||||
Press precision | GB/JIS 1 class | ||||||||
Presses dimension | mm | 1350ｘ930ｘ 2200 | 1400ｘ1050ｘ2400 | 1600ｘ1100ｘ2500 | 1620ｘ1150ｘ2800 | ||||
Die cushion capacity | Ton | - | 2.3 | 2.3 | 3.6 | ||||
Stroke | mm | - | 50 | 50 | 70 | ||||
Die cushion effective area | mm2 | - | 300ｘ230 | 300ｘ230 | 350ｘ300 | ||||
More Details

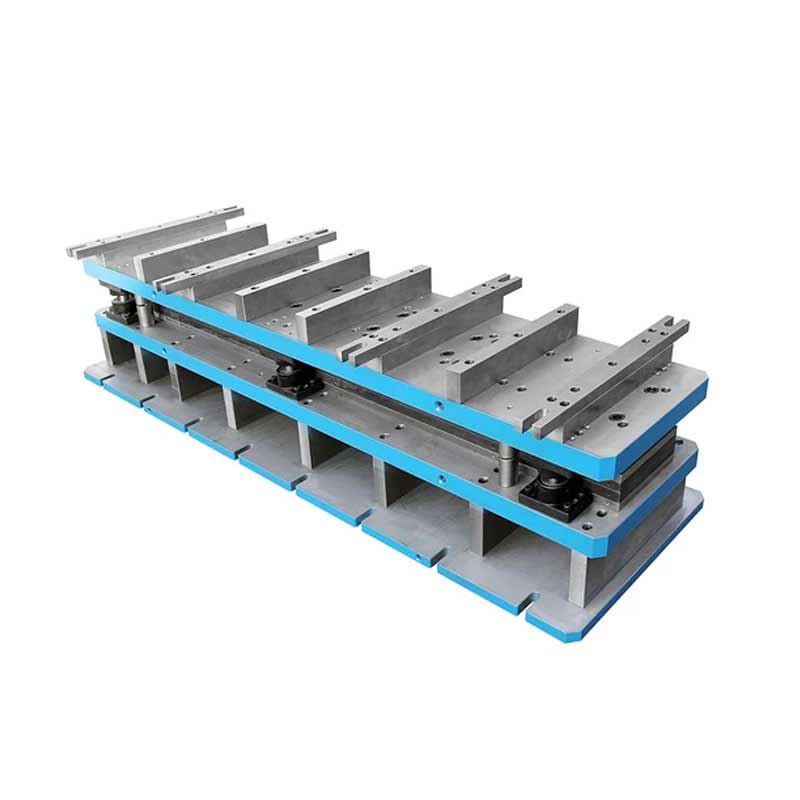

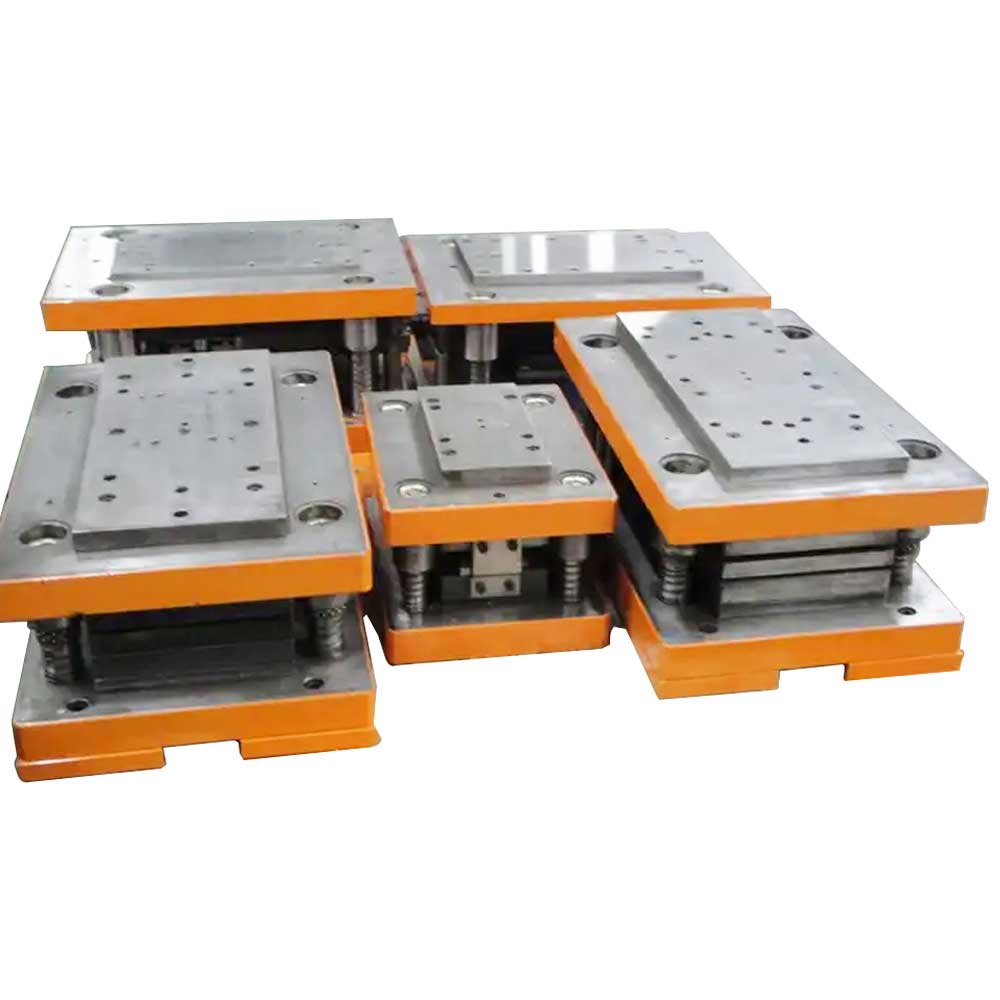

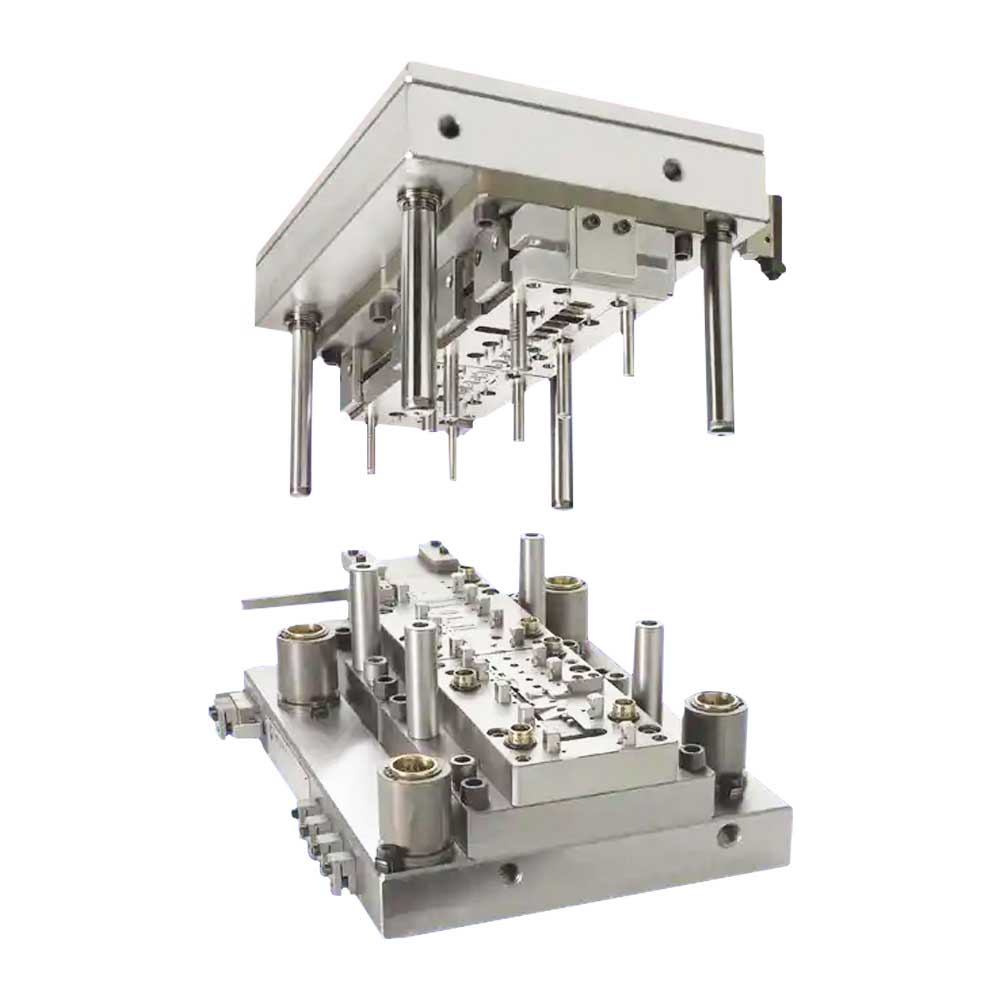

Mould
Type: Stamping press moulds (customized)
Mould Life: 30,000,000 shots,etc. (except wearing part )
Delivery time: 3 to 6 weeks
(3 weeks for prototype mold)
Sample
