TG560 5-Axis CNC Tool Grinding Machine Multi Functional Grider CNC Abrasive Grinder 200 mm Diameter High Precision
from
$140,000.00
Ex Tax: $140,000.00
5 or more $139,000.00
10 or more $138,000.00
- Stock: In Stock
- Model: SCJ007268
- SKU: SCJ007268
Products Sold: 0
Product Views: 149
Ask a Question About This Product
- Description
Product Description
Model No | TG560 |
CNC system | SYNTEC 210MA-5E |
Grinding tools software | ANTISHI |
Processing workpiece diameter | 200 mm |
Max. processing workpiece length | 170mm |
Max. processing workpiece groove depth | 20mm |
Max. Workpiece weight | 10Kg |
Grinding head Max. Power(electric spindle) | 11KW |
Grinding wheels(CBN/diamond) | Φ50～Φ200mm |
Grinding head spindle rotation speed(frequency regulation) | 1000-8000rpm |
Grinding head vertical travel(Z axis) | 360(-100-220)mm |
Workable travel X axis/Y-axis | X：460 / Y：400 |
Linear axis quick travel speed | 15m/min |
Workpiece spindle rotation speed（A-axis） | 500rpm |
Rotation range of A-axis | ∞ |
A axis spindle hole taper | ISO50 |
Pneumatic clamping range | 3~20mm |
SCHUNK collects clamping range (optional) | 3~32mm |
Grinding head swing Max rotation speed(C-axis) | 30rpm |
Rotation range of C-axis | 325°（+230°~-95°） |
Workpiece spindle center height | 150mm |
Workpiece spindle radial runout | ≤0.005mm |
Grinding head spindle radial runout | ≤0.005mm |
Air cylinder clamping force adjusting range | 500-580kg |
Linear-axis resolving power | 0.00lmm |
Rotation axis resolving power | 0.00l° |
Cooling motor power | 3P |
Cooling motor capacity | 200L |
Voltage | AC 380V 50HZ 3 phase |
Total power | 15KW |
Machine size | 1700×1520×2100mm |
Machine weight | 4T |
5-Axis CNC Tool Grinding Machine
TG 560 5-axis CNC tool grinder is a newly developed by ANTISHI Company, which is a cost effective tool grinding center. It could produce and sharpen all kinds of milling cutters, drilling and forming tools .
With the beautiful outlook and friendly human-machine interface,the machine adopts the natural marble components to ensure tits stability during the working.Features

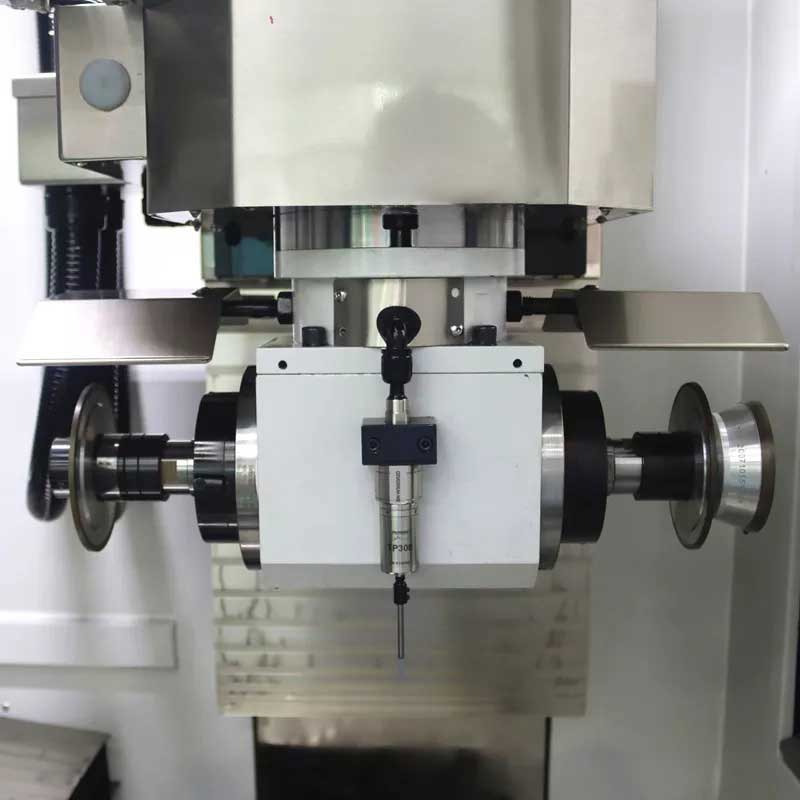

1.The spindle grinding head adopts high-precision、synchronous direct drive frequency conversion electric spindle, the main spindle has two grinding wheel flange, which can install with 2-4 pieces of grinding wheels. According to the grinding requirement, rapidly changed the grinding wheel position, satisfying all kinds of tools grinding requirements.

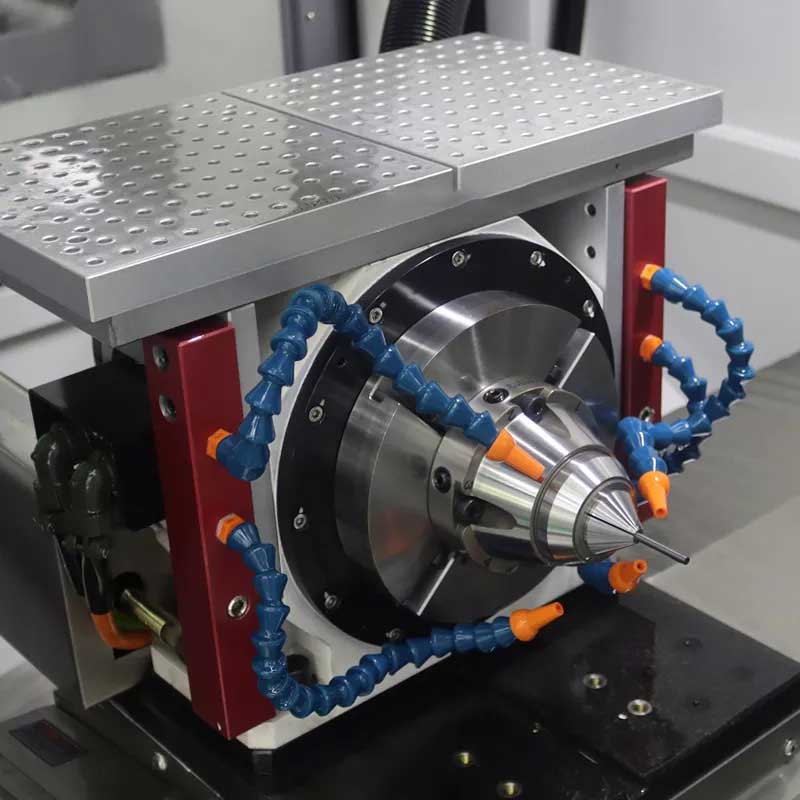

2.The workpiece spindle ( A axis) adopts direct-driver conversion, SCHAUBLIN chuck and cylinder clamp, automatically clamped by pneumatic.
3.The machine tool is a 210MA-5E 5-axis SYNTEC CNC system and servo unit, precision probe, silver precision rolling wire rail and ball screw, which could guarantee superior performance and great precision of the milling tools.
4.The machine is fully enclosed appearance (front movable pull door, right and rear maintenance door) with electronic handwheel, special start and stop button and foot switch, equipped with and automatic cooling system and a coolant filter tank, an automatic lubrication device and a suction interface,an alarm buzzer, electrical box cooling air conditioner, making the operation and maintenance of machine simple and convenient.
Main Parts for the 5-Axis CNC Tool Grinding Machine
1.Screws, Guides,Bearings
Name | Origin | Manufacturer | Specification | Accuracy |
X-axis ball screw | Taiwan | THK | DIK3210-6RRGO+824LC3 | C3 |
Y-axis ball screw | THK | DIK3210-6RRGO+765LC3 | C3 | |
Z-axis ball screw | THK | DIK3210-6RRGO+781LC3 | C3 | |
X-axis rail | HIWIN | QHH30CA 2R 845 ZA PII | P | |
Y axis rail | HIWIN | QHH30CA 2R 1037 ZA PII | P | |
Z axis rail | HIWIN | QHH35CA 2R 1040 ZA PII | P | |
Electric Spindle Bearing | NSK | 7010C/P4、7009C/P4 | P4 |
2.System and key components
Name | Origin | Manufacturer | Specification |
Servo control system | Taiwan | SYNTEC | 210MA-5E |
X, Y axis servo unit | Taiwan | SYNTEC | AM8-40-F3 |
Z-axis servo unit | Taiwan | SYNTEC | AM18-30B-F4 |
Inverter | China | Shenzhen HongYuan | 7.5-011-KW-3B |
Electric spindle | China | LuoYang | 7.5KW/1000~8000rpm |
Work piece axis dd | China | Guangzhou HaoZhi | DZDH-175-500-135 |
Precision turbine box | Taiwan | TOPSDISK | VE-170CP |
3.Hydraulic, pneumatic components and protection
Name | Origin | Manufacturer | Specification |
Air pressure valve | Taiwan | AIRTAC | |
Rotary cylinder | China | Changzhou LiXiao | KQ-130 |
Main electrical components | Schneider | ||
Automatic fire extinguisher | Huizhou Earth | FZX-ACT3/1.2-DD | |
Automatic lubricating device | DAMAITIAN | MTA-200P | |
Mist device | HUANGWEIXING | HWJ-750A | |
Electric box air conditioner | LABER | LA--03H-H/Z |
Remark：The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.
Standard Equipment of the 5-Axis CNC Tool Grinding Machine
Machine body
CNC SYNTEC 210MA-5E control system and servo unit
ANTISHI tools software package
Probe made in china
HSK quick change precision flange rod
11KW precision direct drive grinding head
W25 automatic work piece clamping device
Grinding wheel and flange
Automatic lubrication device
Toolbox with maintenance standard tools
Automatic cooling device
Optional Equipment of the 5-Axis CNC Tool Grinding Machine
SCHUNK handle
SHAUBLIN W20 tool holder and collet
Special fixture
Grinding wheel
Automatic feeding device
RENISHAW LP2DD probe
ITALIAN Marposs probe, etc
Notice: Factory ordinary packaging, please confirm with the ANTISHI for more details.
