tool grinding machine TG580 drill grinding machine high quality 5-Axis CNC Grinding Machine
from
$149,000.00
Ex Tax: $149,000.00
5 or more $145,000.00
- Stock: In Stock
- Model: SCJ007289
- SKU: SCJ007289
Products Sold: 0
Product Views: 141
Ask a Question About This Product
- Description
Product Description
Technical Parameter
5-Axis CNC Tool Grinding Machine
TG580 is a five-axis five-link CNC tool grinder newly developed by ANTISHI Company.,has the excellent performance on tool grinding. It is suitable for the production or grinding of milling tools, drilling tools, forming tools etc.
With the beautiful outlook and friendly human-machine interface,the machine adopts the natural marble components to ensure tits stability during the working.
Model No | TG580 |
CNC system | SYNTEC 210MA-5E |
Grinding range | Φ1-20mm |
Grinding tools software | ANTISHI |
Processing workpiece diameter | 200 mm |
Max. processing workpiece length | 200mm |
Max. processing workpiece groove depth | 20mm |
Max. Workpiece weight | 20Kg |
Grinding head Max. Power(electric spindle) | 18 KW |
Grinding wheels(CBN/diamond) | Φ50～Φ200mm |
Grinding head spindle rotation speed(frequency regulation) | 0-8000rpm |
Grinding head vertical travel(Y axis) | 350(-100-250)mm |
Workable travel X axis/Y-axis/Z-axis | X：520 / Y：540 / Z：350 |
Linear axis quick travel speed | 10m/min |
Workpiece spindle rotation speed（A-axis） | 200rpm |
Rotation range of A-axis | 360° |
A axis spindle hole taper | ISO50 |
Pneumatic clamping range | 3~20mm |
SCHUNK collects clamping range | 3~32mm |
Grinding head swing Max rotation speed(C-axis) | 75rpm |
Rotation range of C-axis | 320°（-225°~95°） |
Workpiece spindle center height | 135mm |
Workpiece spindle radial runout | ≤0.005mm |
Grinding head spindle radial runout | ≤0.005mm |
Air cylinder clamping force adjusting range | 440-480kg |
Linear-axis resolving power | 0.001mm |
Rotation axis resolving power | 0.001° |
Cooling motor power | 3P |
Cooling motor capacity | 200L |
Voltage | AC 380V 50HZ 3 phase |
Total power | 20KW |
Machine size | 2200×1600×2400mm |
Machine weight | 5T |

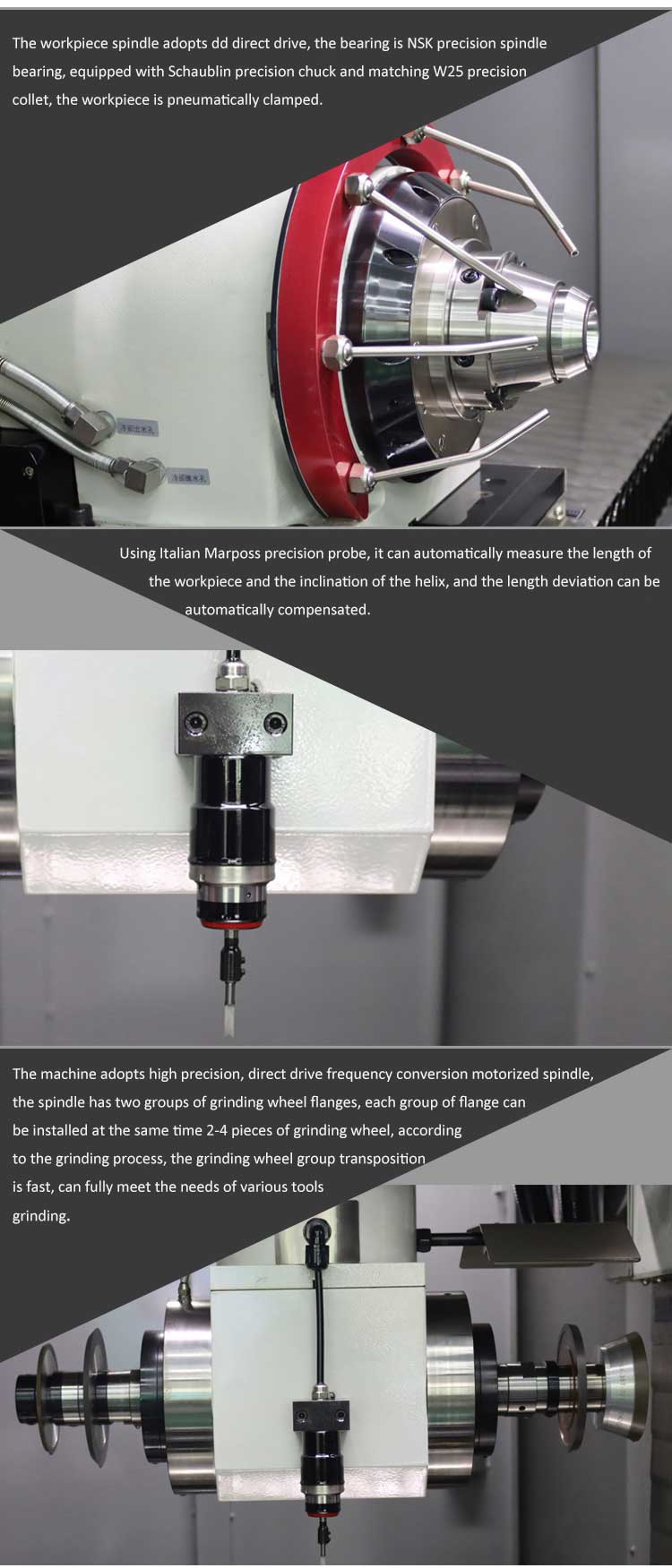

Details Images
Grinding Sample
