CNC Pneumatic Punching Machine for Sheet Metal Hole Automatic Power Punch Press Punching Machine
from
$20,000.00
Ex Tax: $20,000.00
- Stock: In Stock
- Model: SCJ006685
- SKU: SCJ006685
Products Sold: 0
Product Views: 144
Ask a Question About This Product
- Description
Product Description
High Precision Single Point Open Type Power Press
Pneumatic punch presses use the high-pressure gas produced by compressors to force metal into molds for wafer processing,stamping,embossing, etc.
● Steel plates welded as machine body, treated to remove internal stress, marked with high rigidity;
● Crankshaft longitudinally arranged, compact structure and beautiful outlook;
● Hexagonal guide rails of extra length, guide in high precision;
● PLC-controlled electric circuit, safety duplex valve for air pipelines, flexible and highly sensitive in movement,safe and reliable, single time, inching and continuous operations for options, conforming to the safety standard for stamping machines;
● Hydraulic overload protection device and rigid protection device to prevent damage of the machine tools due to overload;
● Combined-type pneumatic friction clutch-brake, steady engagement, low noise level;

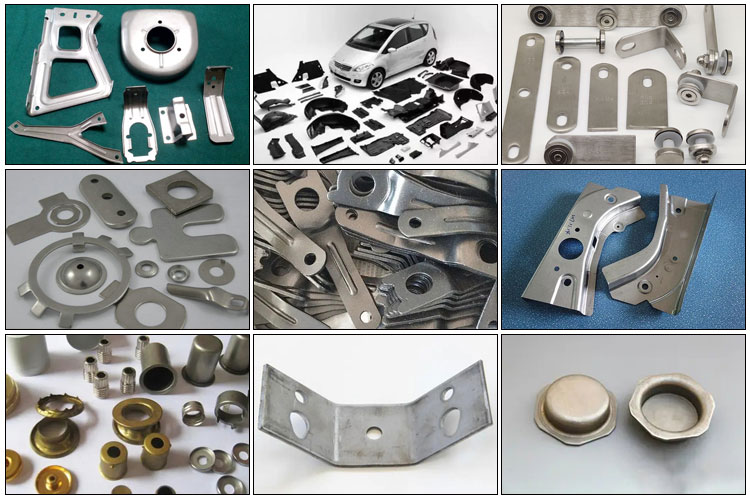

The Production Sample Display
The application fields are wide, such as: bolts and nuts, door and window hinges, precision electronic components, computercases, even missile aircraft... All can be produced by Pneumatic Power Press with mold.
Argument Table
Model | Unit | APA-25E | APA-45E | APA-60E | APA-80E |
Capacity | Ton | 25 | 45 | 60 | 80 |
Rated tonnage point | mm | 3 | 4 | 4 | 4 |
Stroke | mm | 10.5-100 | 11.5-110 | 12.5-120 | 12.5-120 |
Speed changing | s.p.m | 70-120 | 40-100 | 35-90 | 35-80 |
Die height | mm | 250 | 290 | 300 | 300 |
Slide adjustment | mm | 50 | 60 | 75 | 80 |
Slide area | mm | 470ｘ230ｘ50 | 560ｘ300ｘ60 | 700ｘ360ｘ70 | 770ｘ420ｘ70 |
Bolster area | mm | 680ｘ300ｘ70 | 850ｘ440ｘ80 | 900ｘ500ｘ80 | 1000ｘ550ｘ90 |
Shank hole | mm | ∅38.1 | ∅38.1 | ∅50 | ∅50 |
Main motor | kw.p | 3.7ｘ4 | 5.5ｘ4 | 5.5ｘ4 | 7.5ｘ4 |
Slide adjust device | HP | manual operation | electrial driving | ||
Air pressure | kg/c㎡ | 6 | |||
Press precision | GB/JIS 1 class | ||||
Presses dimension | mm | 1280ｘ850ｘ2270 | 1600ｘ950ｘ2555 | 1595ｘ1000ｘ2790 | 1800ｘ1100ｘ2745 |
Die cushion capacity | Ton | - | 2.3 | 3.6 | 3.6 |
Stroke | mm | - | 50 | 70 | 70 |
Die cushion effective area | mm2 | - | 300ｘ230 | 350ｘ300 | 450ｘ310 |
