Oem Sheet Metal Stamping Parts Die Hydraulic Pipe Punching Press Rotor Cutting Machine For Aluminium
from
$45,000.00
Ex Tax: $45,000.00
10 or more $35,000.00
- Stock: In Stock
- Model: SCJ006647
- SKU: SCJ006647
Products Sold: 0
Product Views: 134
Ask a Question About This Product
- Description
Product Description
Features:
- With High rigidity rack design, they are welded with the use of high-quality steel plates, through relieving of internal stresses,sothat stability and reliability and
reliability of the whole machine in precision are enhanced. - Consistent driving center and machine center to guarantee accurate and stable punching.
- In order to guarantee relative stationarity of machine operation, it is necessary to balance twobalancers.
- Moulding-adjustment precision is as high as 0.1mm, safe,speedy ,and reliable.
- Through hard oxidation and grinding ,such parts as bent axles,gear sets,and connecting rods possesss higher combination property and tolerance.
- Adopt highly sensitive and reliable clutch/brake and internationally top duplex,to guarantee precision and safety for operation and stop of press rams.
- Machine's structural design shall be reasonable,for the convenience of realizing automatic production,reducing cost,and improving efficiency.
- Possess advanced design concepts, low noise, low consumption,and energy saving.
Specification 1:
| Name | APA-15 | APA-25A | APA-25 | APA-35 | APA-45 | ||||
| Model | V type | V type | V type | H type | V type | H type | V type | H type | |
| Capacity | Ton | 15 | 25 | 25 | 35 | 45 | |||
| Rated tonnage point | mm | 1 | 3.2 | 3.2 | 1.6 | 3.2 | 1.6 | 3.2 | 1.6 |
| Speed changing | s.p.m | 120-180 | 60-140 | 60-140 | 130-200 | 40-120 | 110-180 | 40-100 | 100-150 |
| Stable speed | s.p.m | 130 | 110 | 110 | 85 | 75 | |||
| Stroke | mm | 60 | 80 | 60 | 30 | 70 | 40 | 80 | 50 |
| Die height | mm | 200 | 195 | 200 | 215 | 220 | 235 | 250 | 265 |
| Slide adjustment | mm | 50 | 50 | 50 | 55 | 60 | |||
| Slide area | mm | 300x230x50 | 300x230x50 | 300x230x50 | 300x230x50 | 400x300x60 | |||
| Bolster area | mm | 680x300x70 | 680x300x65 | 680x330x70 | 800x400x70 | 850x440x80 | |||
| Shank hole | mm | Φ38.1 | Φ38.1 | Φ38.1 | Φ38.1 | Φ38.1 | |||
| Main motor | kw.p | 2.2x6 | 3.7x4 | 3.7x4 | 3.7x4 | 5.5x4 | |||
| Slide adjust device | HP | Manual operation | |||||||
| Air pressure | kg/cm | 6 | 6 | 6 | 6 | 6 | |||
| Presses precision | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | ||||
| Presses dimension | 1236x830x192 1 | 280x850x220 | 1280x850x2200 | 1380x900x2400 | 1575x950x2500 | ||||
| Presses weight | mm | 1.8 | 2.1 | 2.1 | 3 | 3 | |||
| Die cushion capacity | Tons | ~ | ~ | ~ | 2.3 | 2.3 | |||
| Stroke | mm | ~ | ~ | ~ | 50 | 50 | |||
| Die cushion effective are | mm2 | ~ | ~ | ~ | 300x230 | 300x230 | |||
Specification 2:
| Name | APA-60 | APA-80 | APA-110 | APA-160 | |||||
| Model | V type | H type | V type | H type | V type | H type | V type | H type | |
| Capacity | Ton | 60 | 80 | 110 | 160 | ||||
| Rated tonnage point | mm | 4 | 2 | 4 | 2 | 6 | 3 | 6 | 3 |
| Speed changing | s.p.m | 35-60 | 80-120 | 35-80 | 80-120 | 30-60 | 60-90 | 20-50 | 40-70 |
| Stable speed | s.p.m | 65 | 65 | 50 | 35 | ||||
| Stroke | mm | 120 | 60 | 150 | 70 | 180 | 80 | 200 | 90 |
| Die height | mm | 310 | 340 | 340 | 380 | 360 | 410 | 460 | 510 |
| Slide adjustment | mm | 75 | 80 | 80 | 100 | ||||
| Slide area | mm | 500x360x70 | 560x420x70 | 650x470x80 | 700x550x90 | ||||
| Bolster area | mm | 900x500x80 | 1000x550x90 | 1150x600x110 | 1250x800x140 | ||||
| Shank hole | mm | Φ50 | Φ50 | Φ50 | Φ65 | ||||
| Main motor | kw.p | 5.5x4 | 7.5x4 | 11x4 | 15x4 | ||||
| Slide adjust device | HP | Manual operation | |||||||
| Air pressure | kg/cm | 6 | 6 | 6 | 6 | ||||
| Presses precision | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | |||||
| Presses dimension | 1595x1000x2800 | 1800x1180x2980 | 1900x1300x3200 | 2315x1400x3670 | |||||
| Presses weight | mm | 5.6 | 6.5 | 9.6 | 16 | ||||
| Die cushion capacity | Tons | 3.6 | 3.6 | 6.3 | 10 | ||||
| Stroke | mm | 70 | 70 | 80 | 80 | ||||
| Die cushion effective are | mm2 | 350x300 | 450x310 | 500x350 | 650x420 | ||||
Specification 3:
| Name | APA-200 | APA-260 | APA-315 | ||||
| Model | V type | H type | V type | H type | V type | H type | |
| Capacity | Ton | 200 | 260 | 315 | |||
| Rated tonnage point | mm | 6 | 3 | 7 | 3.5 | 7 | 3.5 |
| Speed changing | s.p.m | 20-50 | 50-70 | 20-40 | 40-50 | 20-35 | 35-50 |
| Stable speed | s.p.m | 35 | 30 | 30 | |||
| Stroke | mm | 200 | 100 | 250 | 150 | 280 | 170 |
| Die height | mm | 460 | 510 | 500 | 550 | 550 | 600 |
| Slide adjustment | mm | 110 | 120 | 120 | |||
| Slide area | mm | 850x630x90 | 950x840x100 | 1130x750x110 | |||
| Bolster area | mm | 1400x820x160 | 1500x840x180 | 1600x900x200 | |||
| Shank hole | mm | Φ65 | Φ65 | Φ65 | |||
| Main motor | kw.p | 18x4 | 22x4 | 30x4 | |||
| Slide adjust device | HP | Manual operation | |||||
| Air pressure | kg/cm | 6 | 6 | 6 | |||
| Presses precision | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | ||||
| Presses dimension | 2615x1390x4075 | 2780x1850x4470 | 2870x1980x483 | ||||
| Presses weight | mm | 23 | 32 | 36 | |||
| Die cushion capacity | Tons | 14 | 14 | 14 | |||
| Stroke | mm | 100 | 100 | 100 | |||
| Die cushion effective are | mm2 | 710x480 | 810x480 | 810x480 | |||

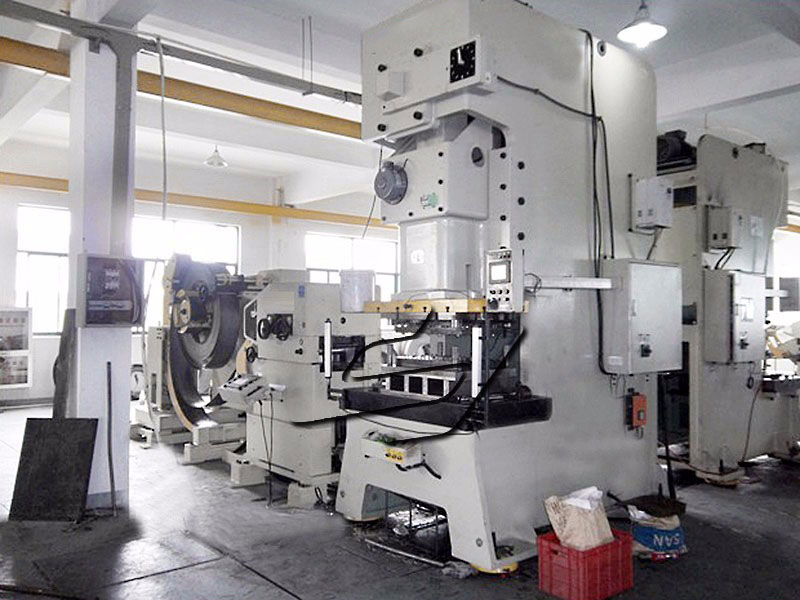

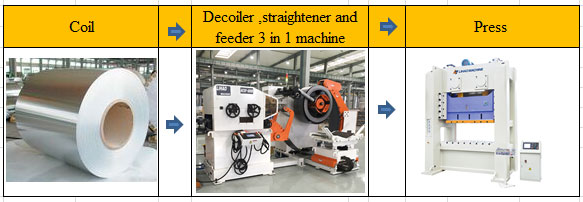

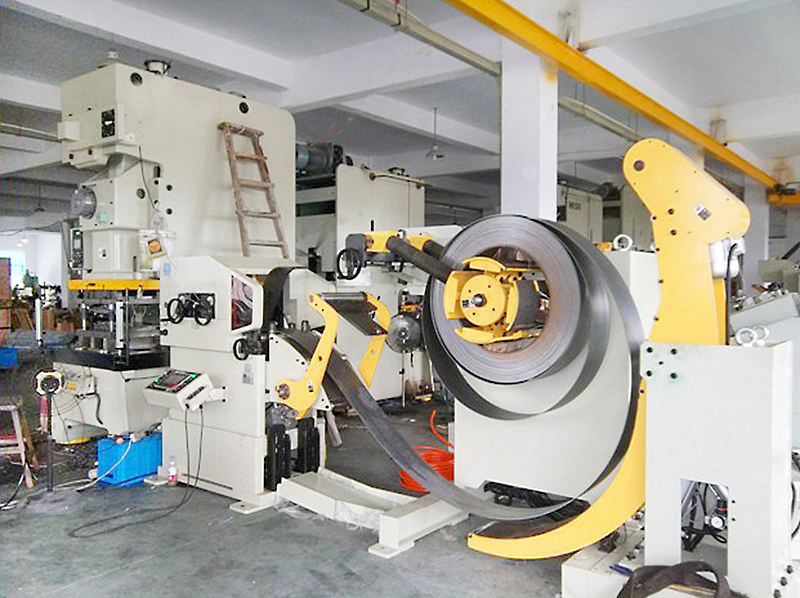

Detailed Images
