Affordable 2500MM Electric Shearing Machine For Sheet Metal
from
$12,800.00
Ex Tax: $12,800.00
3 or more $10,000.00
5 or more $9,900.00
- Stock: In Stock
- Model: SCJ006577
- SKU: SCJ006577
Products Sold: 0
Product Views: 273
Ask a Question About This Product
- Description
Products Description
HARSLE Guillotine Shearing Machine with ELGO P40
1.The streamlined welded Guillotine Shearing Machine structure achieves high rigidity.
2.The motors for backgauge are controlled by servo motor, which can achieve high accuracy and fast speed.
3.Top blade with four cutting edges and bottom blade with four cutting edges (6CrW2Si).
4.Knife gap and cutting angle can be programmed by CNC Controller ELGO P40 only by inputting material thickness.
5.Hydraulic overload can be protected by overflow valve, knife rack returns by Nitrogen cylinders.
6.Foot switch with emergency button can stop the CNC cutting machine immediately when accident happens.
7.CNC Hydraulic shearing machine with Multi-Language controller operational interface will be easy for customers from all over the world.
8.Front arms with ruler and roll balls can ensure the cutting accuracy and feed the material easily.
Product Details
P40 Controller
■ LCD Display
■ Multi-Language
■ Manual inching function
■ Single set operation
■ Program memory
■ Made in Germany
■ Cutting angle and knife gap control
SIEMENS Motor
German famous brand motor improves the lifespan of the machine and keeps the machine working in low noise environment.
FIRST Pump
American world famous brand for hydraulic pump performs well and provides great power for the whole hydraulic system.
KACON Foot Switch
South Korea brand food switch is movable and can stop the machine anytime by the emergency button.
Front Arms
Roller ball is instACalled on the arm with ruler can reduce the abrasion and feeder the machine easily and accurately.
Open Door Power off Switch
The machine will stop immediately once worker opens the door electric cabinet.
Motorized Blade Clearance Adjustment
Adjust the cutting blades gap by motor according the cutting thickness of the metal sheet can get better cutting
performance.
Safety Fence
Protective guards on each side can protect the user during operation.
Cutting Blade
Upper blade with 4 cutting edges, bottom blade with 4 cutting edges.
Servo Motor
Backgauge are controlled by YASKAWA servo motor with high accuracy and fast speed.
Rexroth Valve
World famous brand REXROTH, Sub-brand of BOSCH, which
is the professional hydraulic valve supplier.
Pneumatic Back Supporter(Optional)
Light Curtain(Optional)
Front Feeding Table(Optional)
Feeding the metal sheet automatically controlled by CNC controller with high precision and efficiency.
Installation Instructions
No. | Item | Unit | Quantity(In total) |
1 | Cutting blade | set | 1 |
2 | Fromt support arms | piece | 3 |
3 | Foot switch | piece | 1 |
4 | O-ring and combination gasket | set | 1 |
5 | Foundation bolts | set | 1 |
6 | Oil gun | piece | 1 |
7 | Allen wrench | set | 1 |
8 | Nitrogen inflation tool | set | 1 |
9 | Operation Manual | copy | 1 |
Manufacturing Technique
Cutting

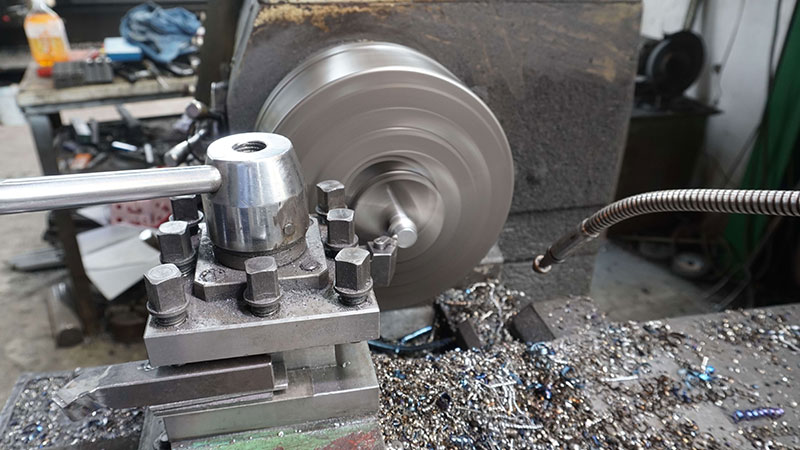

Lathe
Milling
Drilling
Welding
Boring
