Specifications

Industry-specific attributes
Cutting speed	120
Laser Type	Fiber Laser
Control System Brand	SOCOJE
Cooling Mode	Air Cooling
Other attributes
Condition	New
Applicable Material	Acrylic, Leather, MDF, Paper, Plastic, Plywood, Rubber, Stone, Wood
CNC or Not	Yes
Place of Origin	Jiangsu, China
Cutting Area	1500mm*3000mm
Laser Source Brand	MAX
Weight (KG)	2500 KG
warranty:	1 Year
Key Selling Points	High-accuracy
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction worksxa0, Energy & Mining, Other, Advertising Company
Machinery Test Report	Provided
Mode of Operation	continuous wave
Configuration	customized
Video outgoing-inspection	Provided
Features:	VISION SYSTEM
Warranty of core components	1 Year
Core Components	Motor, Pump
Products handled	Sheet Metal
Control Software	Wen Tai
Graphic Format Supported	AI, PLT, DXF, DXP
Cutting Thickness	0.5-3
After-sales Service Provided	Video technical support
Laser Head Brand	SOCOJE
Servo Motor Brand	SOCOJE
Guiderail Brand	SOCOJE
Application	LASER CUTTING
Optical Lens Brand	Wavelength
Packaging and delivery
Packaging Details	Container
Port	Nanjing
Supply Ability
Supply Ability	50 Set/Sets per Month

Description

Products Description

HARSLE HSX CNC Fiber Laser Cutting Machine with Exchange Table

CNC fiber laser cutting machine with exchange table, intelligent control of the exchange motor, the machine can be exchanged in 15 seconds. Double electric drive, intelligent and safe, clear and accurate positioning. The rail brush can be added to clear the residual slag on the head when the table is exchanged, making the bed run more smoothly.

Product Details

Main Features

● The beam quality of excellence（BPP） ● All constant power range BPP ● Use of long focal length can still get a small spot ● Photoelectric conversion efficiency 30% ● Maintenance free operation ● Modular design, "plug and play" ● Small, easy to install ● 100000 hours of free maintenance

Fiber 3015 3000W CNC Control Laser Cutting Machine Supplier

Servo Motor

Equipment adopts YASKAWA servo motor as drive motor.

Reducer

Equipment adopts Japan SHIMPO precision 3 arc-min gear reducer.

Linear Drive Unit

Germany bosch rexroth linear guide.

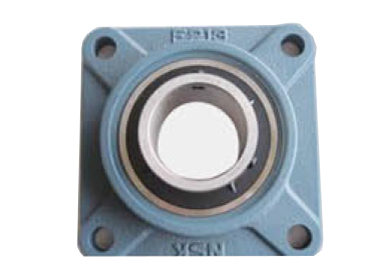

JAPAN NSK Bearings

These bearing housings have square flange which can be easily attached to a machine with four bolts.with its simple mounting face,this bearing unit is widely used.

Workbench

We have two types of laser sources: MAXPHOTONICS and IPG, Which can be supplied according to customer request.

Japan SMC Pneumatic Components

Stepless control of air pressure proportional to an electrical signal. Compact/lightweight (Integrated communication parts.)

France Schneider Electronic Component

Circuit protection against short-circuit currents,overload currents.

Auto Lubrication System

Electrical lubrication is a kind of gear pump with rational construction, great performance,complete functions.

Main Functions

● Support the AI, DXF, PLT, Gerber, and ect.graphics data format, accept raw Mater Cam, Type3, Wen Tai software into international standard G code.

● When pen/lead in the external files such as DXF, automatic optimization, including: remove duplicate lines, merger connected lines, remove tiny graphics, automatic distinguish between inner and outer mold and sorting and so on. Automatic optimization process can be customized, the above each function can also be performed manually.

● Set in the form of wysiwyg introduced pinout, slotting compensation, micro connection, bridge connection, over cut, leave a gap, etc. ● Flexible automatic sorting and manual sorting, supported by group part of the fixed processing order.

● The same set of software support pipe cutting and flat cutting, the same programming; Support the intersecting line cutting.

● The unique processing order browsing function, more interactive than simulation to check the processing order. ● Support along with speed the power regulation, can be set up separately lead in and lead out linear velocity.

● Support height directed cutting, automatic seeking edge and plate outside cutting and lift the cutting head.

Working Principle

1.Moving Direction 2.Auxiliary Gas 3.Nozzle 4.Nozzle Distance 5.Molten Material 6.Residues 7.Cutting Section 8.Heat Affected Zone 9.Joint-Cutting

Help You to Solve the Following Problems Easily

SAVE MAN POWER	■ Save manpower cost
		■ Solve the problem-
		High cost and difficult mangement of labor force
HIGH EFFICIENCY	■ High speed, convenient operation
		■ Solve the problem-
		Artificial or common mechanical processing with low speed, low efficiency
GOOD QUALITY	■ High precision smooth section is convenient for welding processing or assembling
		■ Solve the problem-
		Poor precision,coarse section,large slit
STANDARDIZATION	■ Computer operation standardization production
		■ Solve the problem-
		Batch job error
LOW COST	■ Almost zero maintenance cost
		■ Solve the problem-
		The equipment maintenance cost is high,the continuous investment
ENVIRONMENTAL PROTECTION	■ High-eficiency laser source,dust and smoke treament device
		■ Solve the problem-
		High energy consumption,serious pollution

Fine Processing

Low cost in use	power consumption is only 20-30% of CO2 laser
High speed	2-3 time faster than yag or CO2 laser
High accuracy	Fine laser beam,slim kerf
Low maintenance	Almost zero maintenance cost
