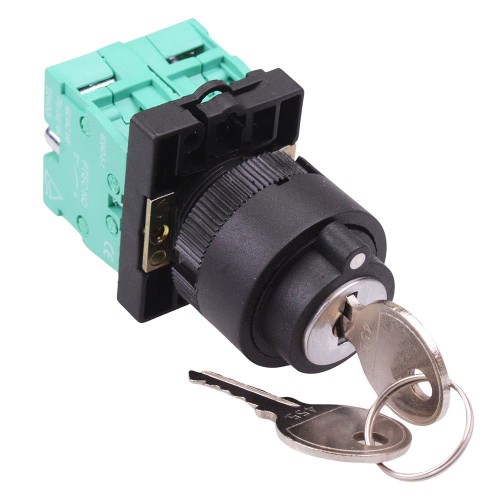

PtecK2CRL 2 Position Plastic Key Switch 10A 2NO

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	2NO
Head Type	Key
Contact Rating	10A 500V
Current Rating	10A
Illuminated	No
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +70°C
Panel Cut Out	22.5mm
Product Series	Ptec
Terminal Type	Screw
Voltage Rating	500V

Description

2 position key operated switch from socoje, featuring 2NO contacts and a plastic housing and suitable for standard 22.5mm mounting. The switch comes with 2 keys removable only in the left position.

Latched mechanism

Plastic housing

Supplied with mounting block

Fits panel thickness 1-6mm

22.5mm diameter

Rated insulation voltage: 500V

Rated thermal current: 10A

2NO contacts
