Red Mushroom Momentary 22mm Push Button Switch Stainless Steel IP67 NO/NC

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Colour	Red
Contact Configuration	SPST
Contact Material	Silver Alloy
Contact Rating	5A 250VAC
Current Rating	5A
Illuminated	No
Electrical Life	50,000 Cycles
Material	Stainless Steel
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Temperature	-25°C to +65°C
Panel Cut Out	22mm
Panel Thickness	16mm Max
Switch Operation	On-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

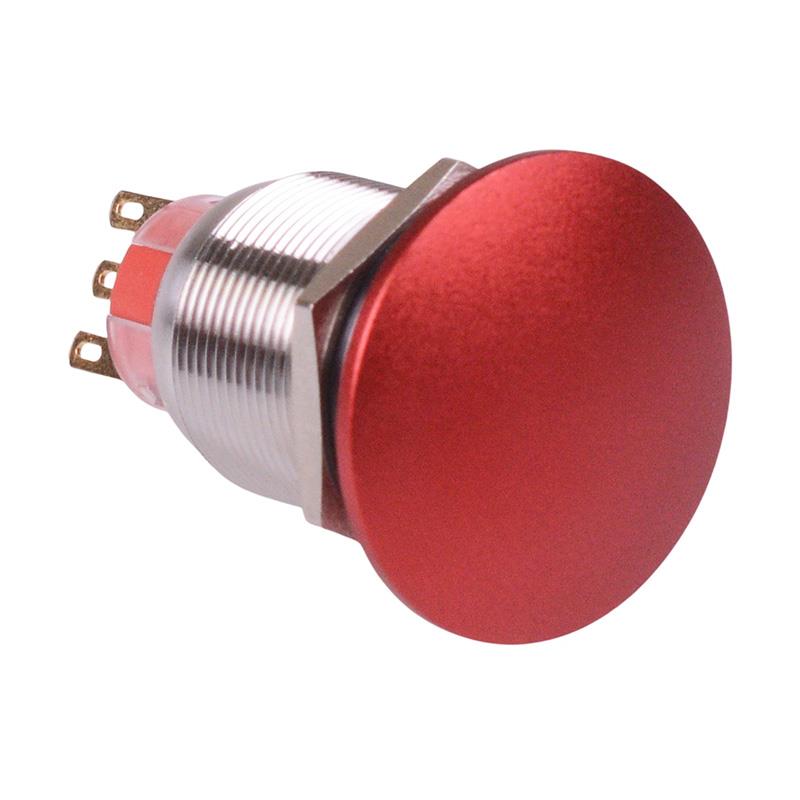

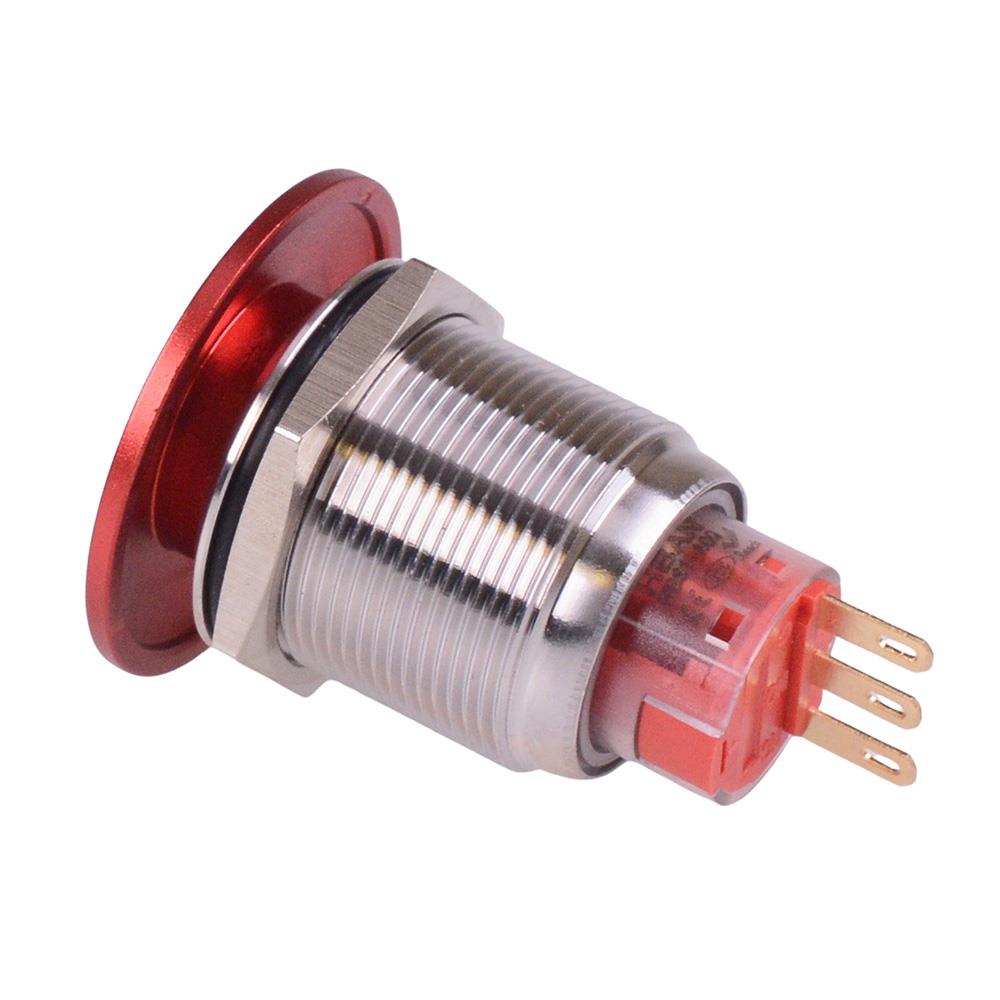

Red 22mm momentary vandal resistant push button switch featuring normally open SPST contacts. The switch features a red mushroom button and is constructed from a stainless steel housing. The switch features an IP67 protection rating and is suitable for a wide range of applications including security, control panels, industrial, automotive etc.

Off-(On) operation

SPST-NO contacts

Red mushroom button

Panel cut-out: 22mm

Panel thickness: 16mm max

2.8x0.5mm quick connect / solder terminals

Rating: 5A 250V

Protection rating: IP67

Head diameter: 31.8mm

Dimensions: 48.3 x 31.8mm (height x diameter)
