$4.50
Ex Tax: $4.50
  • Stock: In Stock
  • Model: SCJ2300122J
  • Dimensions: 10.00cm x 5.00cm x 5.00cm
  • SKU: SCJ2300122J
Products Sold: 0
Product Views: 14

We only use llPORTED reed switches for the float switches, this is the most important component of thefloat switches. The durable construction of these magnetic reed switches ensures long, trouble-free service.When the efects of shock, wear and vibration are minimized, these hermetically reed sealed switches provideprecise repeatability with no more than 1% deviation. The sensor actuation points remain constant over the ifeof the float switch.

Float Switches operate on a direct and simple principle, they are more reliable and cheaper. Float is available with different materials and sizes, different working power and special requirement can be customized for you!

  • Technical Parameters
place of origin
China
warranty
1 year
customized support
yes
brand name
SCJ
model number
SCJ2300122J
Product name
Float Type Level Switch
Material
PP
Fit for
Electrical appliances ,hot water mattress,etc
Working temperature
Normally : 80-85° , High : 120°
Rated current
0.5A/1.0A
Max Voltage
110VDC/220VDC
Min Voltage
220VDC/350VDC
Max Contact Rating
10W/50W
Cable length
350mm or customization
Output
Signal

Packaging and delivery

Selling Units:
Single item
Single package size:
10X5X5 cm
Single gross weight:
0.200 kg
  • Description

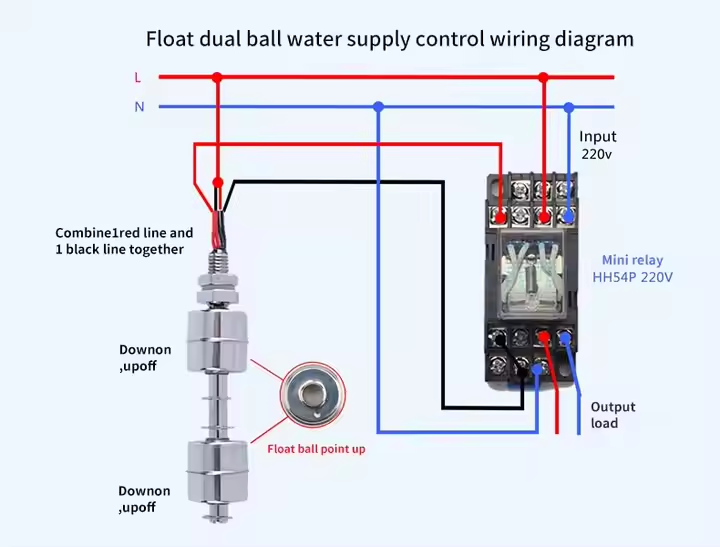

Float switch is composed of reed switch and float. The float will activate the reed switch soon as  the rising or falling fluid reaches the defined fluid level, a contact is closed or opened. This instructs a magnet located in the float to activate one or more reed switches in the riser of the float switch.

PVDF Float Type Level Switch Multi Level Float Switch Water Level Tank

PVDF Float Type Level Switch Multi Level Float Switch Water Level Tank

PVDF Float Type Level Switch Multi Level Float Switch Water Level Tank

PVDF Float Type Level Switch Multi Level Float Switch Water Level Tank

PVDF Float Type Level Switch Multi Level Float Switch Water Level Tank

PVDF Float Type Level Switch Multi Level Float Switch Water Level Tank
