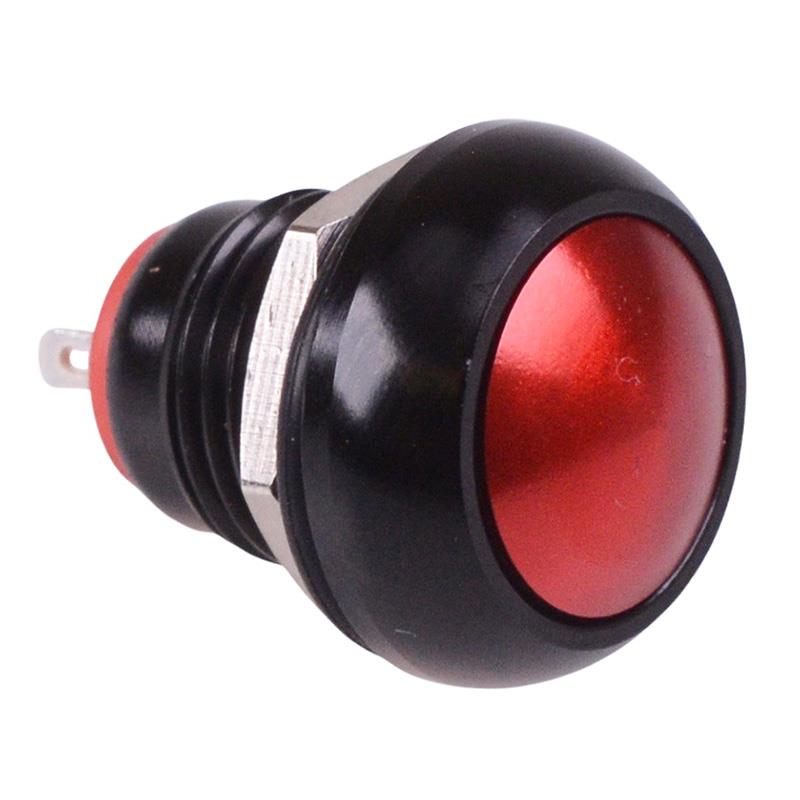

Red Momentary 12mm Metal Round Push Button Switch NO/NC

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Colour	Red
Contact Configuration	NO/NC
Contact Rating	0.1A 12VDC
Current Rating	0.1A
Illuminated	No
Electrical Life	10,000 Cycles
Material	Aluminium Alloy
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP40
Operating Temperature	-25°C to +65°C
Panel Cut Out	12mm
Panel Thickness	4mm Max
Switch Operation	On-(On)
Terminal Type	Solder
Voltage Rating	12VDC

Description

Red momentary push button switch featuring a round actuator and normally open contacts. The switch features an aluminium housing and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.

Momentary operation

NO/NC contacts

IP40 protection rating

Solder terminals

Panel cut-out: 12mm

Panel thickness: 4mm max

Rating: 0.1A 12V

Dimensions: 22.3 x 17.8mm (height x diameter)
