Red Momentary 22mm Push Button Switch White 'O' NO/NC

Red Momentary 22mm Push Button Switch White 'O' NO/NC
Red Momentary 22mm Push Button Switch White 'O' NO/NC
Red Momentary 22mm Push Button Switch White 'O' NO/NC
Red Momentary 22mm Push Button Switch White 'O' NO/NC
Red Momentary 22mm Push Button Switch White 'O' NO/NC
0 reviews - Write a review
from
$5.83
Ex Tax: $5.83
10 or more $5.19
25 or more $4.89
50 or more $4.60
100 or more $4.38
  • Stock: In Stock
  • Model: SCJ013261
  • SKU: SCJ013261
Products Sold: 0
Product Views: 21
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
MOQ1
ColourRed
Contact Configuration1NO-1NC
Contact Rating10A 400V
Current Rating10A
IlluminatedNo
Electrical Life50,000 Cycles
Mounting StylePanel
Number of Positions2
Operating Temperature-25°C to +65°C
Panel Cut Out22mm
Panel Thickness5mm
Terminal TypeScrew
Voltage Rating400V
  • Description

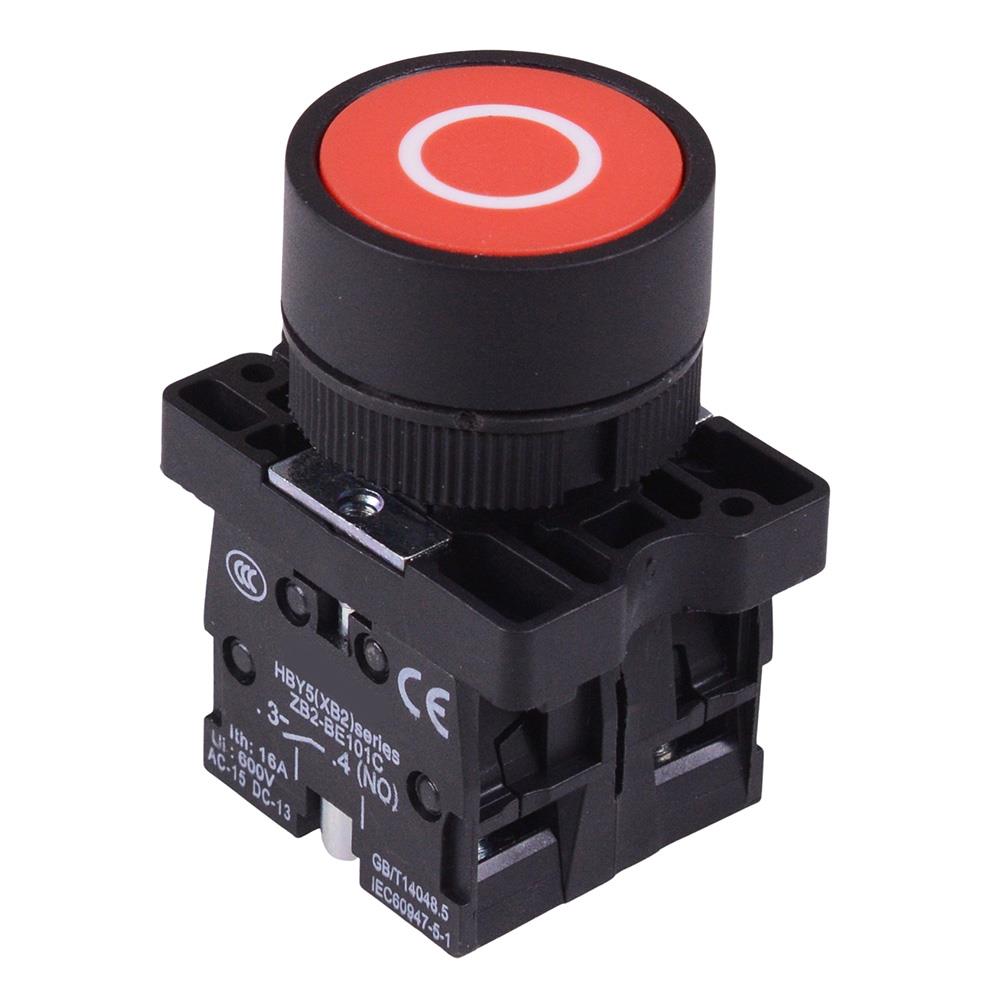

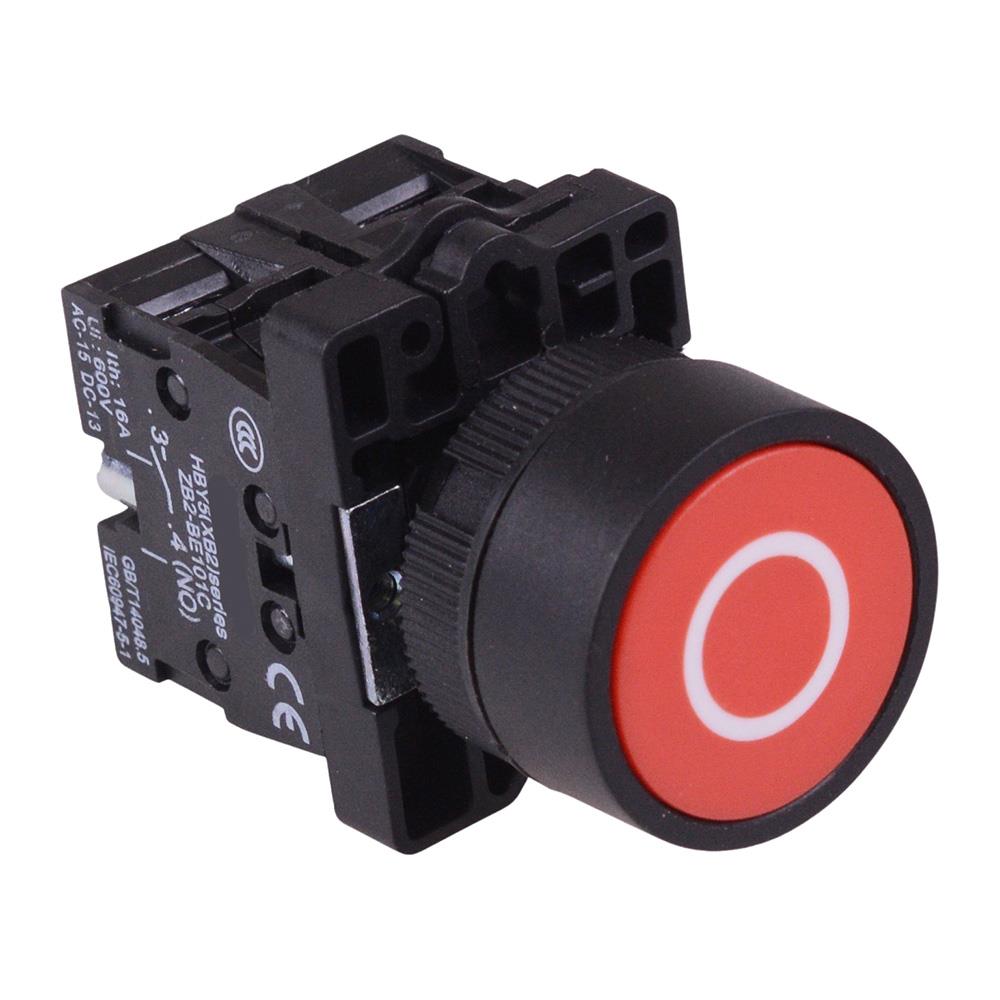

Red industrial push button switch wth white 'O' symbol, featuring 1NO1NC contacts. The switch features 10A rated contact blocks and is terminated using the screw terminals. The switch requires a 22mm panel cut-out and is suitable for a wide range of industrial applications.

  • Corrosion resistant plastic construction
  • Interchangeable contact blocks and operators
  • Panel thickness: 5mm max
  • Panel cut-out: 22mm
  • Rated insulation voltage: 400V
  • Rated thermal current: 10A
  • 1NO and 1NC contacts
  • Head diameter: 30mm

    • Red Momentary 22mm Push Button Switch White 'O' NO/NC

    Red Momentary 22mm Push Button Switch White 'O' NO/NC
