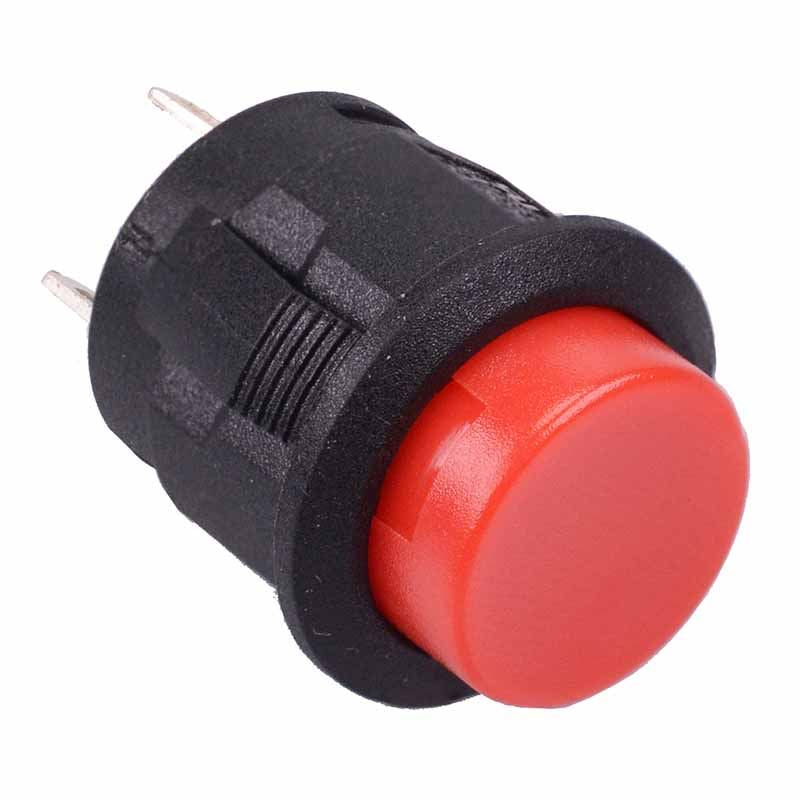

Red Off-(On) 15mm Push Button Momentary Switch SPST R13-523A

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Red
Contact Configuration	SPST
Contact Rating	3A 125VAC, 1.5A 250VAC
Current Rating	3A @ 125VAC
Illuminated	No
Illumination Colour	Non Illuminated
Material	PA66
Mounting Style	Panel
Number of Positions	2
Panel Cut Out	15mm
Panel Thickness	0.75-3.0mm
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	250VAC

Description

Red Off-(On) 15mm Push Button Momentary Switch SPST R13-523A

Red push fit panel mount momentary push button switch featuring SPST normally open contacts and solder terminals. The switch 3A current rating making them suitable for low power applications.

SPST-NO contacts

Off-(On) operation

Panel cut-out: 15mm

Solder terminals

Rating: 1.5A 250VAC, 3A 125VAC

Dimensions: 25 x 19mm (Length x Diameter)

12.8mm button diameter

socoje R13-523A series
