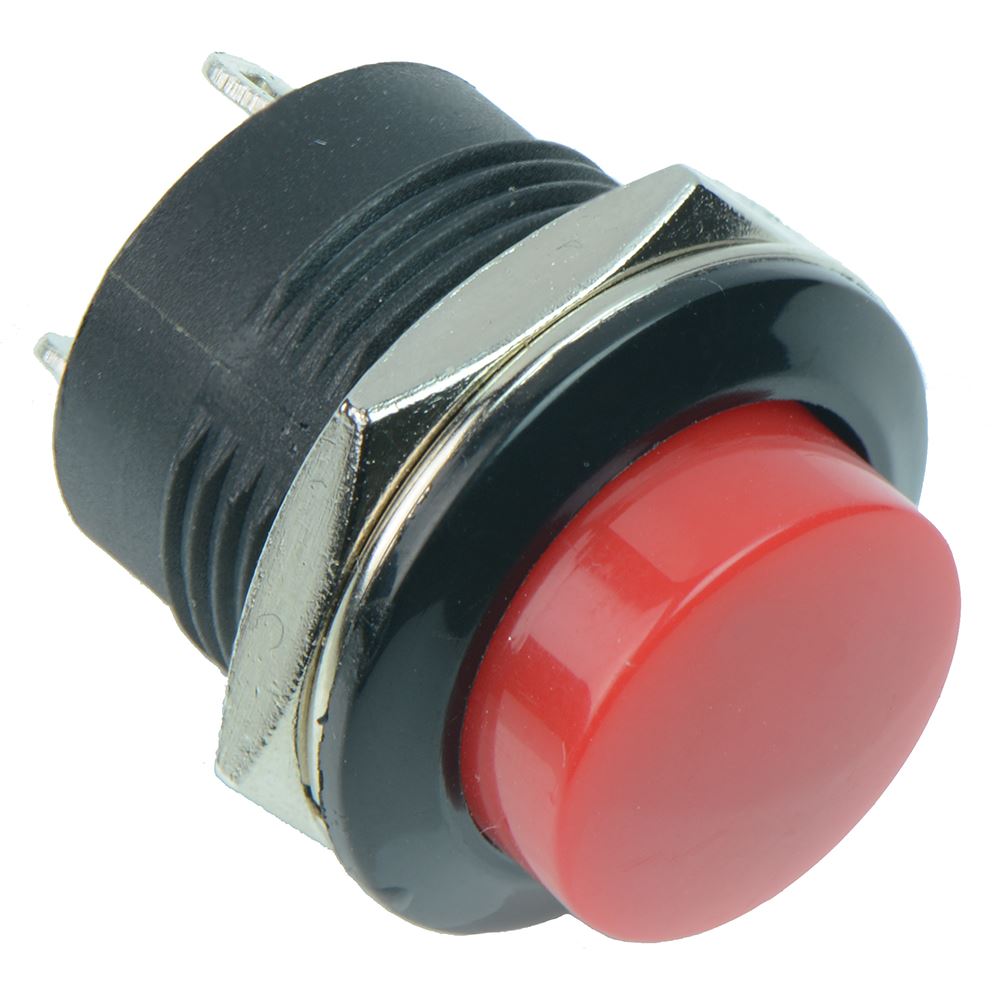

Red Off-(On) Low Profile Round 16mm Momentary Push Button Switch 3A SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Red
Contact Configuration	SPST
Contact Rating	6A 125VAC, 3A 250VAC
Current Rating	6A @ 125VAC
Illuminated	No
Electrical Life	10000 Cycles Min
Illumination Colour	Non Illuminated
Material	PA66
Mounting Style	Panel
Number of Positions	2
Operating Force	250gf
Operating Temperature	0°C to +85°C
Panel Cut Out	16mm
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	250VAC

Description

Red Off-(On) Low Profile Round 16mm Momentary Push Button Switch 3A SPST

Round push button switch with Off-(On) momentary action. Suitable for panel mounting the switch comes with a locking nut making it ideal for a range of applications.

Colour: Red Button

Rating: 6A 125VAC, 3A 250VAC

Off-(On) momentary action

16mm Panel Cut Out

12.9mm Button Diameter

Solder Lug Terminals

SPST contacts

6mm maximum panel thickness
