Red Off-(On) Metal Low Profile 16mm Round Momentary Push Button Switch 3A SPST
from
$2.33
Ex Tax: $2.33
25 or more $2.03
100 or more $1.85
250 or more $1.68
500 or more $1.56
- Stock: In Stock
- Model: SCJ014039
- SKU: SCJ014039
Products Sold: 0
Product Views: 22
Ask a Question About This Product
- Specifications
Attributes List | |
Actuation | Momentary |
Colour | Red |
Contact Configuration | SPST |
Contact Rating | 6A 125VAC, 3A 250VAC |
Current Rating | 6A @ 125VAC |
Illuminated | No |
Electrical Life | 10000 Cycles Min |
Illumination Colour | Non Illuminated |
Mounting Style | Panel |
Number of Positions | 2 |
Operating Temperature | 0°C to +85°C |
Panel Cut Out | 16mm |
Switch Operation | Off-(On) |
Terminal Type | Solder |
Voltage Rating | 250VAC |
- Description

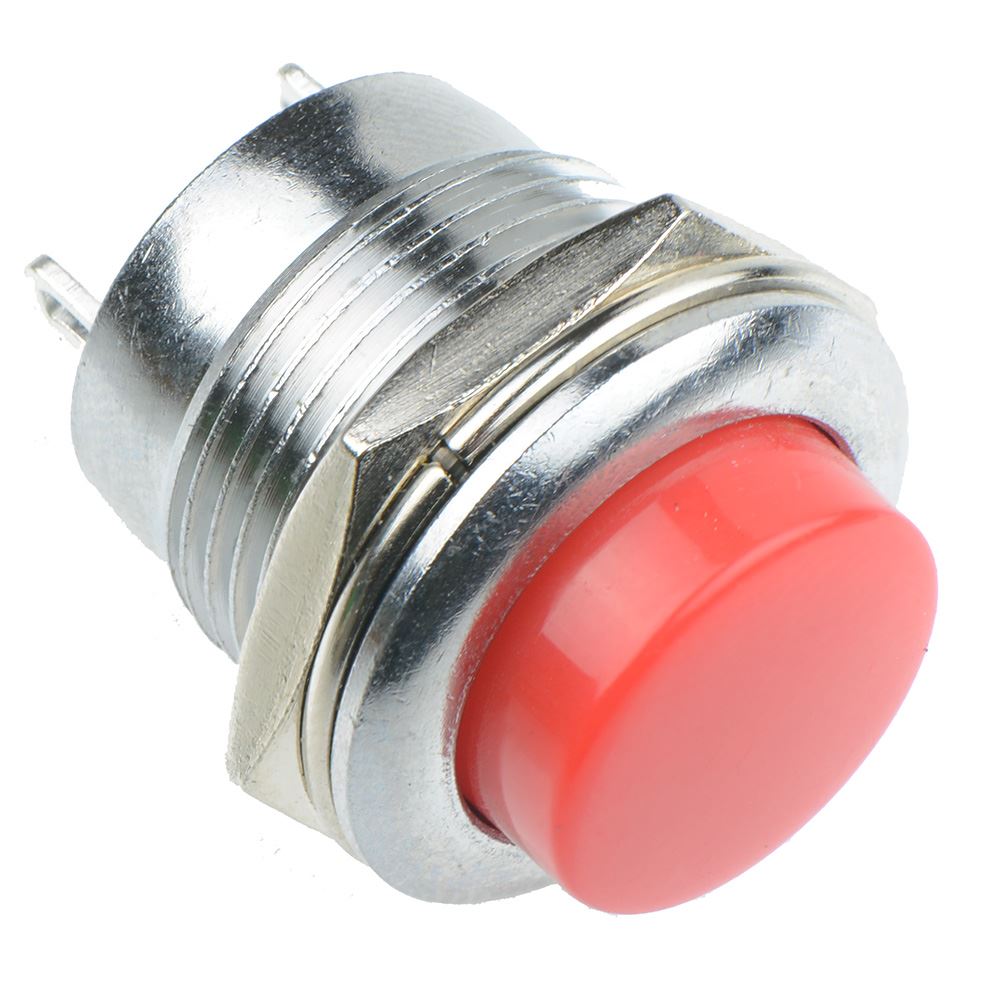

High quality metal push button switch with Off-(On) momentary action. Suitable for panel mounting the switch comes with a nickel plated brass body and locking nut. Can be used for a wide variety of applications.
Colour: Red Button Rating: 6A 125VAC, 3A 250VAC Off-(On) momentary action Nickel Plated Metal Housing 16mm Panel Cut Out 12.9mm Button Diameter Solder Lug Terminals SPST contacts 6mm maximum panel thickness
