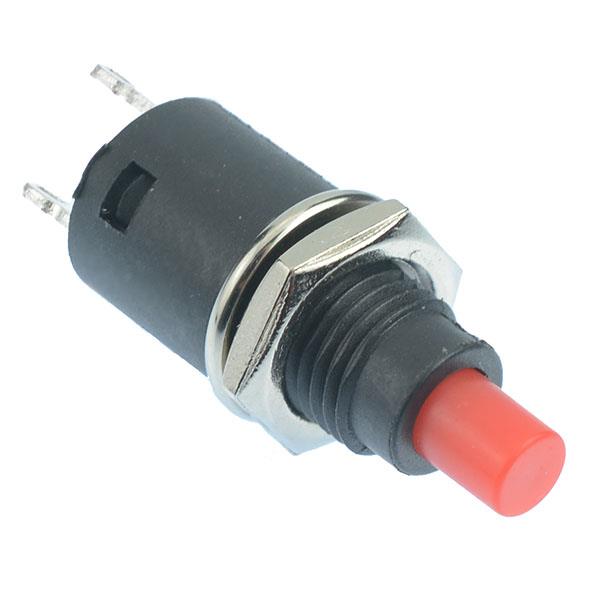

Red Off-(On) Miniature Momentary 7mm Push Button Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Red
Contact Configuration	SPST
Contact Rating	1.5A 250VAC
Current Rating	1.5A
Illuminated	No
Electrical Life	10,000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	7.2mm
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	250VAC

Description

Miniature momentary push button switch featuring a red button and compact design suitable for low power applications.

Off-(On) momentary operation

7.2mm panel cut-out

Rating: 3A 125VAC, 1.5A 250VAC

Solder lug terminals

Dimensions: 27.7 x 9mm (Height x Diameter)
