Red On-Off illuminated Rectangle Rocker Switch SPST 230V

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Red
Contact Configuration	SPST
Contact Rating	15A 250VAC, 20A 125VAC
Current Rating	20A
Illuminated	Yes
Electrical Life	10,000 Cycles
Illumination Colour	Red
Illumination Voltage	230VAC
Material	PA66
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	28 x 10mm
Switch Operation	On-Off
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

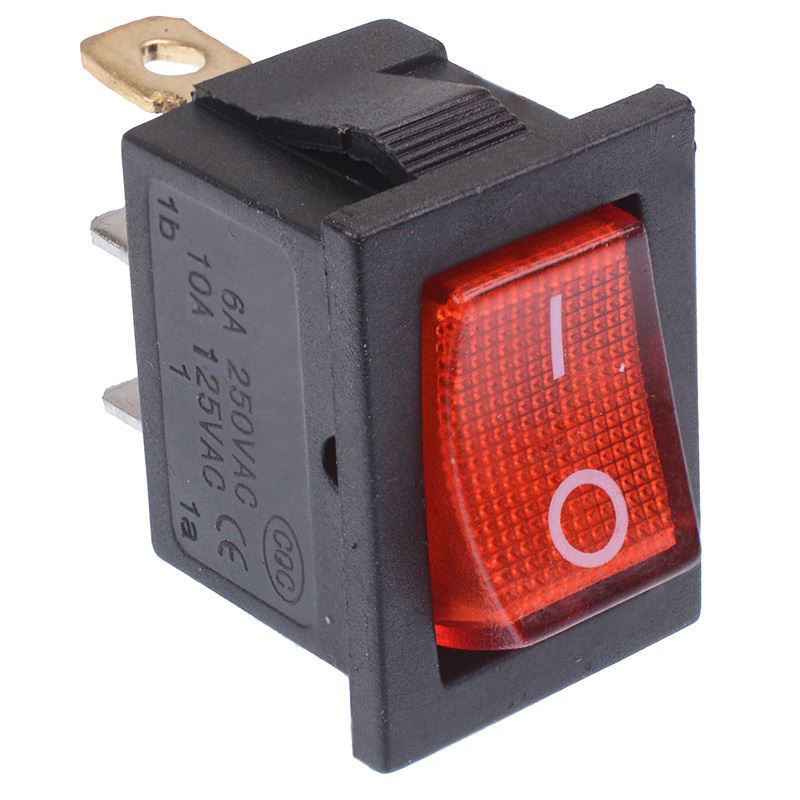

Red On-Off illuminated Rectangle Rocker Switch SPST 230V

Red 230V illuminated rectangle rocker switch with SPST contacts and On-Off action suitable for snap-in mounting. The switch features a compact housing with a high rating making it suitable for a wide range of applications.

SPST contacts

On-Off action

Red 230V illumination

6.3mm quick connect terminals

Snap-in mounting

Panel cut-out: 28 x 10mm

Rating: 20A 125VAC, 15A 250VAC

Dimensions: 36.3 x 14 x 32mm (Height x Width x Length)
