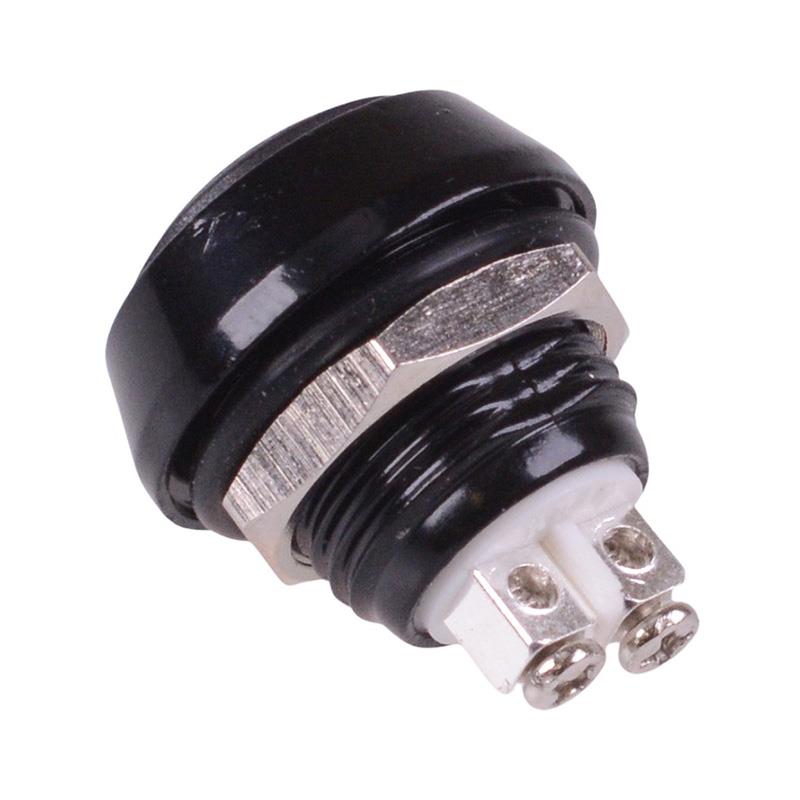

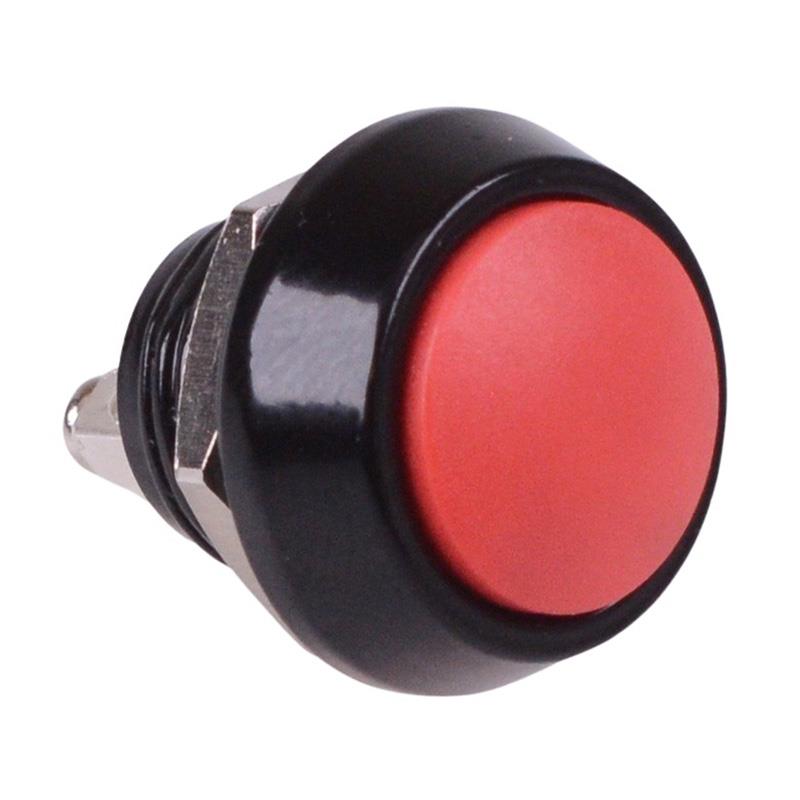

Red Round Off-(On) Momentary 12mm Metal Push Button Switch Screw IP65 SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Colour	Red
Contact Configuration	SPST
Contact Material	Silver Alloy
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	No
Electrical Life	50,000 Cycles
Material	Zinc Alloy
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +65°C
Panel Cut Out	12mm
Panel Thickness	5mm Max
Switch Operation	Off-(On)
Terminal Type	Screw
Voltage Rating	250VAC

Description

Red momentary push button switch featuring a round actuator and normally open contacts. The switch features a zinc alloy housing and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.

Momentary operation

SPST-NO contacts

IP65 protection rating

Screw terminals

Panel cut-out: 12mm

Panel thickness: 5mm max

Rating: 3A 250V

Dimensions: 19.5 x 17.5mm (height x diameter)
