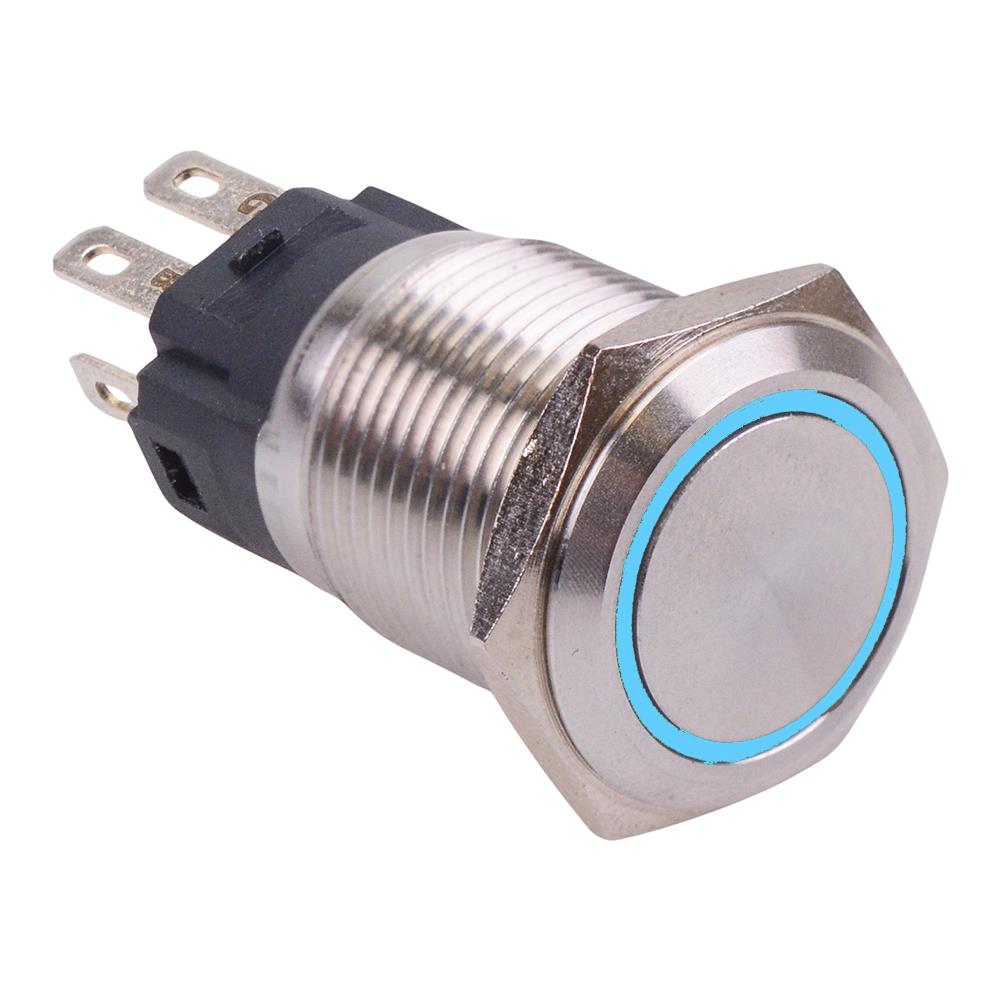

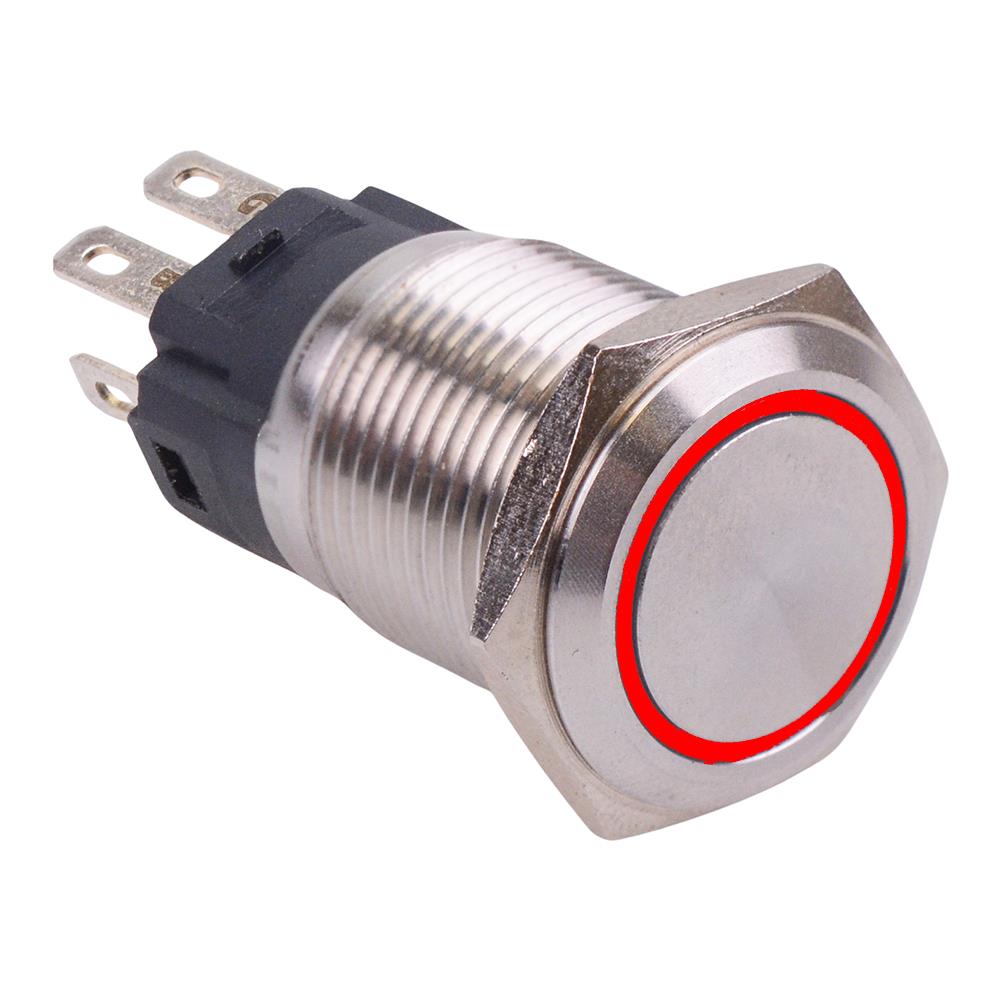

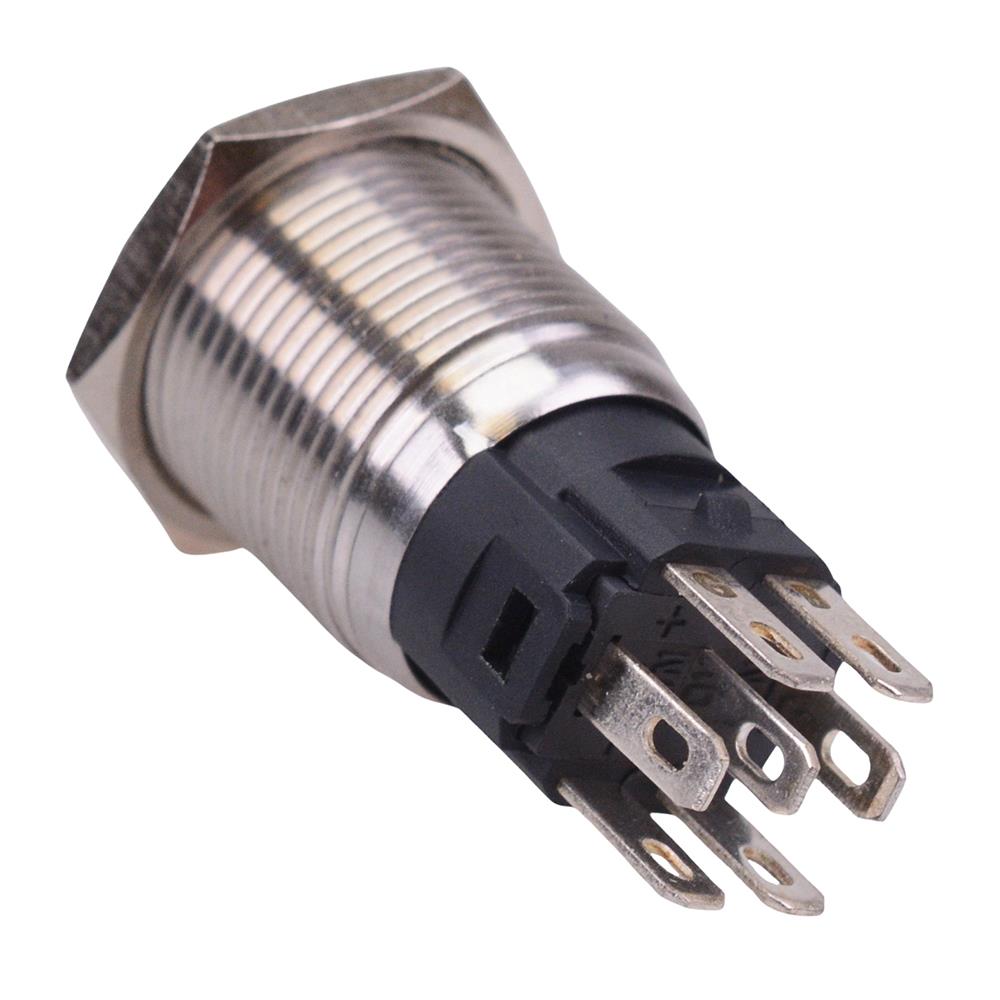

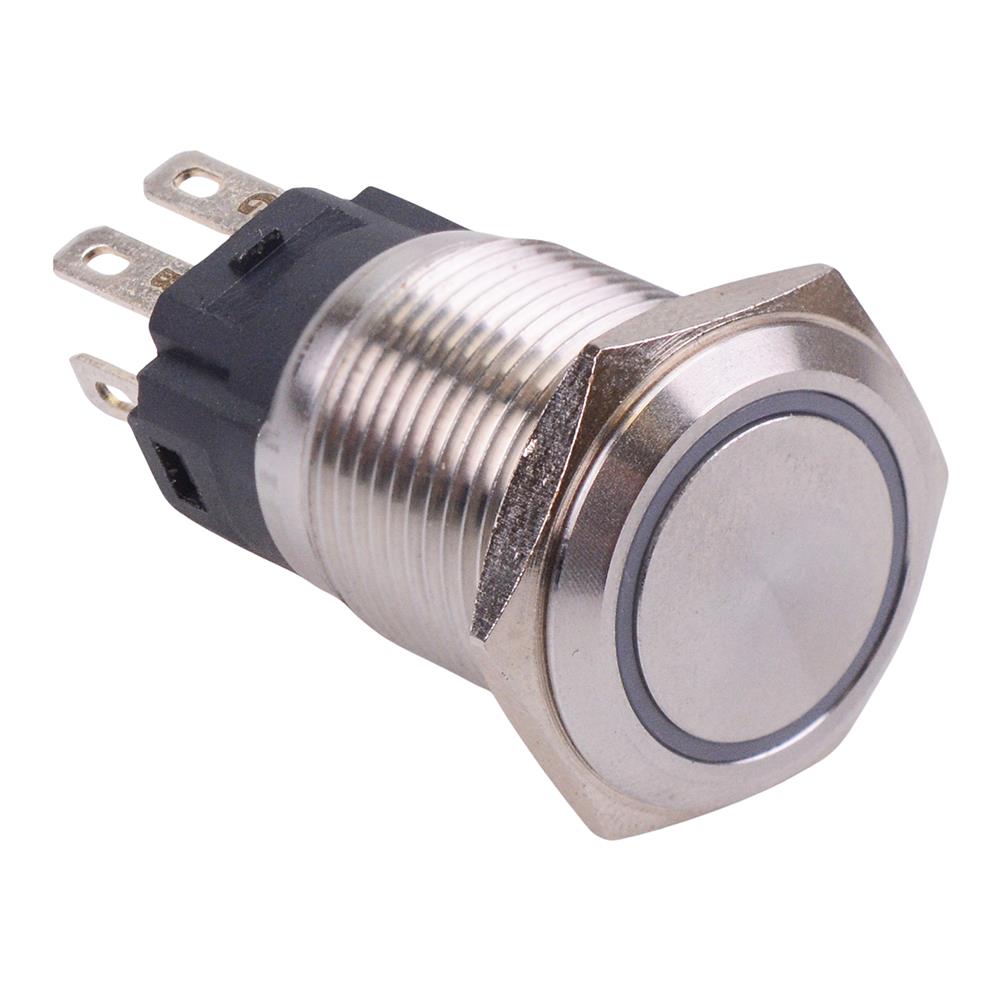

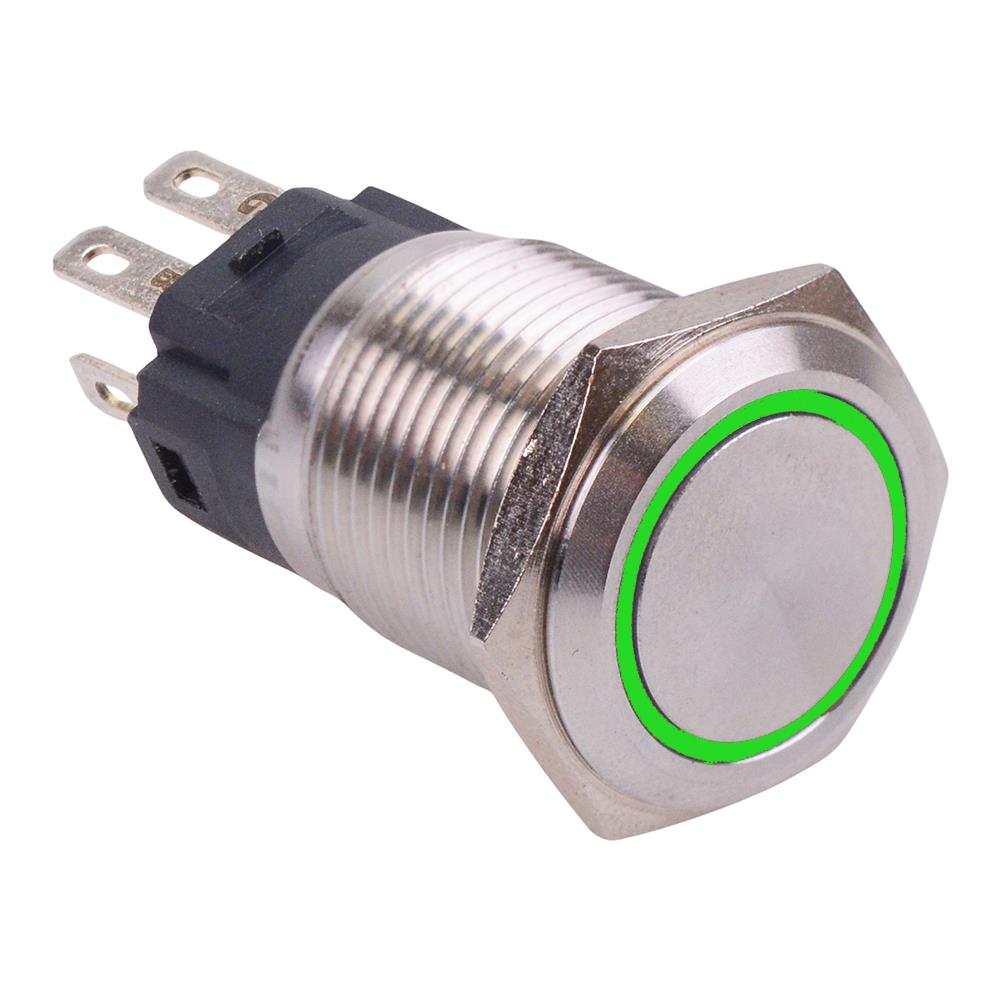

RGB Momentary 16mm Vandal Resistant Push Button Switch 12V SPDT

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	RGB
Contact Configuration	SPDT
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	Yes
Electrical Life	100,000 Cycles
Illumination Colour	RGB
Illumination Voltage	12VDC
Material	Stainless Steel
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-20°C to +55°C
Panel Cut Out	16mm
Panel Thickness	1.0-10mm
Switch Operation	On-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Momentary stainless steel vandal resistant push button switch featuring a RGB LED and IP65 protecton rating. The switch fits 16mm panel cut-outs and is suitable for a wide range of 12V applications including automotive.

Momentary switch action

NO / NC contacts

RGB 12V LED

Panel cut-out: 16mm

Maximum panel thickness: 10mm

Rating: 3A 250VAC

Protection rating: IP65

2.8mm quick connect terminals

Dimensions: 36 x 18mm (Length x Diameter)
