RGB Momentary 19mm Vandal Resistant Push Button Switch 12V SPDT

RGB Momentary 19mm Vandal Resistant Push Button Switch 12V SPDT
RGB Momentary 19mm Vandal Resistant Push Button Switch 12V SPDT
RGB Momentary 19mm Vandal Resistant Push Button Switch 12V SPDT
RGB Momentary 19mm Vandal Resistant Push Button Switch 12V SPDT
RGB Momentary 19mm Vandal Resistant Push Button Switch 12V SPDT
RGB Momentary 19mm Vandal Resistant Push Button Switch 12V SPDT
RGB Momentary 19mm Vandal Resistant Push Button Switch 12V SPDT
RGB Momentary 19mm Vandal Resistant Push Button Switch 12V SPDT
RGB Momentary 19mm Vandal Resistant Push Button Switch 12V SPDT
RGB Momentary 19mm Vandal Resistant Push Button Switch 12V SPDT
RGB Momentary 19mm Vandal Resistant Push Button Switch 12V SPDT
0 reviews - Write a review
from
$14.98
Ex Tax: $14.98
10 or more $13.33
25 or more $12.58
50 or more $11.83
100 or more $11.24
  • Stock: In Stock
  • Model: SCJ013756
  • SKU: SCJ013756
Products Sold: 0
Product Views: 131
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
ColourRGB
Contact ConfigurationSPDT
Contact Rating3A 250VAC
Current Rating3A
IlluminatedYes
Electrical Life100,000 Cycles
Illumination ColourRGB
Illumination Voltage12VDC
MaterialStainless Steel
Mounting StylePanel
Number of Positions2
Protection LevelIP65
Operating Temperature-20°C to +55°C
Panel Cut Out19mm
Panel Thickness1.0-10mm
Switch OperationOn-(On)
Terminal TypeQuick Connect
Voltage Rating250VAC
  • Description

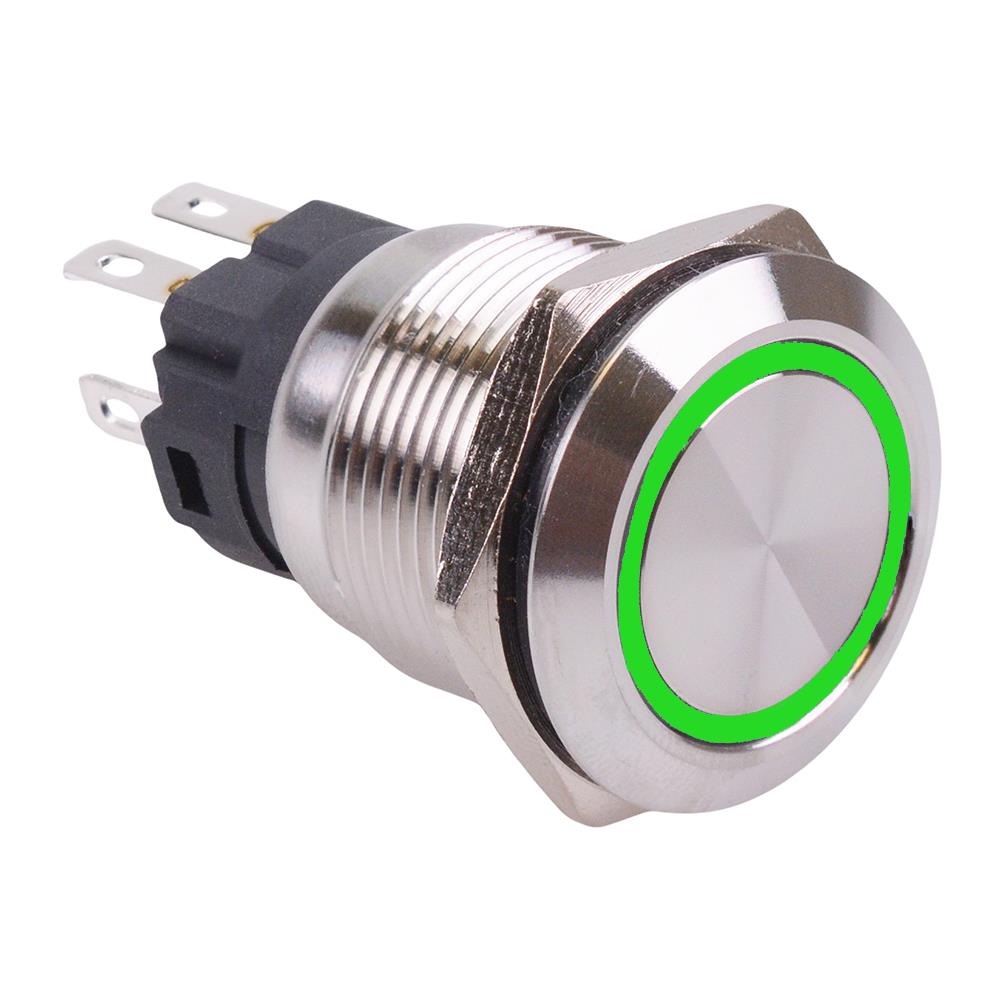

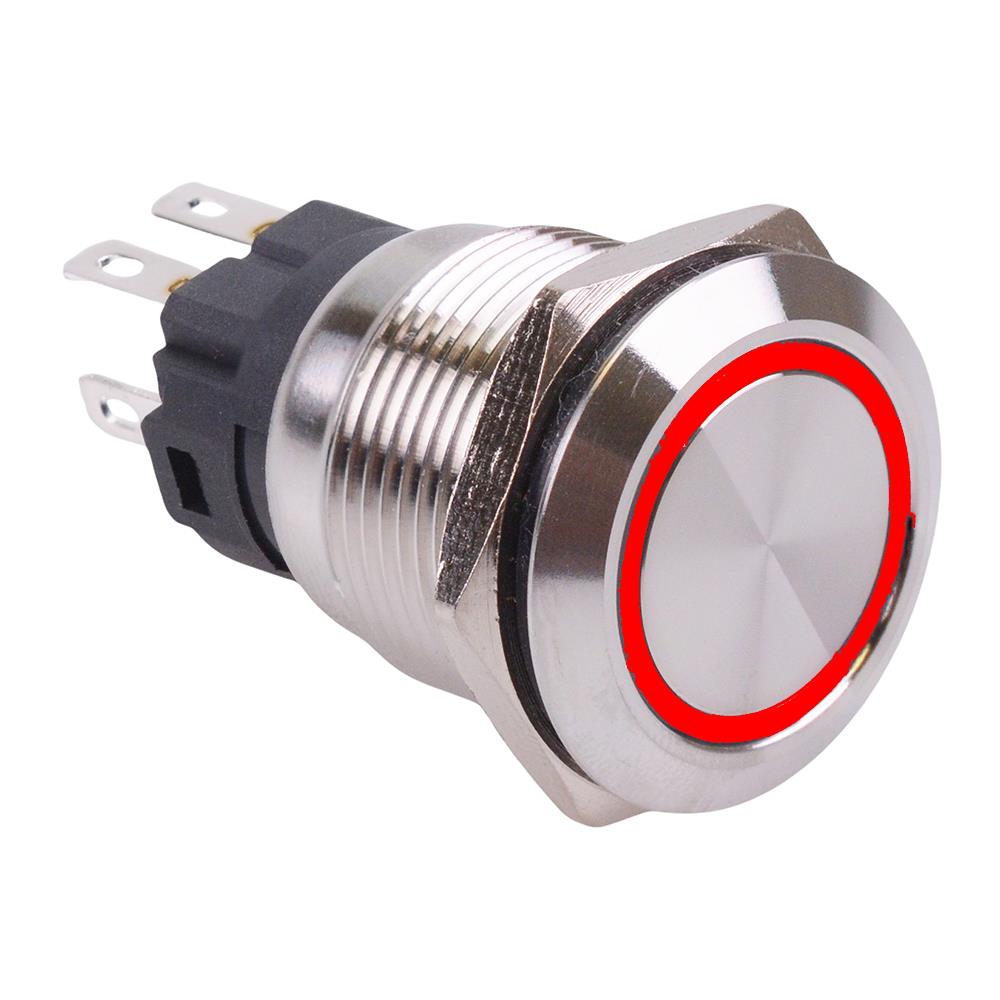

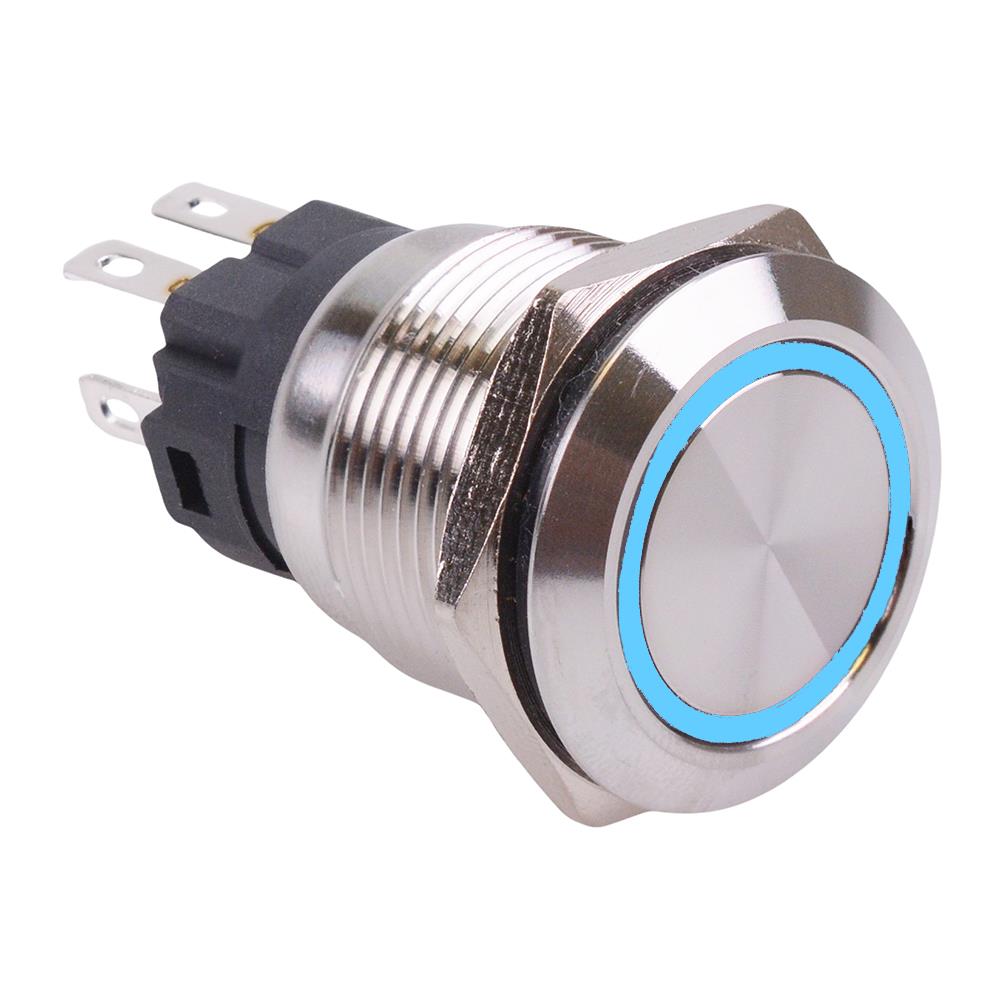

Momentary stainless steel vandal resistant push button switch featuring a RGB LED and IP65 protecton rating. The switch fits 19mm panel cut-outs and is suitable for a wide range of 12V applications including automotive.

  • Momentary switch action
  • NO / NC contacts
  • RGB 12V LED
  • Panel cut-out: 19mm
  • Maximum panel thickness: 10mm
  • Rating: 3A 250VAC
  • Protection rating: IP65

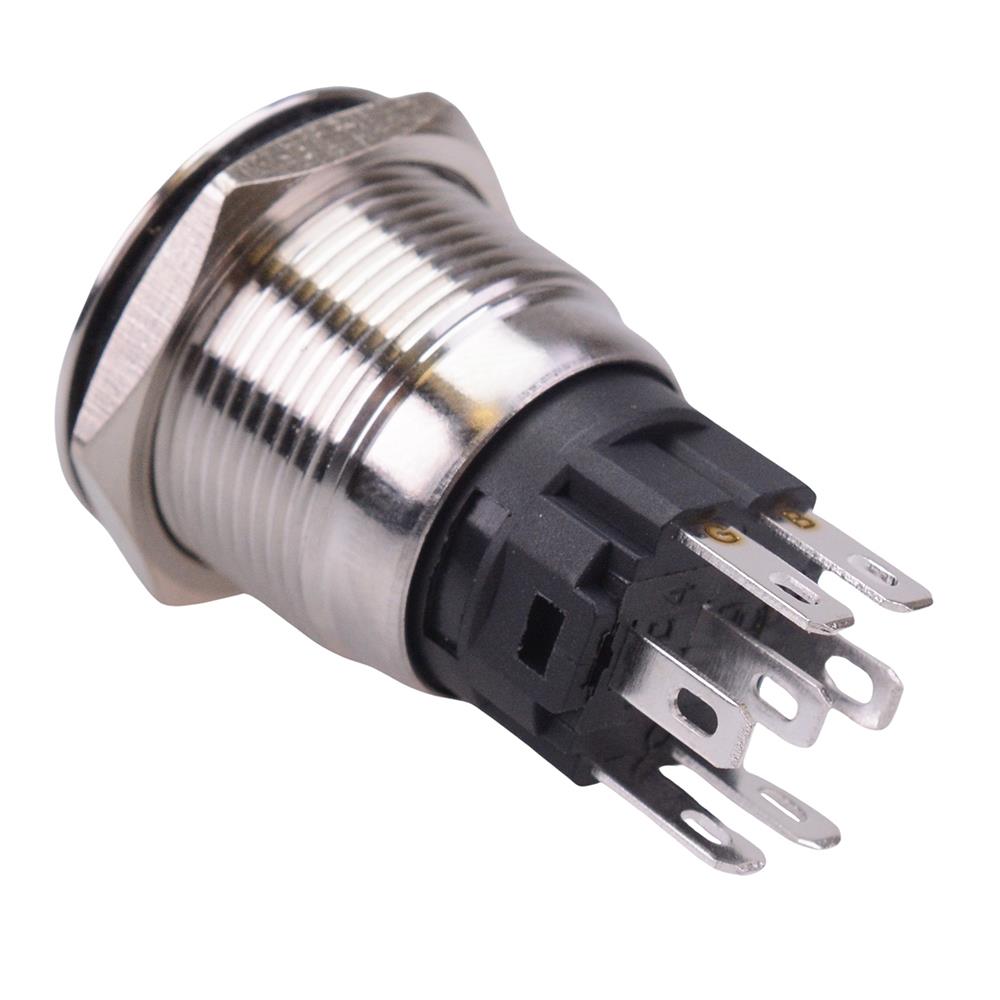

  • 2.8mm quick connect terminals
  • Dimensions: 37 x 22mm (length x diameter)
