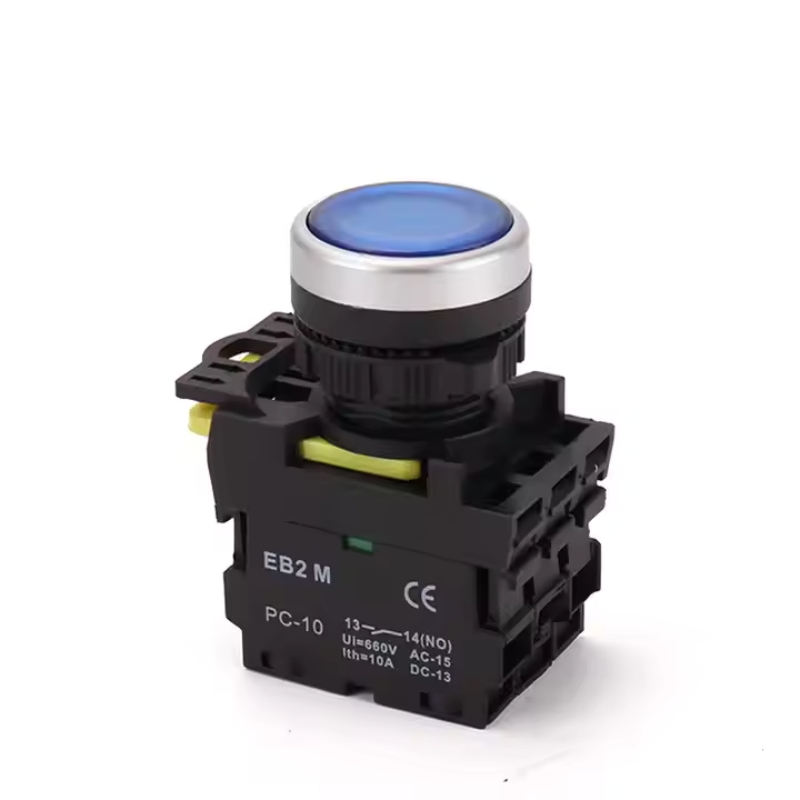

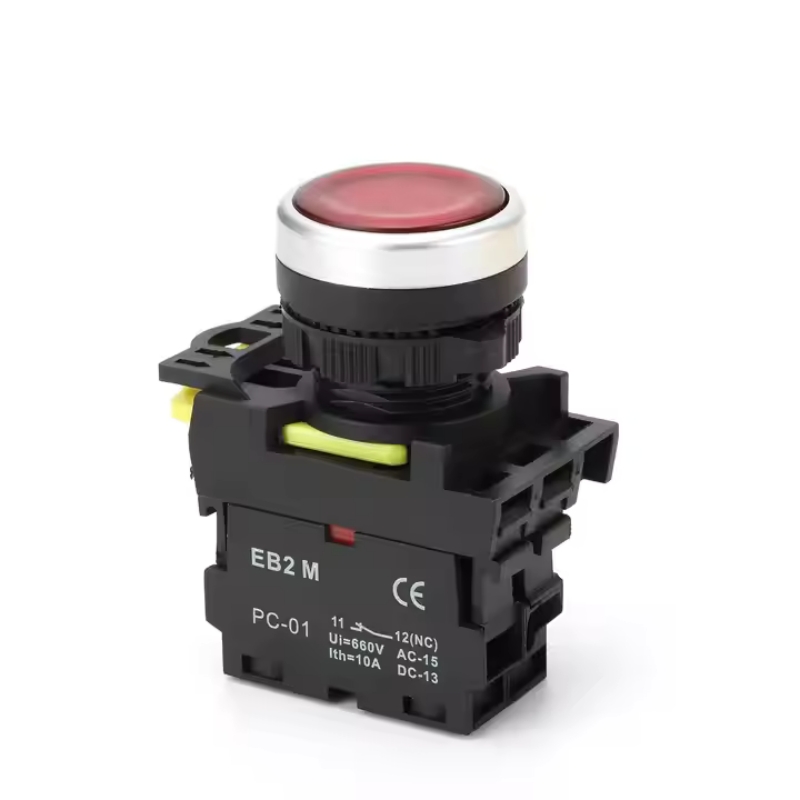

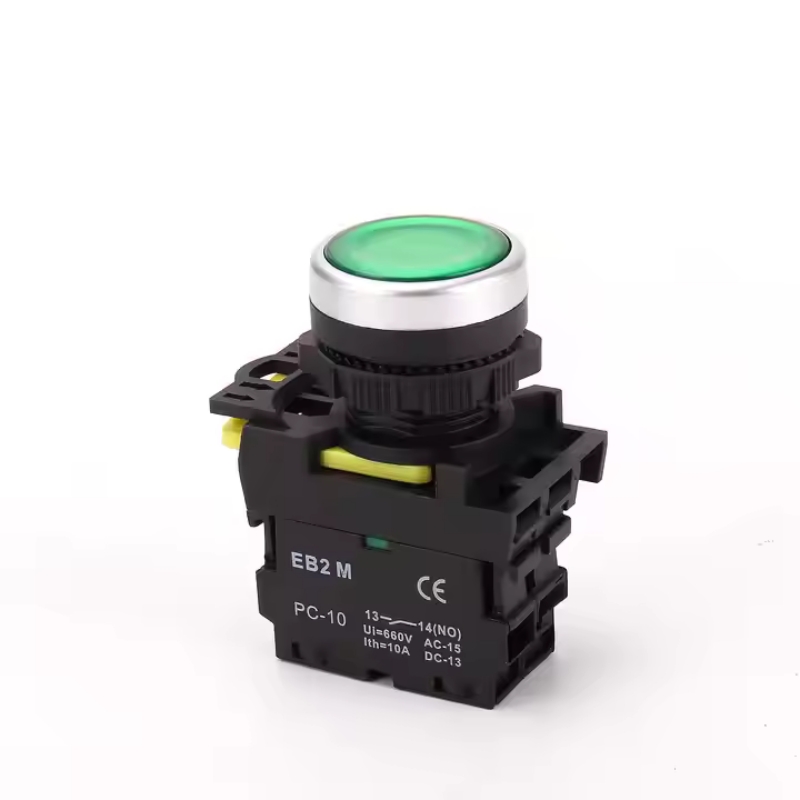

self-locking Industrial push button Switches 22mm IP65 waterproof NO NC round flat LED plastic momentary push button switches with light
$1.15
Ex Tax: $1.15
- Stock: In Stock
- Model: SCJ2630015C
- SKU: SCJ2630015C
Products Sold: 0
Product Views: 7
This product has a minimum quantity of 20
Ask a Question About This Product
- Description
self-locking Industrial push button Switches 22mm IP65 waterproof NO NC round flat LED plastic momentary push button switches with light
Structure The switch unit slow-break and self-cleaning. It uses modular combustion mode and you can combine from one to eight switch units optional, so can make the product meet requirement of many special control circuits. It can be connected more safely
and installed firmly. Economical plastic type can be used in acid environment. Protective Degree The standard is IP40 and some types can reach IP67 with the seal cover.
1. Operating temperature:-25C-55C(no freezing)The average value in 24 hrs no more than+35℃
2. Operating humidity:45~85%rh; 45~85%rh(no condensation)
3. Contact resistance: ≤30mΩ
4. Insulation resistance: ≥100M
5. The highest Dielectric streagth:3000VAc50hz
6. Vibration resistance: 50hz,Amplitude1.0mm
7. Shock resistance: >10g
8. Life---Mechanical: Momentary:>2000000 times: alternate, selector>1000000 times: key-lock, emergency>1000000 times
9. Life---Electrical: >500000tmes
10. Terminal: Screw terminal, connecting ability:min:1x0.5mm2 max:1x2. 5mm2 or 2x1.5 mm2(with or without connecting link)
11. Operation: 80gf-2200gf, according to the quantity of switch units Operation travel: About 5. 5mmm (For push button type)
2. Operating humidity:45~85%rh; 45~85%rh(no condensation)
3. Contact resistance: ≤30mΩ
4. Insulation resistance: ≥100M
5. The highest Dielectric streagth:3000VAc50hz
6. Vibration resistance: 50hz,Amplitude1.0mm
7. Shock resistance: >10g
8. Life---Mechanical: Momentary:>2000000 times: alternate, selector>1000000 times: key-lock, emergency>1000000 times
9. Life---Electrical: >500000tmes
10. Terminal: Screw terminal, connecting ability:min:1x0.5mm2 max:1x2. 5mm2 or 2x1.5 mm2(with or without connecting link)
11. Operation: 80gf-2200gf, according to the quantity of switch units Operation travel: About 5. 5mmm (For push button type)
、
