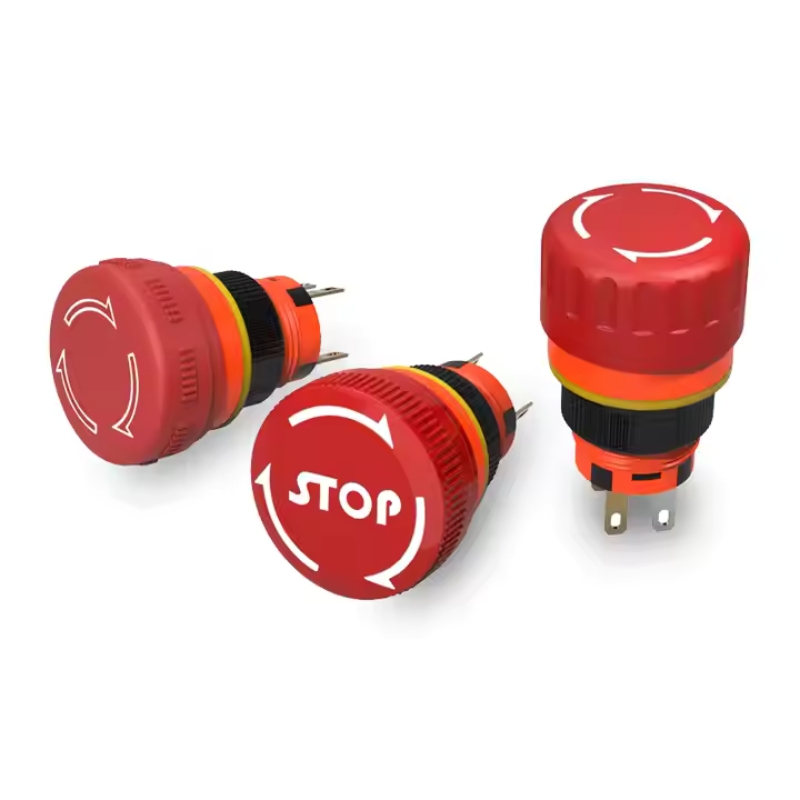

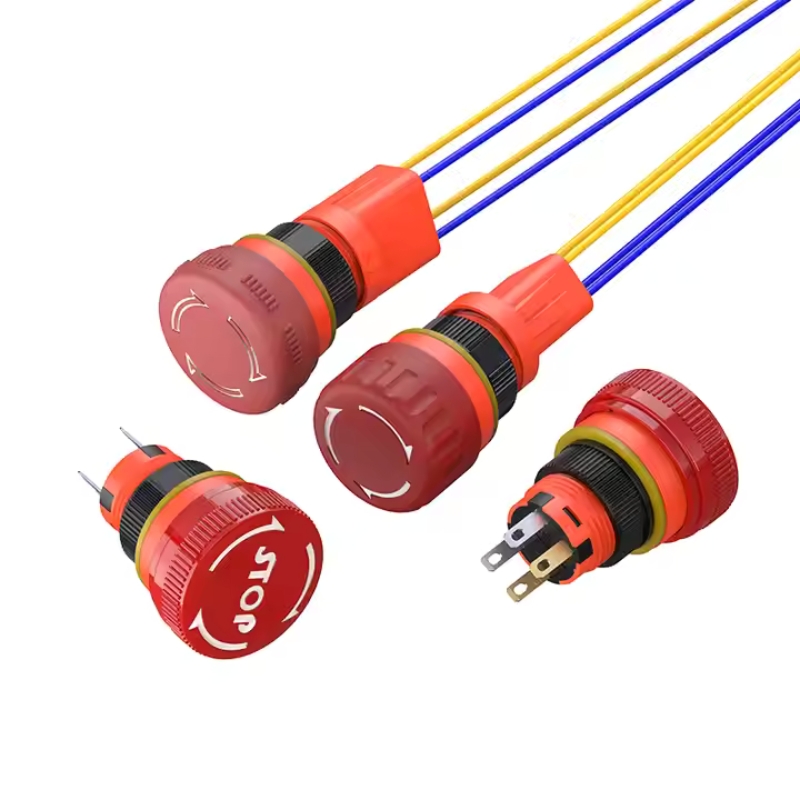

Self-Locking Push Button Switch Waterproof Emergency Stop Switches Plastic Mushroom Stop Switch

This product has a minimum quantity of 5

Buy Now

Technical Parameters

LED

Application

Electric

Material

Stainless Steel

Structure

Electronic

Head Type

Round Head

Terminal Type

Pin terminal

Whether the smart

illuminated Type

full illuminated

IP level

IP65

Switch Combination

1NO1NC

Model Number

LB16SM

LED

Whether the Smart

Heating current

Ith: 10A, 250VAC

Head shape

Mushroom

Switch combination

Self-locking (default)

Action form

1NO1NC 1 normally open 1 normally closed contact, independent contact

Waterproof level

Customized IP67, anti-collision IK10 (refer to GB/T 20138)

Working environment

-40°C~+85°C (non-vacuum state, without freezing)

Protection Level

IP65

Description

Self-Locking Push Button Switch Waterproof Emergency Stop Switches Plastic Mushroom Stop Switch

Max. Current

10A

Max. Voltage

250V
