High Quality Guillotine QC11K 8X4000mm With E21S Shearing Machine
from
$12,000.00
Ex Tax: $12,000.00
3 or more $10,000.00
5 or more $9,680.00
- Stock: In Stock
- Model: SCJ006597
- SKU: SCJ006597
Products Sold: 0
Product Views: 133
Ask a Question About This Product
- Description
Products Description
HARSLE Guillotine Shearing Machine with E21S
QC11K Hydraulic Guillotine Shearing Machine with E21S adopts all-steel welded structure and comprehensive treatment (vibration aging, heat treatment) to eliminate internal stress, with good rigidity and stability. X axis(Backgauge) and cutting time can be programmed by E21S system controller, which can store up to 40 groups of programs. Advanced integrated hydraulic system with high reliability. Three points of support rolling guide are used to eliminate the support gap and improve the shearing quality. Blade gap adjustment by hand wheel or electric, quick, accurate and convenient. Rectangular blade with all four edges, long service life. Upper blade holder with inward tilting structure, easy to drop the material and improve the accuracy of the workpiece. Segmented shearing function with light alignment.
Product Details
E21S Controller
■ Backgauge(X axis ) movement control
■ Control AC motor or inverter
■ Intelligent and unilateral positioning
■ Work-piece counting function
■ Double programmable digital output
■ 40 programs stored, 25 steps per program
■ One key back-up/restore of parameters
■ Unit for mm/inch
■ Language for Chinese/English
■ Cutting angle adjustment
SIEMENS Motor
German famous brand motor improves the lifespan of the machine and keeps the machine working in low noise environment.
FIRST Pump
American world famous brand for hydraulic pump performs well and provides great power for the whole hydraulic system.
KACON Foot Switch
South Korea brand food switch is movable and can stop the machine anytime by the emergency button.
Front Arms
Roller ball is instACalled on the arm with ruler can reduce the abrasion and feeder the machine easily and accurately.
Open Door Power off Switch
The machine will stop immediately once worker opens the door electric cabinet.
Blade Clearance Adjustment
Adjust the cutting blades gap by motor according the cutting thickness of the metal sheet can get better cutting
performance.
Safety Fence
Protective guards on each side can protect the user during operation.
Cutting Blade
Upper blade with 4 cutting edges, bottom blade with 4 cutting edges.
HIWIN Ball Screw
Adjust Backgauge Up and Down

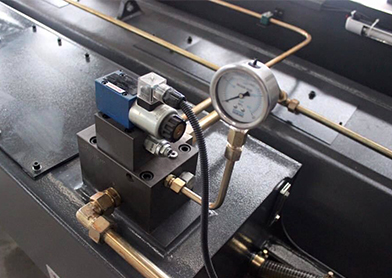

Rexroth Valve
World famous brand REXROTH, Sub-brand of BOSCH, which
is the professional hydraulic valve supplier.
Pneumatic Back Supporter(Optional)
Light Curtain(Optional)
Servo Motor(Optional)
Backgauge are controlled by servo motorwith bigh accuracy and fast speed.
Front Feeding Table(Optional)
World famous brand REXROTH, Sub-brand of BOSCH, which
is the professional hydraulic valve supplier.
Installation Instructions
No. | Item | Unit | Quantity(In total) |
1 | Cutting blade | set | 1 |
2 | Fromt support arms | piece | 3 |
3 | Foot switch | piece | 1 |
4 | O-ring and combination gasket | set | 1 |
5 | Foundation bolts | set | 1 |
6 | Oil gun | piece | 1 |
7 | Allen wrench | set | 1 |
8 | Nitrogen inflation tool | set | 1 |
9 | Operation Manual | copy | 1 |
Manufacturing Technique
Cutting
Lathe
Milling
Drilling
Welding
Boring
