SKL-12-A-D-2 Off-On Keylock Key Switch SPST 500mA 12V

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPST
Contact Rating	0.5A 24V
Current Rating	0.5A
Material	Zinc Alloy
Mounting Style	Panel Mount
Number of Positions	2
Panel Cut Out	12mm
Switch Operation	Off-On
Terminal Type	Solder
Voltage Rating	24VAC/DC

Description

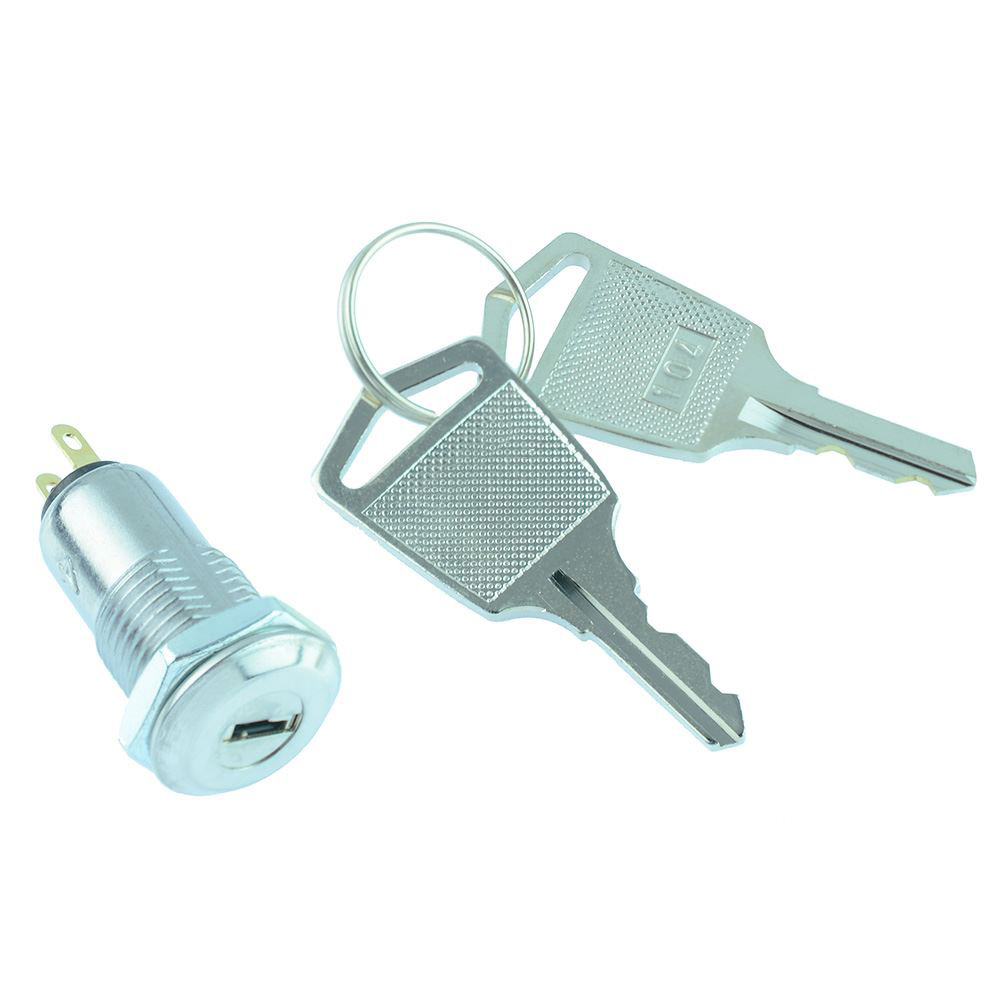

SKL-12-A-D-2 manufactured by socoje is a key lock switch featuring SPST contacts and different keys suitable for a wide range of electrical applications.

Off-On operation

SPST contacts

Different keys

'A' & 'B' position key withdrawal

Panel cut-out: 12mm

Rating: 0.5A 24Vac/dc

Key travel: 90dg

Stainless steel capped bezel

Chrome plated zinc alloy housing
