SMA Male RF Coaxial Connector, Flange Mount

SMA male RF coaxial connector is frequently employed in TV antenna jacks. Flange mount options offer flexibility in PCB circuit board applications. With a versatile design, the through wall RF connector ensures seamless signal transmission in electronic communication systems, making it an integral component in modern connectivity solutions.

Specification

• Model: SOCOJE-SAMP0713F04-M
• Frequency Range: DC~27GHz
• Standing Wave Ratio (VSWR): 1.15:1 (Max.)
• Impedance: 50 Ohm
• Insertion Loss: 0.25dB (Max.)
• Dielectric Withstand Voltage: 1000V
• Insulation Resistance: ≥5000 Ohm
• Connector Type A: SMA-Male
• Connector Type B: Media Through Wall
• Working Temperature: -55℃~+165℃
• Inner Conductor Material: Bronze Plated Gold Plated
• Outer Conductor Material: Stainless Steel Passivated
• Insulator: PTFE
• Service Life: ≥500

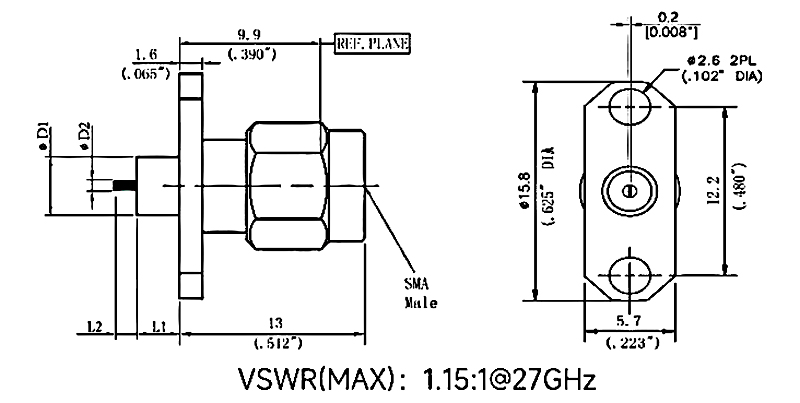

Dimension (Unit: mm)

Tips: Can RF connectors be used for high-power applications?

RF connectors can be used for high-power applications, but it's crucial to select the appropriate connector based on power levels and frequency requirements. Coaxial RF connectors are commonly employed in high-power applications, offering a reliable means of transmitting radio frequency signals. Connectors like N-type and 7/16 DIN are known for their robust design and can handle higher power levels compared to smaller connectors like SMA. The choice depends on factors such as frequency, power levels, and the specific application. It's essential to consider power handling capabilities, impedance matching, and connector durability to ensure efficient and safe transmission in high-power RF systems. Regular monitoring and maintenance are also recommended to prevent damage and ensure continued performance in demanding environments.
