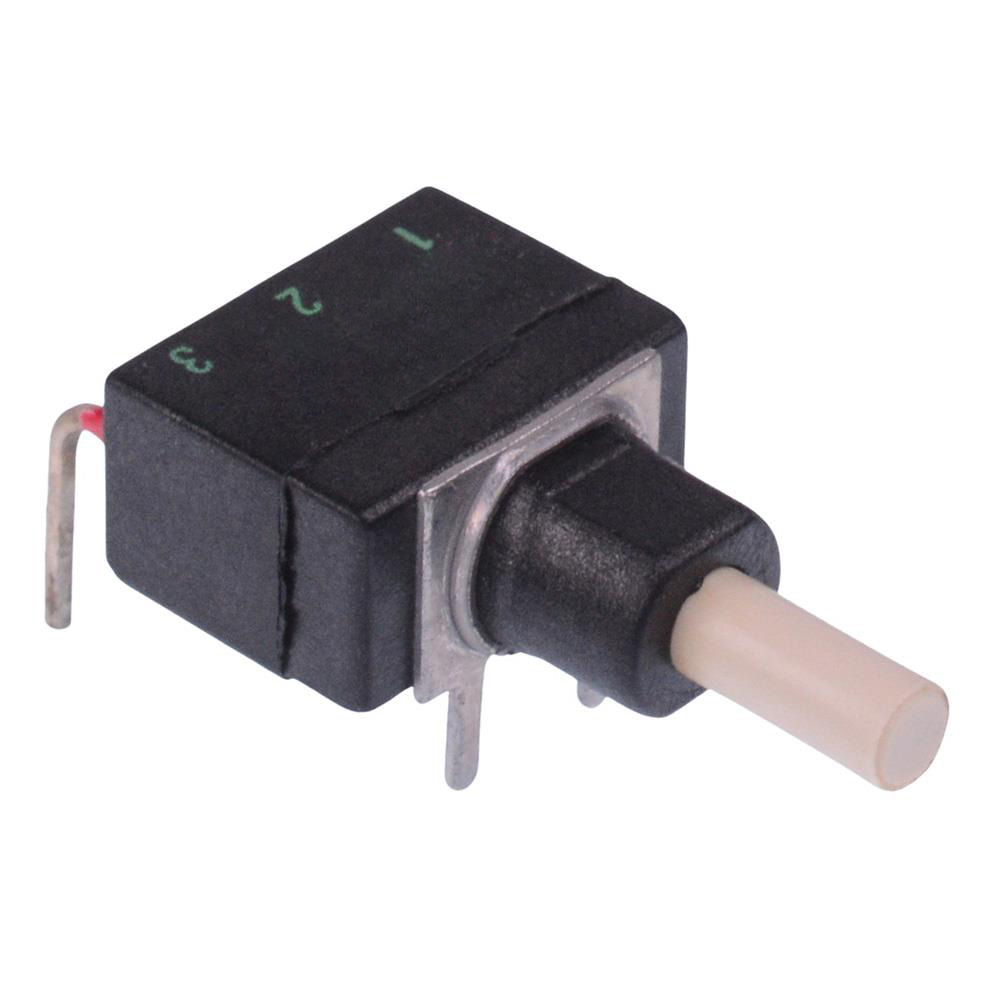

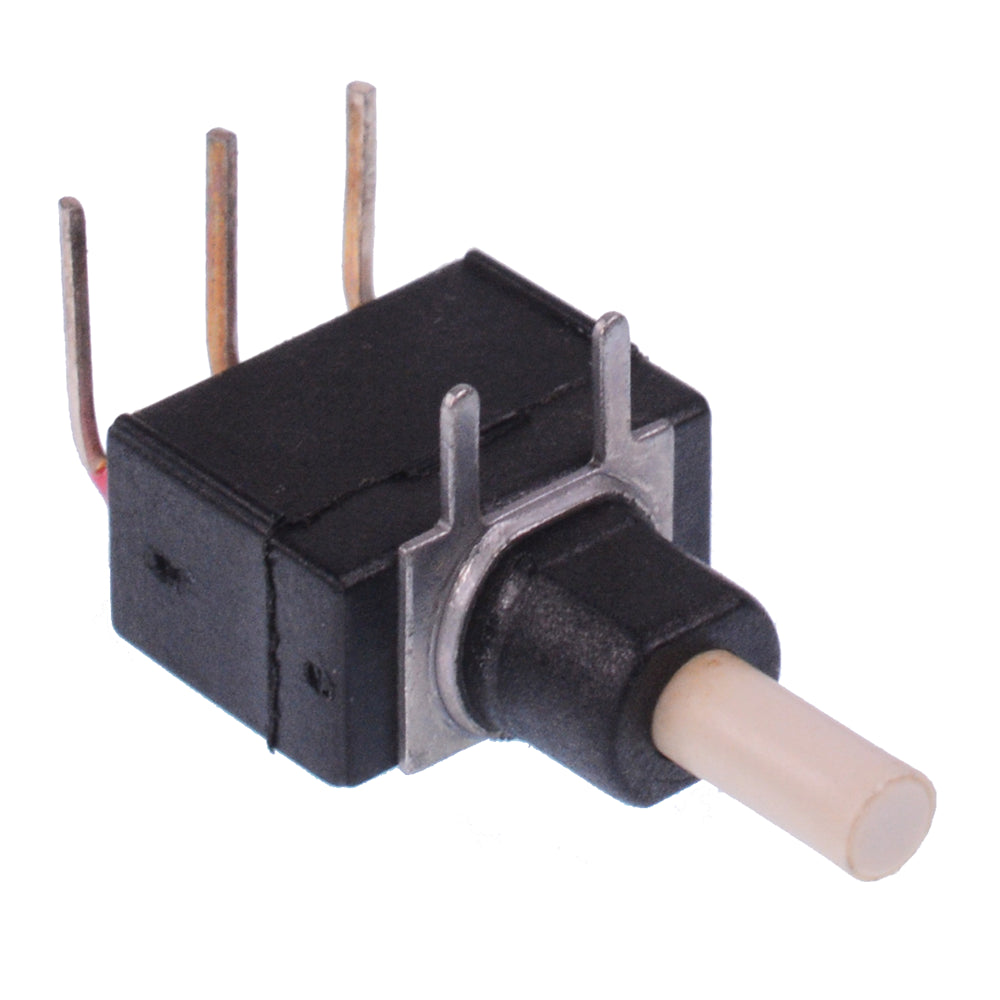

SP35W010000 Off-(On) Momentary Snap-Action Right Angle Push Button Switch SPST

SP35W010000 Off-(On) Momentary Snap-Action Right Angle Push Button Switch SPST 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPST
Contact Material	Silver
Contact Rating	1A 30VDC
Current Rating	1A
Illuminated	No
Electrical Life	60,000 Cycles
Mounting Style	PCB
Number of Poles	1
Number of Positions	2
Operating Temperature	-20°C to +85°C
Product Series	SP
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	30VDC

Description

The SP35W010000 is a washable momentary snap-action push button swich with front and rear sealing. The switch features right angle silver terminals, suitable for horizontal PCB mounting.

SPST contacts

Off-(On) momentary function

Right angle, horizontal mounting

Terminal pitch: 4.7mm

Rating: 1A 30VDC

Silver terminals
