SPST-NO Reed Switch 0.5A 230V

Buy Now

Specifications

Attributes List
Bounce Time	0.5ms
Diameter	2.6mm
Carry Current	0.8A
Length	18.5mm
Contact Configuration	SPST-NO
Maximum Switching Capacity	10W/VA
Maximum Switching Current	0.5A
Drop Out Sensitivity	10AT Min
Maximum Switching Voltage	230VAC/DC
Material	Rhodium
Pull In Sensitivity	20-50AT
Release Time	0.1ms
Operating Temperature	-40°C to +125°C

Description

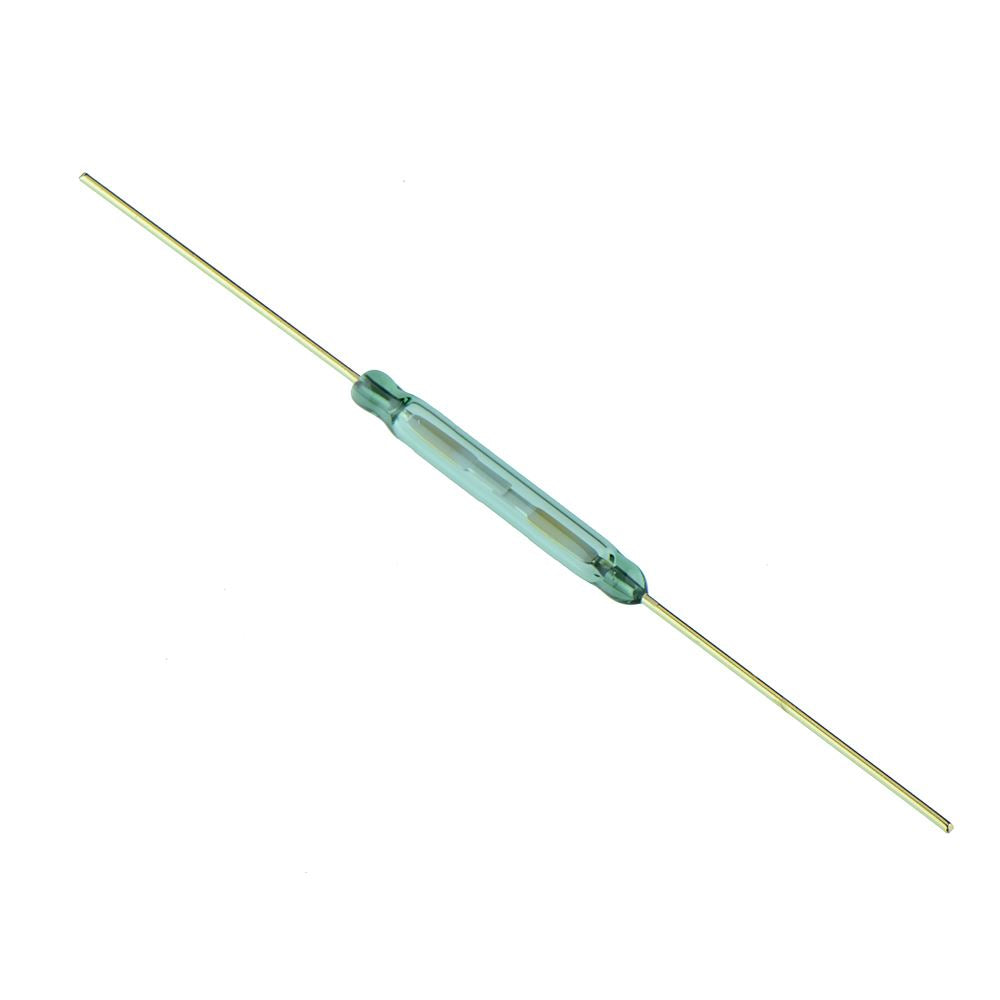

2206-2725-020 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

Normally open contacts

Maximum switching voltage: 230V AC/DC

Maximum switching current: 0.5A

Maximum switching power: 10VA

Pull-in sensitivity: 20-50AT
