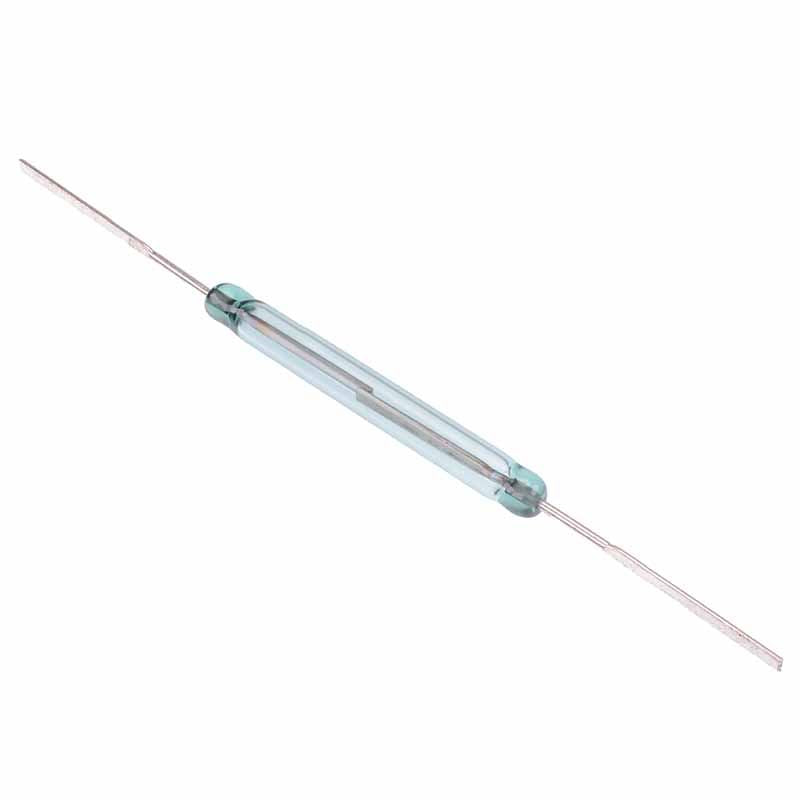

SPST-NO Reed Switch 0.5A 60VDC

Buy Now

Specifications

Attributes List
Bounce Time	0.8ms
Diameter	4mm
Carry Current	2A
Length	38mm
Contact Configuration	SPST-NO
Maximum Switching Current	0.5A
Drop Out Sensitivity	15AT Min
Maximum Switching Voltage	60VDC
Material	Rhodium
Pull In Sensitivity	50-80AT
Release Time	0.4ms
Operating Temperature	-10°C to +70°C

Description

Reed switch featuring 0.5A maximum switching current and NO contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.

Contacts: SPNO

Dimensions: 4 x 38mm (diameter x length)

Maximum switching voltage: 60VDC

Maximum switching current: 0.5A

Pull-In value: 50-80AT
