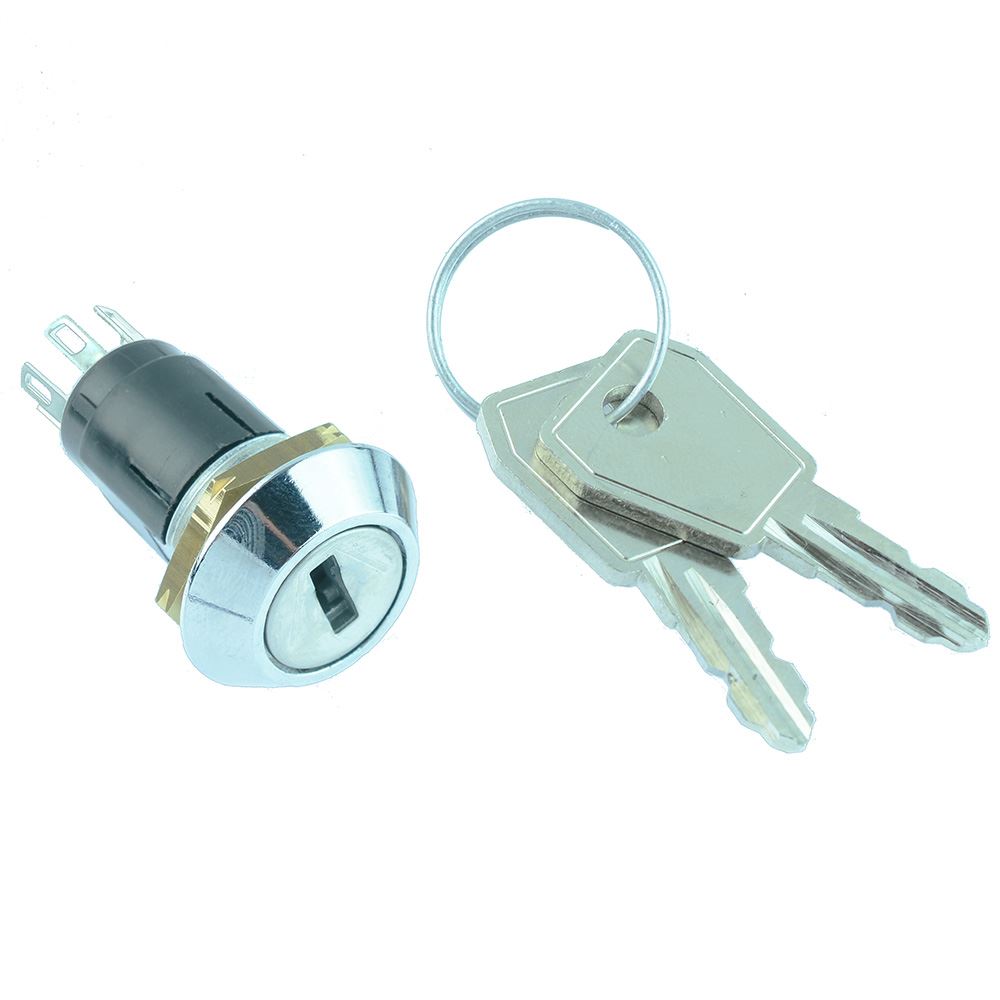

SRL-5-L-S-2 On-On Keylock Key Switch DPDT 1A 125V

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPDT
Contact Rating	1A 115Vac
Current Rating	1A
Material	Chrome Plated Zinc Alloy
Mounting Style	Panel Mount
Number of Positions	2
Operating Temperature	-20°C to +65°C
Panel Cut Out	13 x 16mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	115VAC

Description

SRL-5-L-S-2 manufactured by socoje is a key lock switch featuring DPDT contacts and same keys suitable for a wide range of electrical applications.

On-On operation

DPDT contacts

Same keys

Key withdrawal position: 1 & 3

Panel cut-out: 13 x 16mm

Rating: 1A 125Vac

Key travel: 90dg

Chrome plated zinc alloy housing
