2NC/1NO Safety Interlock Switch Standard Head HS5D-12RNM
from
$80.28
Ex Tax: $80.28
5 or more $71.45
10 or more $66.63
25 or more $62.61
50 or more $59.41
- Stock: In Stock
- Model: SCJ010059
- SKU: SCJ010059
Products Sold: 0
Product Views: 29
Ask a Question About This Product
- Description

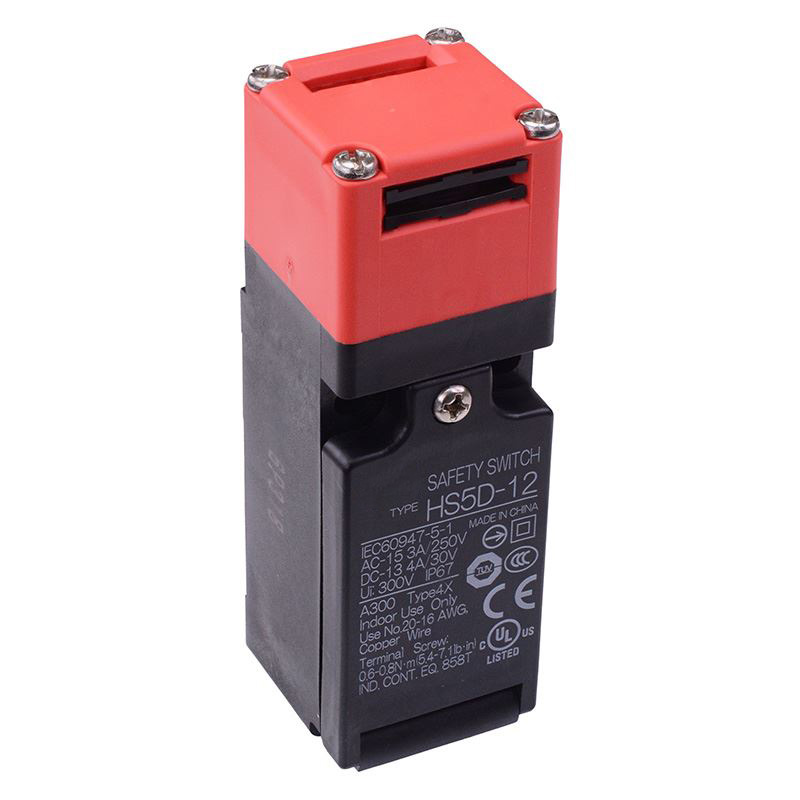

The HS5D-12RNM is a safety interlock switch head manufactured from plastic featuring 2NC and 1NO contacts. The switch features a compact package and easy wiring utilising the screw terminals. The head removal detection turns OFF the main circuit when the head is removed, such as when the head is rotated, providing enhanced safety.
1NO-2NC contacts M3 terminal screws Gold plated contacts suitable for small loads Interchangeable actuators Head orientation can be rotated, allowing 8 different actuator entries Double insulation structure eliminates the need for grounding IP67 protection level M20 cable gland connection Maximum current: 10A Maximum voltage: 250VAC, 30VDC Body dimensions: 91 x 30 x 30mm (height x width x depth)
