Black On-On Miniature Toggle Switch Locking Lever SPDT - 5236ADGB-2VX408
from
$23.09
Ex Tax: $23.09
5 or more $20.55
10 or more $19.17
25 or more $18.01
50 or more $17.09
- Stock: In Stock
- Model: SCJ014984
- SKU: SCJ014984
Products Sold: 0
Product Views: 37
Ask a Question About This Product
- Description

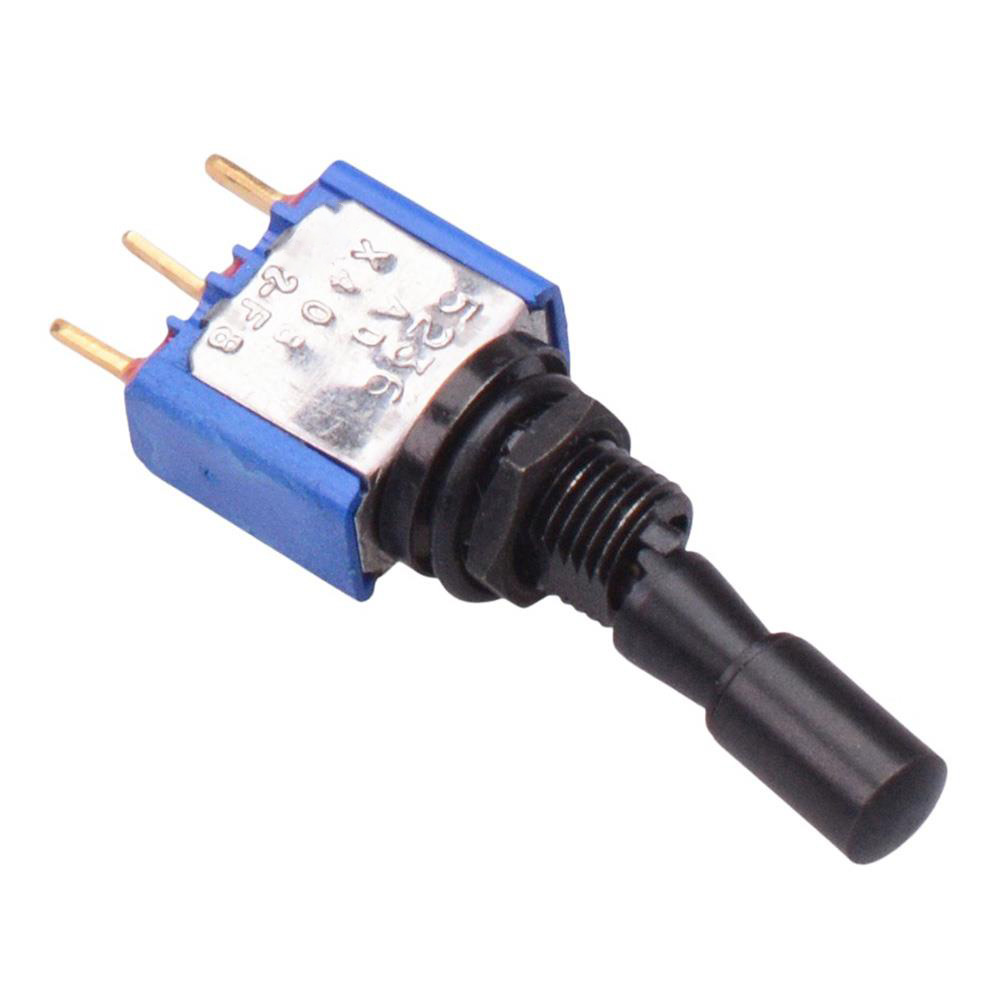

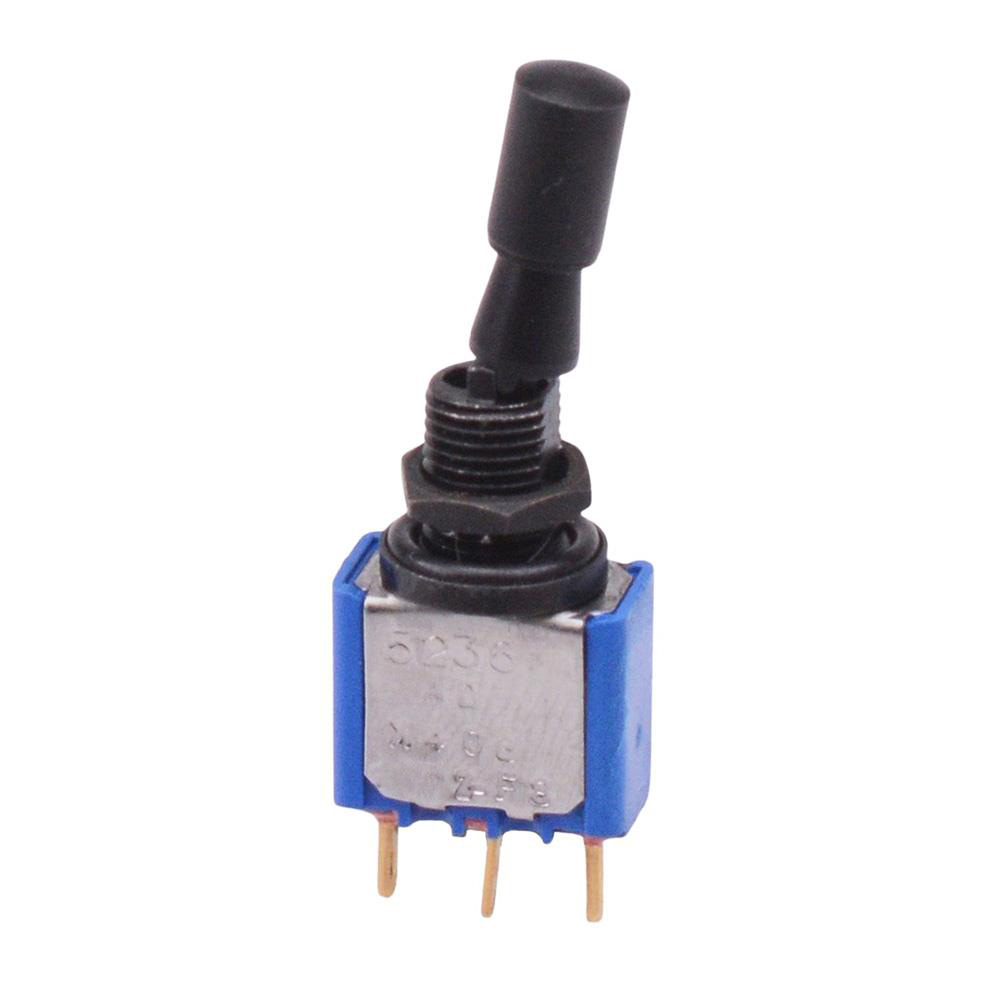

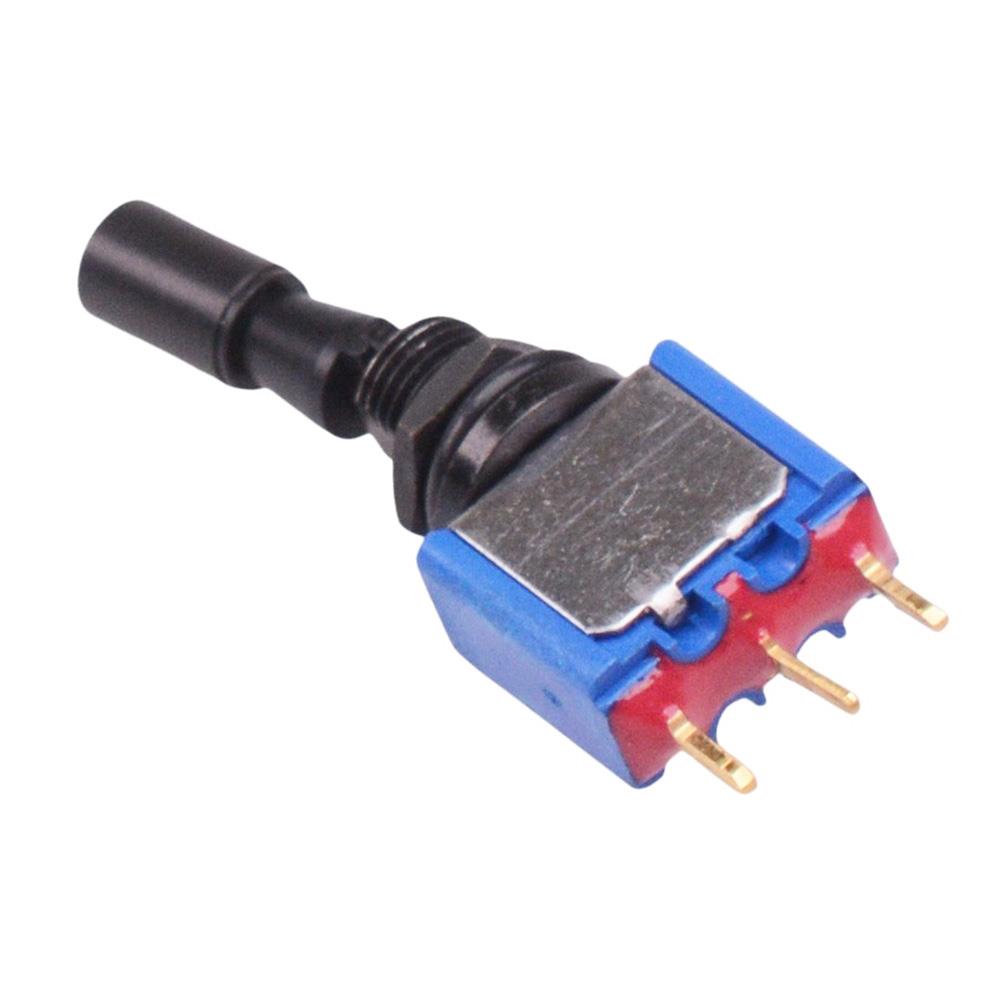

Black On-On Miniature Toggle Switch Locking Lever SPDT - 5236ADGB-2VX408
The 5236ADGB-2VX408 is a miniature toggle switch featuring On-On SPDT contacts, from the socoje 5000 series of switches. The switches feature PCB terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
PCB solder terminals Black finish Contact rating: 4A 30VDC Panel cut-out: 6.5mm 2 position locking lever Gold plated silver contacts Epoxy sealed terminals Front panel sealing by two O-rings 14.75mm length lever Terminal pitch: 4.7mm Body dimensions: 7.0 x 13.2 x 13.3mm (length x width x height) UL, CSA, CECC approved socoje 5000 series
