Amber 24V illuminated 22mm Metal Bezel Momentary Shrouded Push Button Switch 1NO-1NC IP65 YW4L-MF2E11Q4A

Amber 24V illuminated 22mm Metal Bezel Momentary Shrouded Push Button Switch 1NO-1NC IP65 YW4L-MF2E11Q4A
Amber 24V illuminated 22mm Metal Bezel Momentary Shrouded Push Button Switch 1NO-1NC IP65 YW4L-MF2E11Q4A
from
$32.63
Ex Tax: $32.63
5 or more $29.04
10 or more $27.08
25 or more $25.45
50 or more $24.14
  • Stock: In Stock
  • Model: SCJ012075
  • SKU: SCJ012075
Products Sold: 0
Product Views: 36
  • Specifications
Attributes List
ActuationMomentary
ColourAmber
Contact Configuration1NO-1NC
Head TypeExtended with Shroud
Contact Rating2A 380V, 6A 240V
Current Rating10A
IlluminatedYes
Electrical Life100,000 Cycles
Illumination ColourRed
Illumination Voltage24V
Mounting StylePanel
Number of Positions2
Protection LevelIP65
Operating Temperature-20°C to +55°C
Panel Cut Out22.3mm
Panel Thickness0.8-6mm
Product SeriesYW
Terminal TypeScrew
Voltage Rating600V
  • Description

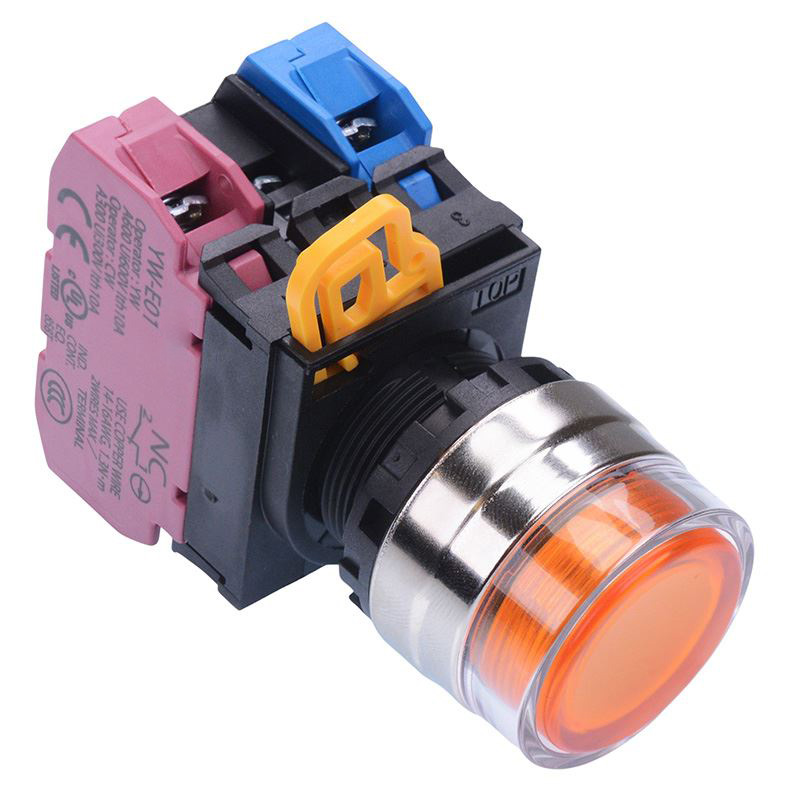

The YW4B-MF2E11Q4A is an illuminated amber momentary shrouded push button switch from the YW series manufactured by socoje. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.

  • Metal Bezel
  • 1NO-1NC contacts
  • 24V illumination
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 23.6mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
  • Amber 24V illuminated 22mm Metal Bezel Momentary Shrouded Push Button Switch 1NO-1NC IP65 YW4L-MF2E11Q4A
