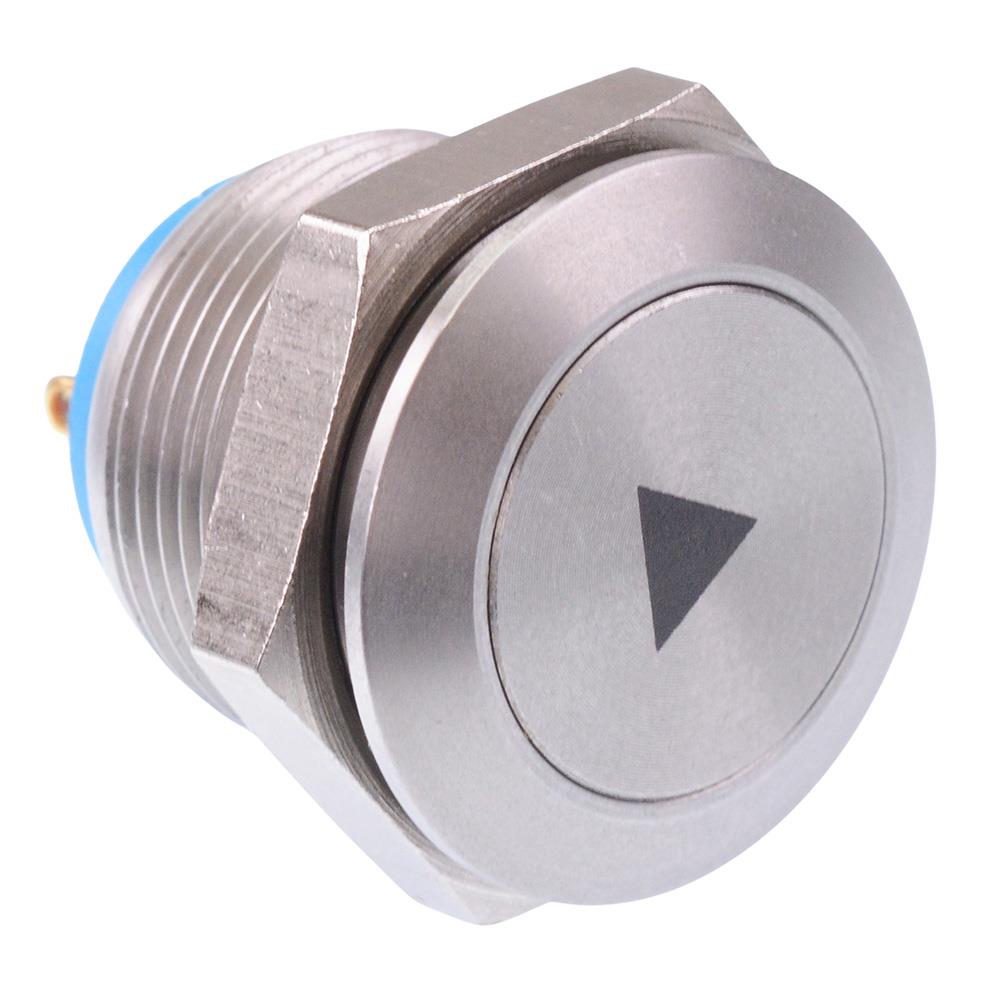

Arrow Off-(On) Momentary 19mm Flat Anti Vandal Push Button Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPST
Contact Rating	4A 12VDC
Current Rating	4A
Illuminated	No
Illumination Colour	Non Illuminated
Material	Stainless Steel
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to 70°C
Panel Cut Out	19.2mm
Panel Thickness	1-11mm
Product Series	AV
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	12VDC

Description

The AV09 is a 19mm anti vandal push button switch with momentary SPST-NO contacts and flat actuator. The switch features a stainless steel body and solder terminals making it suitable for applications requiring a reliable long-lasting switch including security and door entry.

SPST-NO contacts

Off-(On) momentary function

Panel cut-out: 19.2mm

Solder terminals

Rating: 4A 12VDC

Panel thickness: 1-11mm

Material: stainless steel
