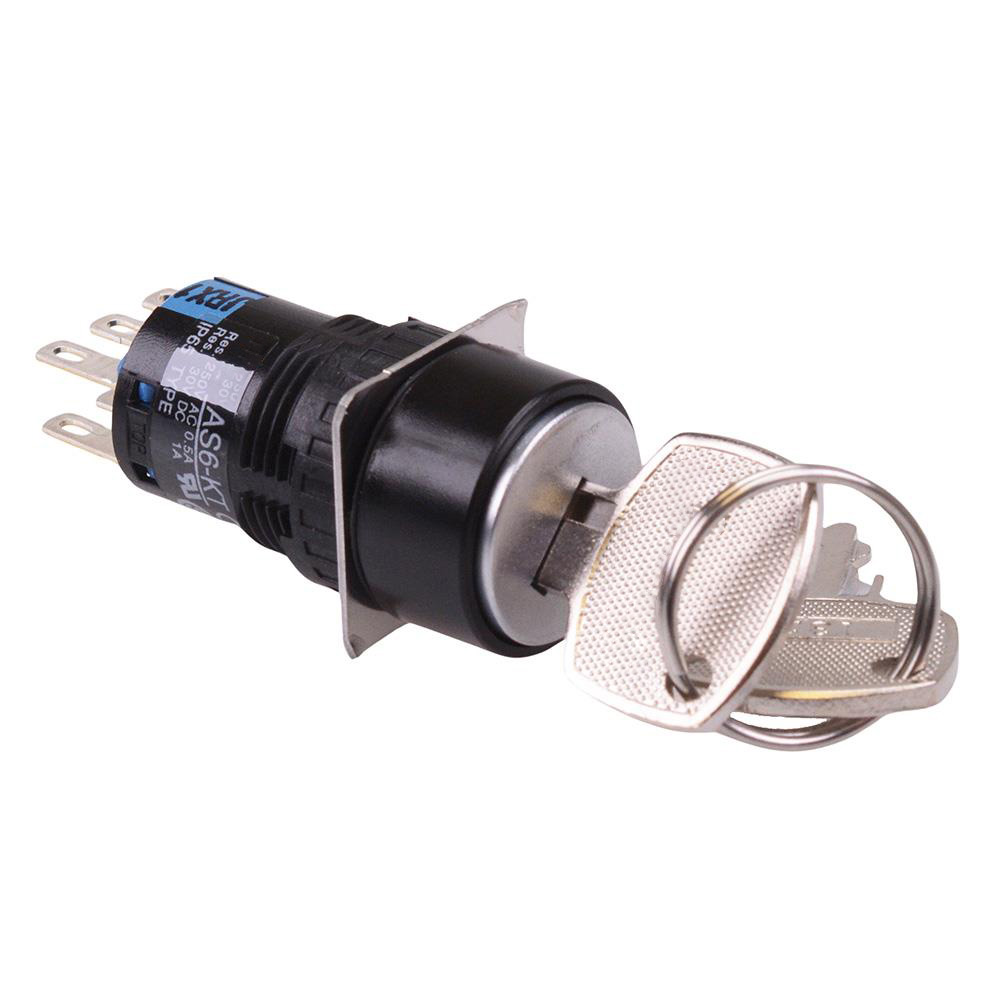

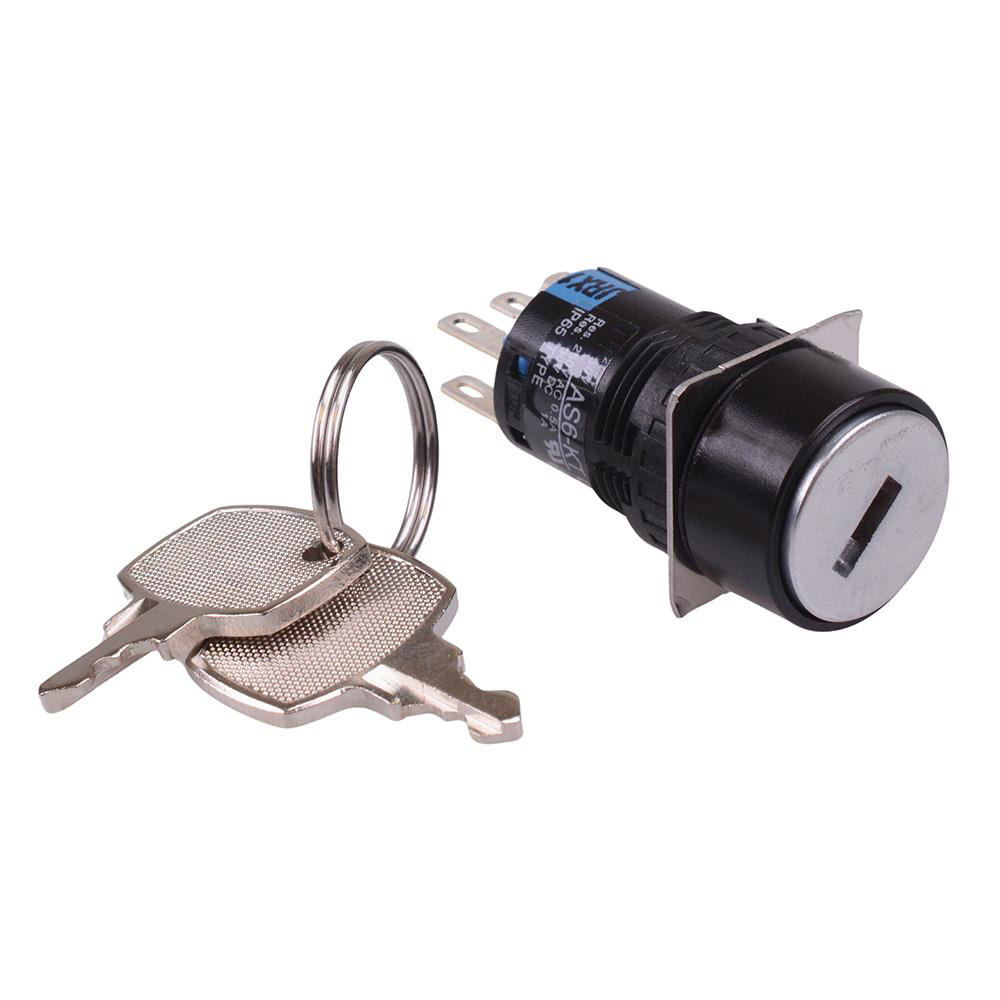

AS6M-2KT2PAC 2 Position 16mm Latching Key Switch DPDT

Buy Now

Specifications

Attributes List
Actuation	Latching
MOQ	1
Contact Configuration	DPDT
Head Type	Key
Contact Material	Gold Plated Silver
Contact Rating	3A 250V
Current Rating	3A
Illuminated	No
Electrical Life	50,000 Cycles
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +55°C
Panel Cut Out	16.2mm
Panel Thickness	6mm
Product Series	A6
Terminal Type	Solder
Voltage Rating	250V

Description

The AS6M-2KT2PAC is a 2 position latching light duty industrial key switch by socoje, featuring DPDT contacts and IP65 protection rating. The switch features a short 22mm body length and is suitable for 16.2mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation, use in factories and offices.

Latching operation
90° 2 positions
Key removable in both positions
DPDT contacts
IP65 protection rating
Contact rating: 3A 250V
Panel cut-out: 16.2mm
Panel thickness: 0.5-6mm
Solder terminals
Dimensions: 39 x 18mm (length x diameter)
