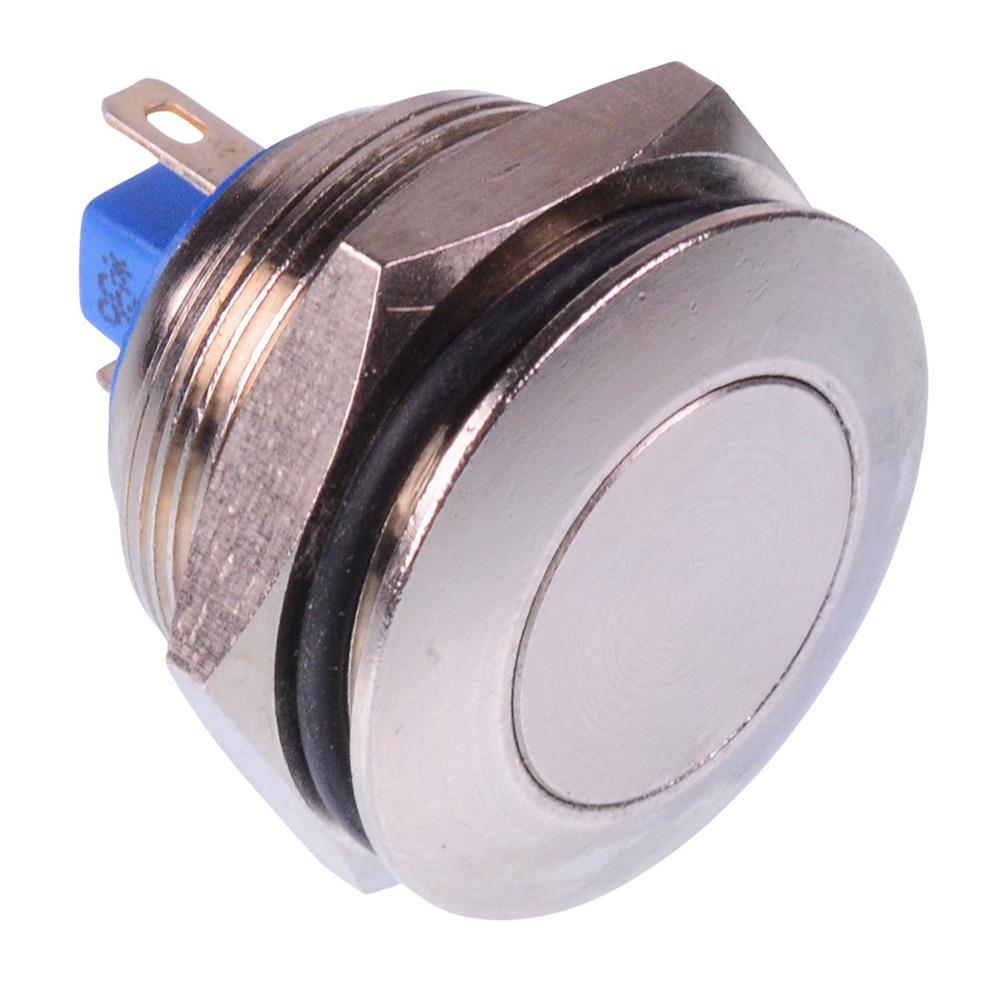

AV031003C200K Off-(On) Momentary 22mm Flat Anti Vandal Push Button Switch SPST

AV031003C200K Off-(On) Momentary 22mm Flat Anti Vandal Push Button Switch SPST
AV031003C200K Off-(On) Momentary 22mm Flat Anti Vandal Push Button Switch SPST
0 reviews - Write a review
from
$23.22
Ex Tax: $23.22
10 or more $20.66
25 or more $19.50
50 or more $18.35
100 or more $17.42
  • Stock: In Stock
  • Model: SCJ013857
  • SKU: SCJ013857
Products Sold: 0
Product Views: 34
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
Contact ConfigurationSPST
Contact Rating4A 12VDC
Current Rating4A
IlluminatedNo
Electrical Life500,000 Cycles
MaterialChrome Plated Brass
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP65
Operating Temperature-30°C to 70°C
Panel Cut Out22.2mm
Panel Thickness1-11mm
Product SeriesAV
Switch OperationOff-(On)
Terminal TypeQuick Connect
Voltage Rating12VDC
  • Description
The AV031003C200K is a 22mm anti vandal push button switch with momentary SPST-NO contacts and flat actuator. The switch features a chrome plated brass body and solder terminals making it suitable for applications requiring a reliable long-lasting switch including security.

  • SPST-NO contacts
  • Off-(On) momentary function
  • Solder lug/quick connect terminals
  • Protection level: IP65
  • Panel cut-out: 22.2mm
  • Rating: 4A 12VDC
  • Panel thickness: 1-11mm
  • Material: chrome plated brass

    • AV031003C200K Off-(On) Momentary 22mm Flat Anti Vandal Push Button Switch SPST
