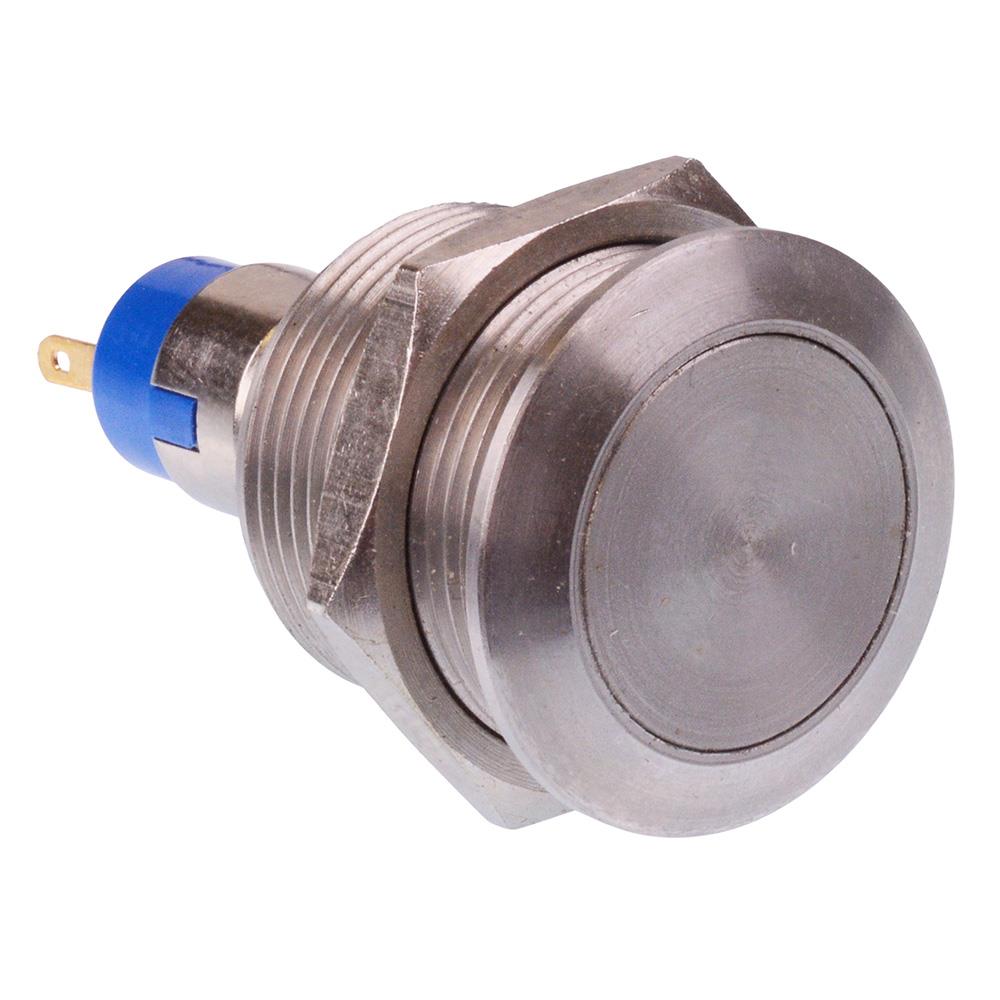

AV099633D200K Off-(On) Momentary 19mm Anti Vandal Push Button Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPST
Contact Rating	2A 48VDC
Current Rating	2A
Illuminated	No
Material	Nickel Plated Brass
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to +70°C
Panel Cut Out	19.2mm
Panel Thickness	1-11mm
Product Series	AV
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	48VDC

Description

The AV099633D200K is a 19mm momentary anti vandal push button switch featuring SPST contacts and solder terminals. The switch is suitable for a wide range of applications.

Off-(On) momentary function

SPST contacts

Nickel plated brass body

Panel cut-out: 19.2mm

Solder terminals

Rating: 2A 48VDC

Dimensions: 41 x 22mm (length x diameter)
